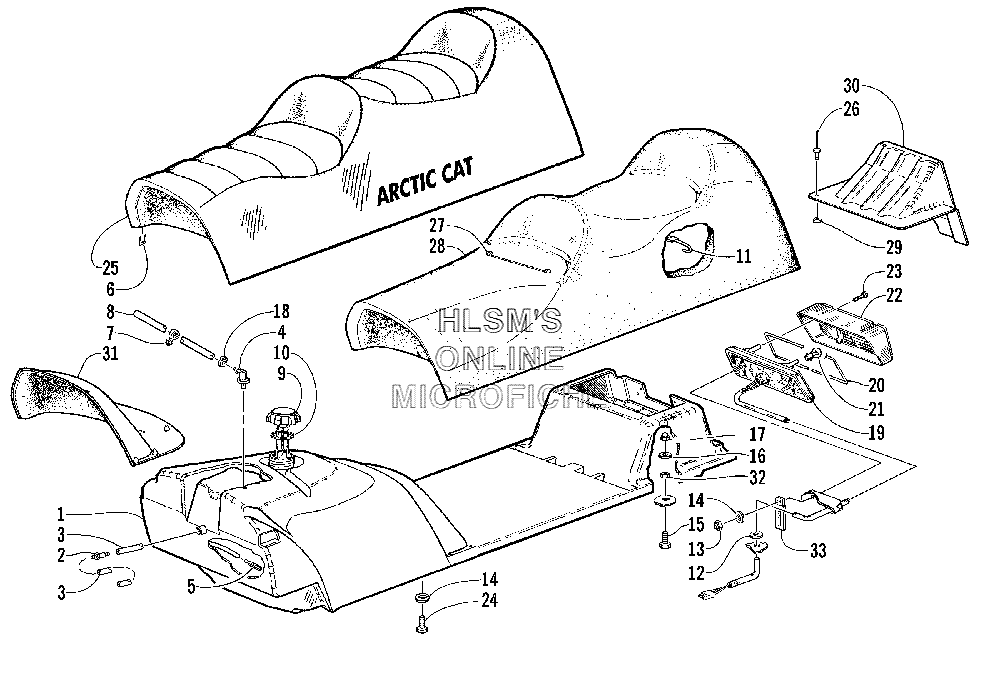

GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY для Arctic Cat PANTHER 440 - 2001 года выпуска
-
№АртикулНазвание
-
-0718-943 SEAT ASSEMBLYSEAT ASSEMBLY
-
10770-500 TANK, GAS/SEAT-BASE (INC 2-5)TANK, GAS/SEAT-BASE (INC 2-5)
-
20670-042 OUTLET, TANKOUTLET, TANK
-
30610-017 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
30610-008 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
40670-572 VENT, GAS TANKVENT, GAS TANK
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
60624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
70623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
80610-016 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
80610-015 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
90670-658 CAP, GAS TANK (INC 10)CAP, GAS TANK (INC 10)
-
100109-733 SEAL, GAS CAPSEAL, GAS CAP
-
111606-150 WIRE, SEATWIRE, SEAT
-
120617-136 SEAL, FOAM - SEAT-BASESEAL, FOAM - SEAT-BASE
-
130623-038 NUT W/WASHERNUT W/WASHER
-
148050-217 WASHERWASHER
-
158002-040 SCREW, CAPSCREW, CAP
-
160623-184 WASHERWASHER
-
170123-108 NUT, CAPNUT, CAP
-
180623-063 CLAMP, HOSECLAMP, HOSE
-
190609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
200609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
210109-460 BULBBULB
-
220609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
230609-093 SCREW, RETAININGSCREW, RETAINING
-
240623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
251706-223 COVER, SEATCOVER, SEAT
-
260623-853 RIVETRIVET
-
270606-057 WIRE, SEATWIRE, SEAT
-
280716-991 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
290123-149 WASHERWASHER
-
301606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
311606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
328041-366 NUT, LOCKNUT, LOCK
-
333002-964 CLAMP, WIRECLAMP, WIRE
