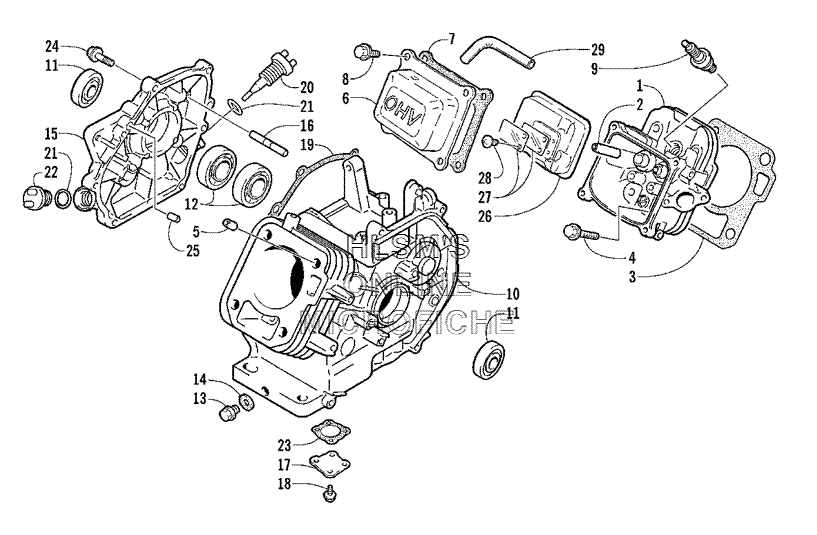

CYLINDER AND CRANKCASE для Arctic Cat Z 120 SNO PRO - 2001 года выпуска
-
№АртикулНазвание
-
10691-384 HEAD, CYLINDER (INC 2)HEAD, CYLINDER (INC 2)
-
20691-545 GUIDE, VALVEGUIDE, VALVE
-
30691-386 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
40693-303 BOLTBOLT
-
53008-199 PIN, DOWELPIN, DOWEL
-
60691-830 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
70691-387 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
80693-241 BOLTBOLT
-
90217-703 PLUG, SPARKPLUG, SPARK
-
100694-001 CYLINDER ASSEMBLY (INC 11-14)CYLINDER ASSEMBLY (INC 11-14)
-
110691-376 SEAL, OILSEAL, OIL
-
120691-374 BEARINGBEARING
-
130693-253 PLUGPLUG
-
143002-276 GASKETGASKET
-
150694-002 COVER, CRANKCASE - ASSEMBLY - SIDE (INC 12,13 AND 16)COVER, CRANKCASE - ASSEMBLY - SIDE (INC 12,13 AND 16)
-
160691-844 SHAFT, GOVERNOR GEARSHAFT, GOVERNOR GEAR
-
170694-022 COVER, OIL LEVEL SENSORCOVER, OIL LEVEL SENSOR
-
180693-307 BOLTBOLT
-
190691-834 GASKET, CRANKCASEGASKET, CRANKCASE
-
200694-003 GAUGE, ENGINE OIL LEVEL - ASSEMBLY (INC 21)GAUGE, ENGINE OIL LEVEL - ASSEMBLY (INC 21)
-
210693-298 O-RINGO-RING
-
220694-004 PLUG, ENGINE OIL DRAIN - ASSEMBLY (INC 21)PLUG, ENGINE OIL DRAIN - ASSEMBLY (INC 21)
-
230691-837 GASKET, ENGINE OIL LEVEL SENSORGASKET, ENGINE OIL LEVEL SENSOR
-
240693-243 BOLTBOLT
-
253005-206 PIN, DOWELPIN, DOWEL
-
260691-393 BODY, AIR BREATHER - ASSEMBLY (INC 27-28)BODY, AIR BREATHER - ASSEMBLY (INC 27-28)
-
270693-226 VALVE, REED - SETVALVE, REED - SET
-
280693-305 SCREWSCREW
-
290693-362 HOSE, AIR BREATHERHOSE, AIR BREATHER
