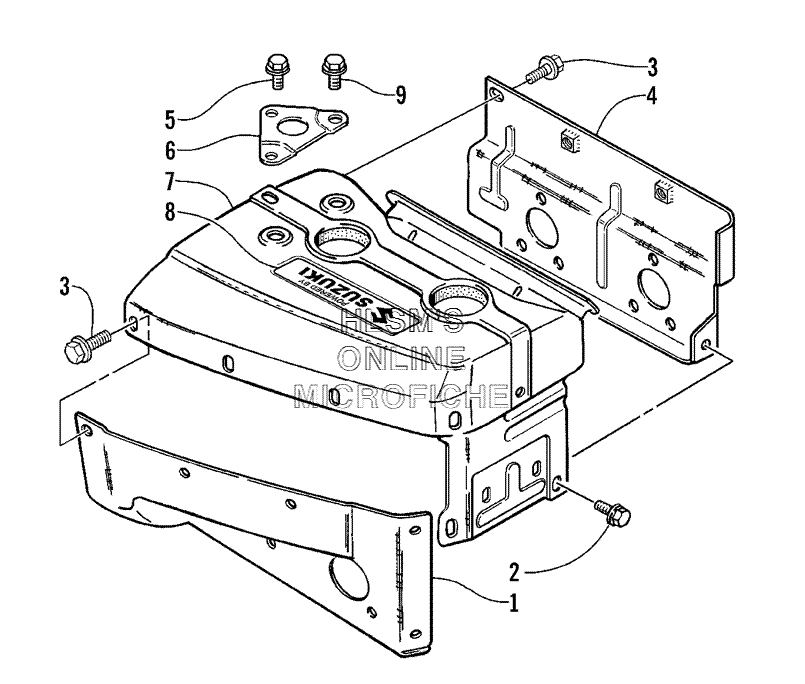

CYLINDER COWLING для Arctic Cat Z 440 (ES) - 2001 года выпуска
-
№АртикулНазвание
-
13002-851 COWLING, FRONTCOWLING, FRONT
-
23004-338 SCREW, CAPSCREW, CAP
-
33004-580 SCREW, CAPSCREW, CAP
-
43002-852 COWLING, REARCOWLING, REAR
-
53004-377 SCREW, CAPSCREW, CAP
-
63005-009 BRACKET, COOLING FAN CASEBRACKET, COOLING FAN CASE
-
73005-010 COWLING, UPPERCOWLING, UPPER
-
81611-588 DECAL, ''POWERED BY''DECAL, ''POWERED BY''
-
93004-995 SCREW, CAPSCREW, CAP
