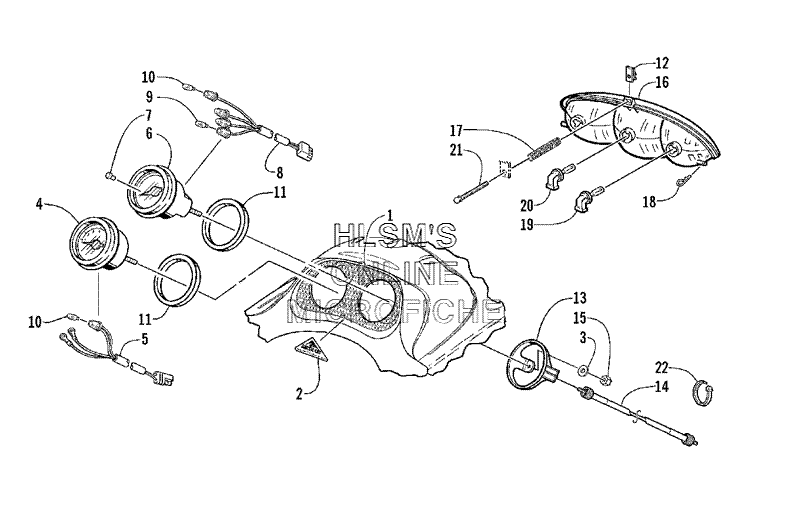

HEADLIGHT AND INSTRUMENTS для Arctic Cat Z 440 SNO PRO (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
14611-075 DECAL, INSTRUMENT - HOODDECAL, INSTRUMENT - HOOD
-
23611-611 DECAL, ''MADE IN U.S.A.'' - DOMEDDECAL, ''MADE IN U.S.A.'' - DOMED
-
38050-212 WASHERWASHER
-
40620-237 TACHOMETER (INC 5 AND ONE NO 10)TACHOMETER (INC 5 AND ONE NO 10)
-
50620-215 HARNESS, TACHOMETER BULBHARNESS, TACHOMETER BULB
-
60620-238 SPEEDOMETER (INC 7-9 AND ONE NO 10)SPEEDOMETER (INC 7-9 AND ONE NO 10)
-
70620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
80620-151 HARNESS, SPEEDOMETER BULBHARNESS, SPEEDOMETER BULB
-
90620-149 BULB, WARNING/INDICATORBULB, WARNING/INDICATOR
-
100230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
110620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
120623-757 NUT, UNUT, U
-
130620-134 BACKCLAMP, TACHOMETER/SPEEDOMETERBACKCLAMP, TACHOMETER/SPEEDOMETER
-
140620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
150623-038 NUT W/LOCK WASHERNUT W/LOCK WASHER
-
160609-250 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
170623-466 SPRING, ADJUSTER - HEADLIGHTSPRING, ADJUSTER - HEADLIGHT
-
180623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
190609-251 BULB, HEADLIGHT - HIGH BEAMBULB, HEADLIGHT - HIGH BEAM
-
200609-252 BULB, HEADLIGHT - LOW BEAMBULB, HEADLIGHT - LOW BEAM
-
210623-467 SCREW, THUMBSCREW, THUMB
-
220123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
