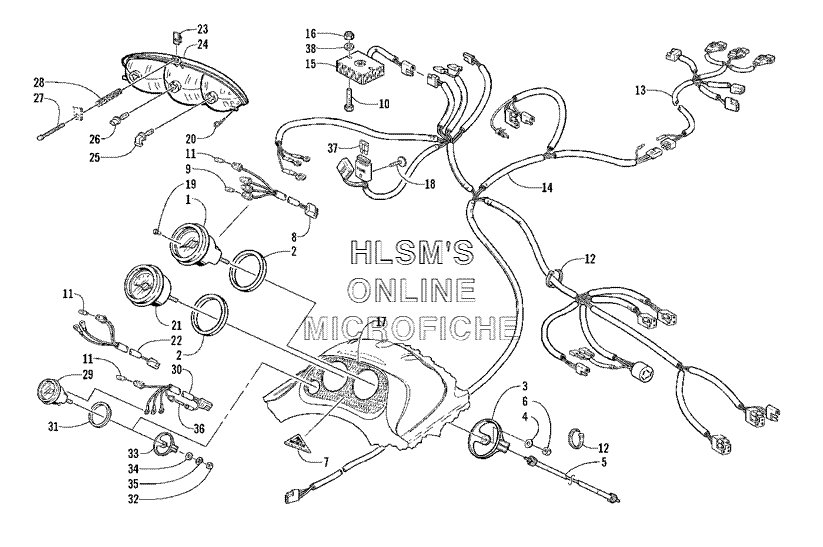

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat ZL 500 EFI ESR - 2001 года выпуска
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC 8,11 AND 19)SPEEDOMETER (INC 8,11 AND 19)
-
20620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
30620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
48050-212 WASHERWASHER
-
50620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
60623-038 NUT W/WASHERNUT W/WASHER
-
73611-611 DECAL, ''MADE IN U.S.A.'' - DOMEDDECAL, ''MADE IN U.S.A.'' - DOMED
-
80620-151 HARNESS, BULB - SPEEDOMETERHARNESS, BULB - SPEEDOMETER
-
90620-149 BULB, INDICATORBULB, INDICATOR
-
108002-045 SCREW, CAPSCREW, CAP
-
110230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
120123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
130686-588 HARNESS, HOODHARNESS, HOOD
-
140686-688 HARNESS, MAINHARNESS, MAIN
-
150630-143 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
168041-366 NUT, LOCKNUT, LOCK
-
173611-490 DECAL, INSTRUMENT - HOODDECAL, INSTRUMENT - HOOD
-
180623-589 CLIP, RETAININGCLIP, RETAINING
-
190620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
200623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
210620-237 TACHOMETER (INC 22)TACHOMETER (INC 22)
-
220620-215 HARNESS, TACHOMETERHARNESS, TACHOMETER
-
230623-757 NUT, UNUT, U
-
240609-250 LENS/REFLECTOR - HEADLIGHTLENS/REFLECTOR - HEADLIGHT
-
250609-251 BULB, HEADLIGHT - HIGH BEAMBULB, HEADLIGHT - HIGH BEAM
-
260609-252 BULB, HEADLIGHT - LOW BEAMBULB, HEADLIGHT - LOW BEAM
-
270623-467 SCREW, THUMBSCREW, THUMB
-
280623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
290620-240 GAUGE, FUEL (INC 30 AND 36)GAUGE, FUEL (INC 30 AND 36)
-
300620-218 HARNESS, FUEL GAUGE (INC 36)HARNESS, FUEL GAUGE (INC 36)
-
310620-139 RINGRING
-
320623-839 NUTNUT
-
330620-138 BACKCLAMPBACKCLAMP
-
348050-122 WASHERWASHER
-
358051-122 WASHER, LOCKWASHER, LOCK
-
360630-025 FUSE, 0.5 AMPFUSE, 0.5 AMP
-
370630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
388050-217 WASHERWASHER
