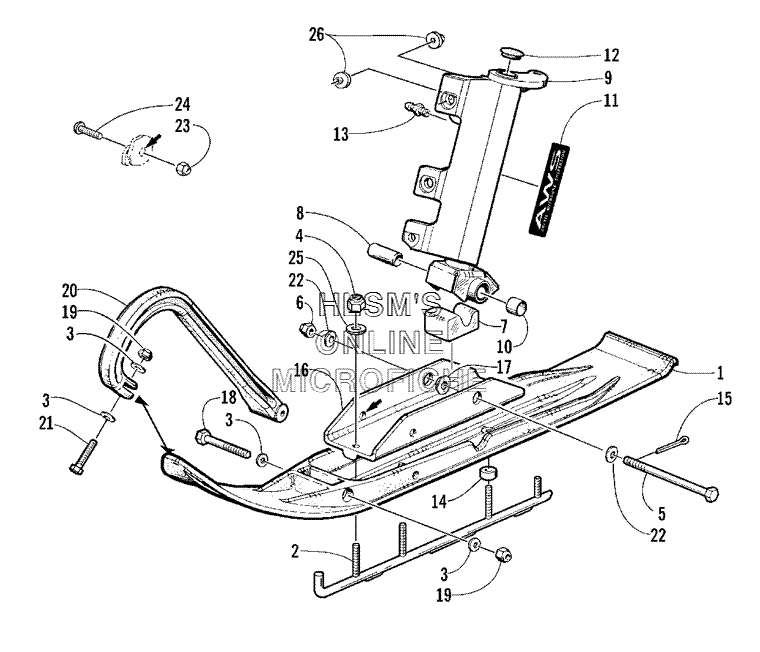

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZL 500 EFI ESR - 2001 года выпуска
-
№АртикулНазвание
-
10703-595 SKI, PLASTICSKI, PLASTIC
-
20703-706 WEARBARWEARBAR
-
38050-247 WASHERWASHER
-
48040-486 NUT, LOCKNUT, LOCK
-
50623-552 SCREW, CAPSCREW, CAP
-
60123-296 NUT, LOCKNUT, LOCK
-
70603-036 DAMPER, SKIDAMPER, SKI
-
80603-034 AXLE, SPINDLEAXLE, SPINDLE
-
90703-648 SPINDLE, STEERING - RIGHT (INC 10,13 AND 26)SPINDLE, STEERING - RIGHT (INC 10,13 AND 26)
-
90703-649 SPINDLE, STEERING - LEFT (INC 10,13 AND 26)SPINDLE, STEERING - LEFT (INC 10,13 AND 26)
-
100603-158 BEARINGBEARING
-
113611-858 DECAL, ''AWS'' - SPINDLEDECAL, ''AWS'' - SPINDLE
-
120603-049 CAP, SPINDLECAP, SPINDLE
-
130623-010 FITTING, GREASEFITTING, GREASE
-
140603-616 SPACERSPACER
-
150123-458 PIN, COTTERPIN, COTTER
-
160703-596 SADDLE, SKI (INC 17)SADDLE, SKI (INC 17)
-
170603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
188002-143 SCREW, CAPSCREW, CAP
-
198041-426 NUT, LOCKNUT, LOCK
-
200603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
218002-135 SCREW, CAPSCREW, CAP
-
220623-728 WASHERWASHER
-
238041-366 NUT, LOCKNUT, LOCK
-
248017-581 SCREW, MACHINESCREW, MACHINE
-
258050-277 WASHERWASHER
-
260603-647 INSERT, SPINDLEINSERT, SPINDLE
