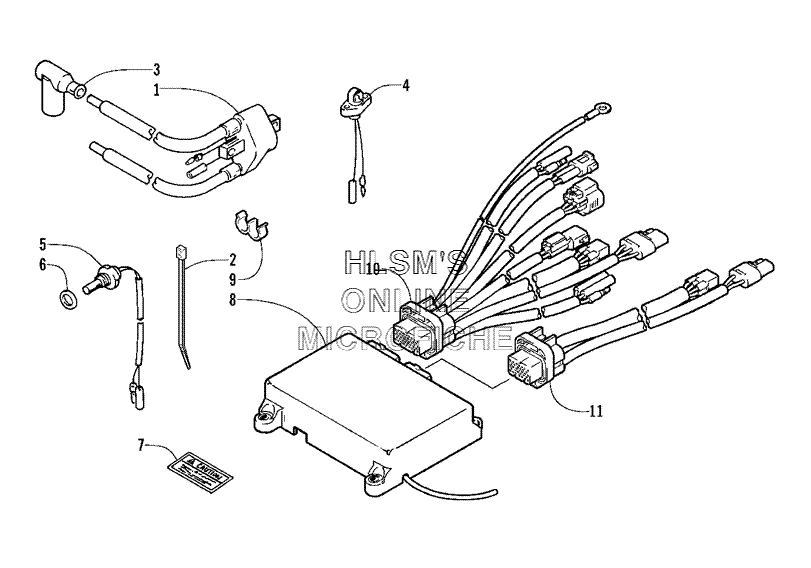

ELECTRICAL для Arctic Cat ZL 600 EFI - 2001 года выпуска
-
№АртикулНазвание
-
13005-381 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
23005-237 CLAMPCLAMP
-
33003-737 CAP, SPARK PLUGCAP, SPARK PLUG
-
43005-460 SENSOR, TEMPERATURESENSOR, TEMPERATURE
-
53005-462 SENSOR, COOLANTSENSOR, COOLANT
-
63005-233 WASHER, COOLANT SENSORWASHER, COOLANT SENSOR
-
72611-755 DECAL, CAUTION - ''HOT SURFACE''DECAL, CAUTION - ''HOT SURFACE''
-
83005-766 ECU - CIRCLEECU - CIRCLE
-
83005-767 ECU - SQUAREECU - SQUARE
-
83005-768 ECU - TRIANGLEECU - TRIANGLE
-
93005-387 CLAMPCLAMP
-
103005-906 HARNESS, ECUHARNESS, ECU
-
113005-907 HARNESS, APVHARNESS, APV
