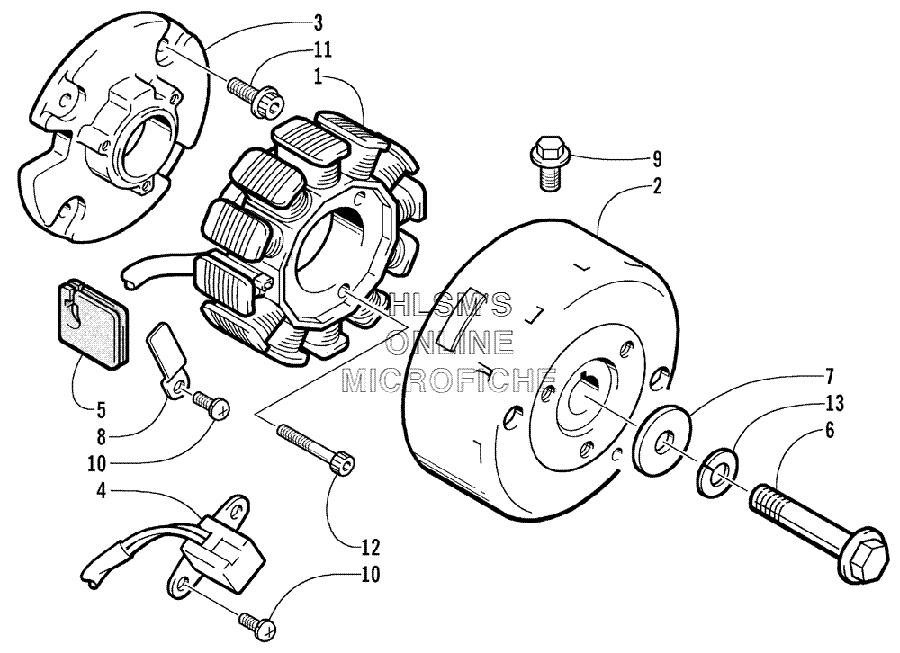

MAGNETO для Arctic Cat ZL 800 (ESR) - 2001 года выпуска
-
№АртикулНазвание
-
13005-784 STATOR ASSY.STATOR ASSY.
-
23005-887 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33005-888 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
43005-889 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
53005-775 GROMMET, MAGNETO LEAD WIREGROMMET, MAGNETO LEAD WIRE
-
63005-713 BOLTBOLT
-
73008-017 WASHERWASHER
-
83002-317 CLAMPCLAMP
-
93004-338 BOLTBOLT
-
103004-706 SCREWSCREW
-
113004-378 BOLTBOLT
-
123005-433 BOLTBOLT
-
133004-362 WASHER, LOCKWASHER, LOCK
