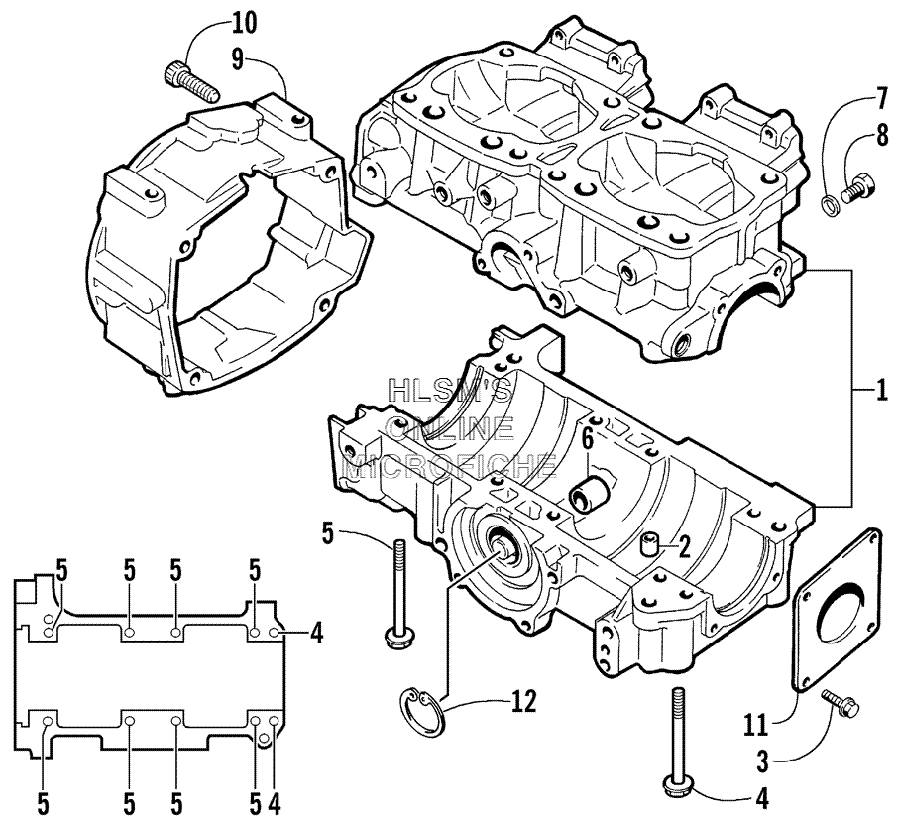

CRANKCASE ASSY. для Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY - INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
13005-723 CRANKCASE ASSY. (INC. 2, 6)CRANKCASE ASSY. (INC. 2, 6)
-
23005-206 PIN, DOWELPIN, DOWEL
-
33004-377 BOLT, OIL SEAL PLATEBOLT, OIL SEAL PLATE
-
43005-410 BOLTBOLT
-
53005-411 BOLTBOLT
-
63003-647 BUSHING, OIL PUMP INLET SHAFTBUSHING, OIL PUMP INLET SHAFT
-
73002-276 GASKETGASKET
-
83002-028 PLUG, CRANKCASEPLUG, CRANKCASE
-
93003-945 CASE, MAGNETOCASE, MAGNETO
-
103004-502 BOLT, MAGNETO CASEBOLT, MAGNETO CASE
-
113004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
123004-009 CIRCLIPCIRCLIP
