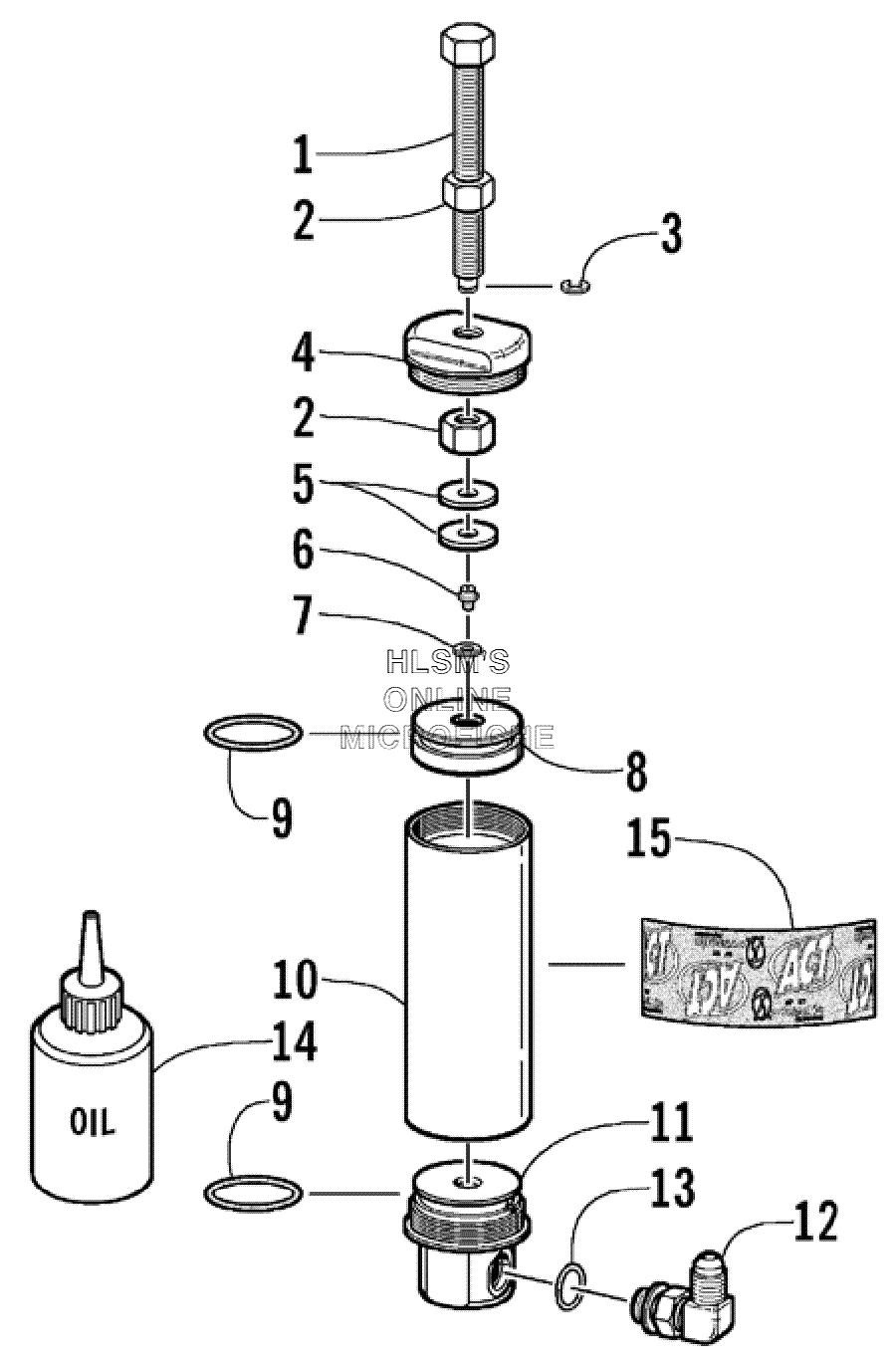

EASY-ADJUST ASSY. для Arctic Cat ZR 440 SNO PRO (SNO-CROSS - INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
-0704-649 COMPLETE ASSY.COMPLETE ASSY.
-
11604-895 BOLT, ADJUSTINGBOLT, ADJUSTING
-
21604-896 NUTNUT
-
31604-901 RING, RETAININGRING, RETAINING
-
41604-899 COVER, ADJUSTERCOVER, ADJUSTER
-
51604-902 WASHERWASHER
-
61603-553 SCREW, BLEEDSCREW, BLEED
-
71603-552 SEAL, SELF (CENTER)INGSEAL, SELF (CENTER)ING
-
81604-904 PISTONPISTON
-
91604-881 O-RING, COVERO-RING, COVER
-
101604-898 BODY, ADJUSTERBODY, ADJUSTER
-
111604-897 COVER, ADJUSTERCOVER, ADJUSTER
-
121604-909 FITTING, ELBOW 90° (INC. 13)FITTING, ELBOW 90° (INC. 13)
-
131604-284 O-RINGO-RING
-
141639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
154611-261 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
