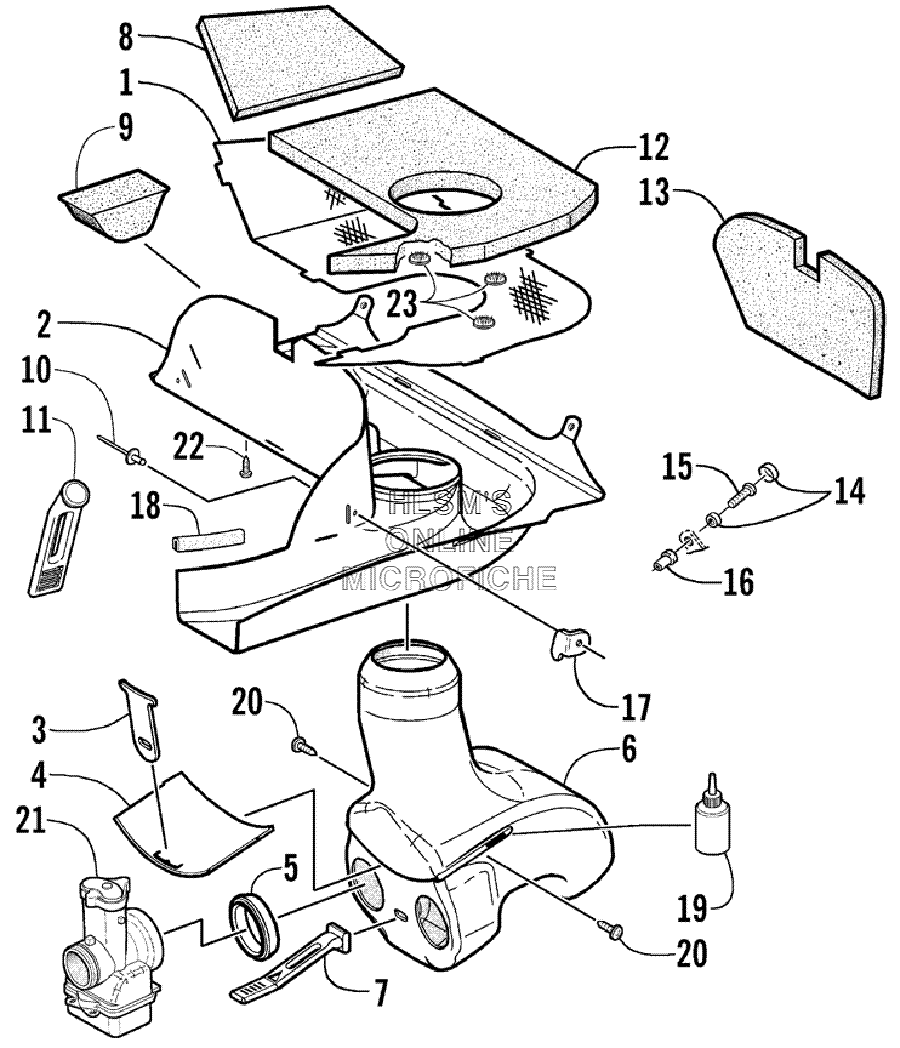

AIR SILENCER ASSY. для Arctic Cat ZR 440 SNO PRO (SNO-CROSS - USA) - 2001 года выпуска
-
№АртикулНазвание
-
12606-100 SCREEN, AIR INTAKESCREEN, AIR INTAKE
-
22606-040 AIR INTAKE, HOODAIR INTAKE, HOOD
-
31670-164 PLATE, RETAINING, BAFFLEPLATE, RETAINING, BAFFLE
-
41670-144 BAFFLE, AIR SILENCERBAFFLE, AIR SILENCER
-
50670-820 BOOT, CARBURETORBOOT, CARBURETOR
-
60770-469 SILENCER, AIRSILENCER, AIR
-
71606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
80617-395 FOAM, AIR, INTAKE (RIGHT)FOAM, AIR, INTAKE (RIGHT)
-
90617-394 FOAM, AIR, INTAKE, INSIDEFOAM, AIR, INTAKE, INSIDE
-
108061-628 RIVETRIVET
-
111606-930 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
120617-396 FOAM, AIR, INTAKE (LEFT)FOAM, AIR, INTAKE (LEFT)
-
130617-402 FOAM, AIR, INTAKE (REAR)FOAM, AIR, INTAKE (REAR)
-
140124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
150123-549 SCREW, MACHINESCREW, MACHINE
-
160123-010 NUT, EXPANSIONNUT, EXPANSION
-
171606-441 HOLD, DOWN, STRAPHOLD, DOWN, STRAP
-
180617-264 SEAL, FOAM, 33 IN.SEAL, FOAM, 33 IN.
-
191639-834 SEALANTSEALANT
-
200623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
211670-239 CARBURETOR, TMX34, 12CARBURETOR, TMX34, 12
-
220623-301 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
230623-078 DISC, VELCRODISC, VELCRO
