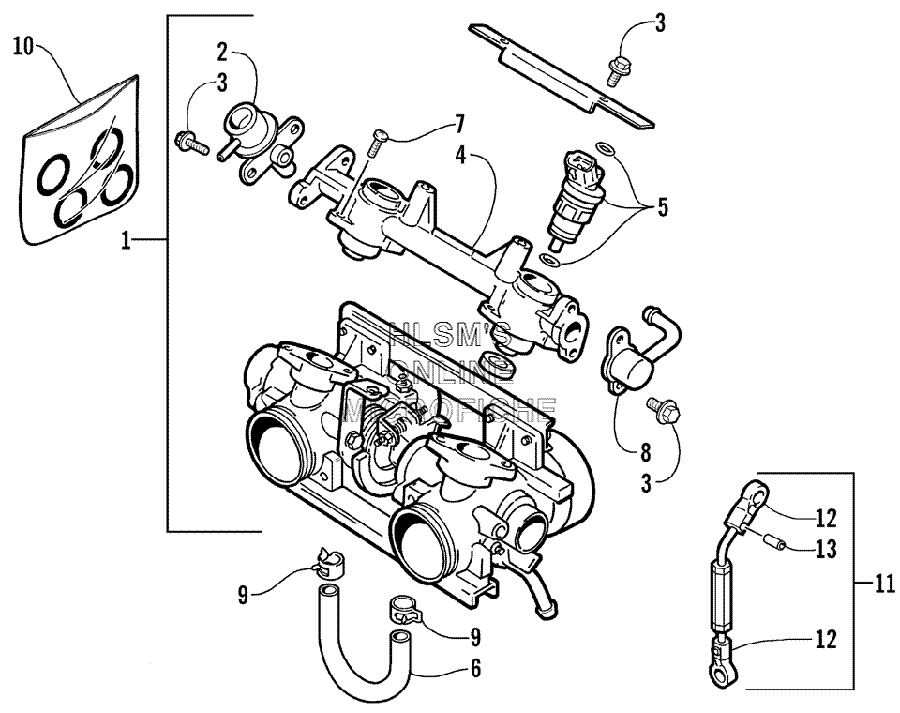

THROTTLE BODY ASSEMBLY для Arctic Cat ZR 500 EFI (ESR) - 2001 года выпуска
-
№АртикулНазвание
-
13005-678 BODY, THROTTLE, ASSEMBLY CIRCLEBODY, THROTTLE, ASSEMBLY CIRCLE
-
13005-679 BODY, THROTTLE, ASSEMBLY SQUAREBODY, THROTTLE, ASSEMBLY SQUARE
-
13005-680 BODY, THROTTLE, ASSEMBLY TRIANGLEBODY, THROTTLE, ASSEMBLY TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 BOLTBOLT
-
43005-691 PIPE, DELIVERYPIPE, DELIVERY
-
53005-705 INJECTOR, FUEL, ASSEMBLY CIRCLEINJECTOR, FUEL, ASSEMBLY CIRCLE
-
53005-690 INJECTOR, FUEL, ASSEMBLY SQUAREINJECTOR, FUEL, ASSEMBLY SQUARE
-
53005-706 INJECTOR, FUEL, ASSEMBLY TRIANGLEINJECTOR, FUEL, ASSEMBLY TRIANGLE
-
63005-103 HOSEHOSE
-
73005-320 SCREWSCREW
-
83005-079 PIPE, FUEL INLETPIPE, FUEL INLET
-
93004-193 CLAMP, HOSECLAMP, HOSE
-
103005-688 O-RING SET (INC. ALL THROTTLE BODY O-RINGS)O-RING SET (INC. ALL THROTTLE BODY O-RINGS)
-
113005-693 ROD, CONTROL, OIL PUMP (INC.12, 13)ROD, CONTROL, OIL PUMP (INC.12, 13)
-
123005-737 END, RODEND, ROD
-
133005-738 PIN, SPRINGPIN, SPRING
