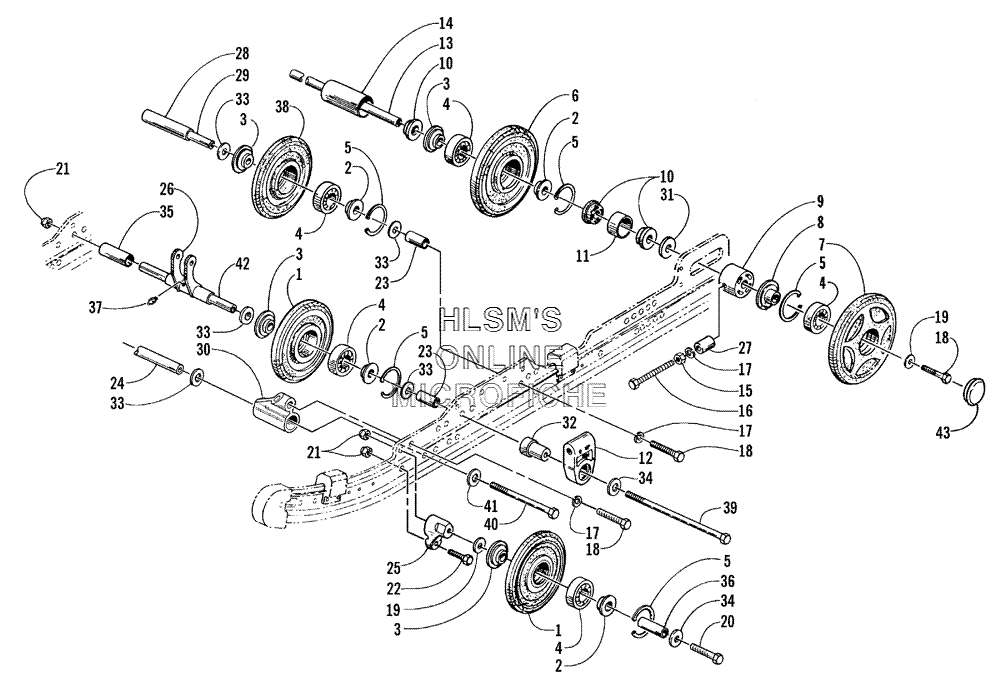

IDLER WHEEL ASSY. для Arctic Cat ZR 600 VEV - 2001 года выпуска
-
№АртикулНазвание
-
10604-459 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
20104-341 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
30104-340 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
40107-598 BEARINGBEARING
-
50123-798 RING, RETAININGRING, RETAINING
-
60604-210 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
70604-980 WHEEL, IDLER (INC. 4, 5 AND 8)WHEEL, IDLER (INC. 4, 5 AND 8)
-
80604-220 INSERT, WHEELINSERT, WHEEL
-
90604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
100604-968 BUSHING, SPACERBUSHING, SPACER
-
110604-937 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
120604-403 SLIDE, SPRINGSLIDE, SPRING
-
130604-208 AXLE (REAR)AXLE (REAR)
-
140604-144 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
158042-486 NUTNUT
-
160623-123 SCREW, CAPSCREW, CAP
-
178051-277 WASHER, LOCKWASHER, LOCK
-
188012-223 SCREW, CAPSCREW, CAP
-
190123-570 WASHERWASHER
-
208002-233 SCREW, CAPSCREW, CAP
-
218040-486 NUT, LOCKNUT, LOCK
-
228002-224 SCREW, CAPSCREW, CAP
-
231604-213 SPACERSPACER
-
241604-400 AXLEAXLE
-
251604-434 BLOCK, MOUNTING, IDLER WHEEL (RIGHT)BLOCK, MOUNTING, IDLER WHEEL (RIGHT)
-
251604-435 BLOCK, MOUNTING, IDLER WHEEL (LEFT)BLOCK, MOUNTING, IDLER WHEEL (LEFT)
-
260704-374 PIVOT REAR SHOCK (INC. 37)PIVOT REAR SHOCK (INC. 37)
-
270604-298 SPACERSPACER
-
281604-214 SPACERSPACER
-
290604-930 AXLE, INNERAXLE, INNER
-
301604-070 SUPPORT ARM FRONT SHOCKSUPPORT ARM FRONT SHOCK
-
310623-220 WASHERWASHER
-
320604-912 BLOCK, SLIDEBLOCK, SLIDE
-
330623-675 WASHERWASHER
-
348050-282 WASHERWASHER
-
350603-105 SPACERSPACER
-
360603-030 AXLE, SERRATEDAXLE, SERRATED
-
379916-963 FITTING, GREASEFITTING, GREASE
-
380604-004 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
390623-734 SCREW, CAPSCREW, CAP
-
400623-105 SCREW, CAPSCREW, CAP
-
410623-044 WASHERWASHER
-
421604-209 AXLE, STEELAXLE, STEEL
-
430604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
