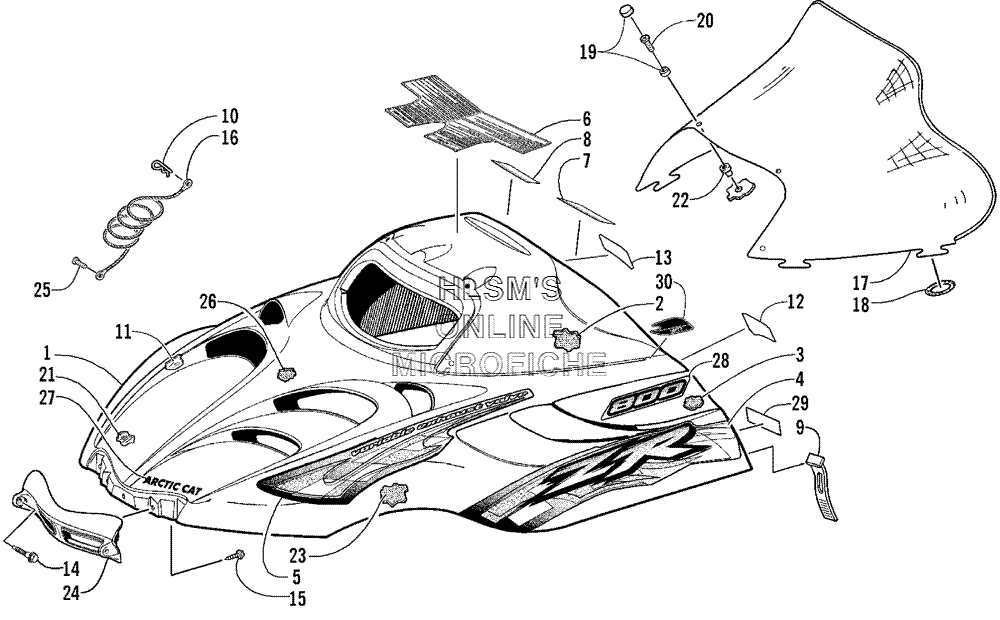

HOOD AND WINDSHIELD ASSY. (LE) для Arctic Cat ZR 800 LE - 2001 года выпуска
-
№АртикулНазвание
-
10718-944 HOOD W/O DECALSHOOD W/O DECALS
-
10718-961 HOOD W/DECALSHOOD W/DECALS
-
20617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
20617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
30717-164 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
30617-323 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
43611-956 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
43611-957 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
53611-958 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
53611-959 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
63611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
73611-486 DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)DECAL, CAUTION, ENGINE/BATTERY (ENGLISH)
-
83611-487 DECAL, CAUTION, ENGINE/BATTERY (FRENCH)DECAL, CAUTION, ENGINE/BATTERY (FRENCH)
-
91606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
100623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
112606-233 FOIL, HOOD (UPPER) (RIGHT)FOIL, HOOD (UPPER) (RIGHT)
-
123611-488 DECAL, CAUTION, FUEL (ENGLISH)DECAL, CAUTION, FUEL (ENGLISH)
-
133611-489 DECAL, CAUTION, FUEL (FRENCH)DECAL, CAUTION, FUEL (FRENCH)
-
140623-690 SCREW, MACHINESCREW, MACHINE
-
150623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
162606-247 CABLE, HOODCABLE, HOOD
-
171606-696 WINDSHIELDWINDSHIELD
-
180616-032 O-RINGO-RING
-
190124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
200623-902 SCREW, MACHINESCREW, MACHINE
-
211606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
211606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
220623-845 NUT, EXPANSIONNUT, EXPANSION
-
230717-162 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
230617-327 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
241606-720 HINGE, HOODHINGE, HOOD
-
250623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
260617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
273611-186 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
283611-834 DECAL, "800", HOODDECAL, "800", HOOD
-
293611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
304611-334 DECAL, "ACT", HOOD (RIGHT)DECAL, "ACT", HOOD (RIGHT)
-
304611-335 DECAL, "ACT", HOOD (LEFT)DECAL, "ACT", HOOD (LEFT)
