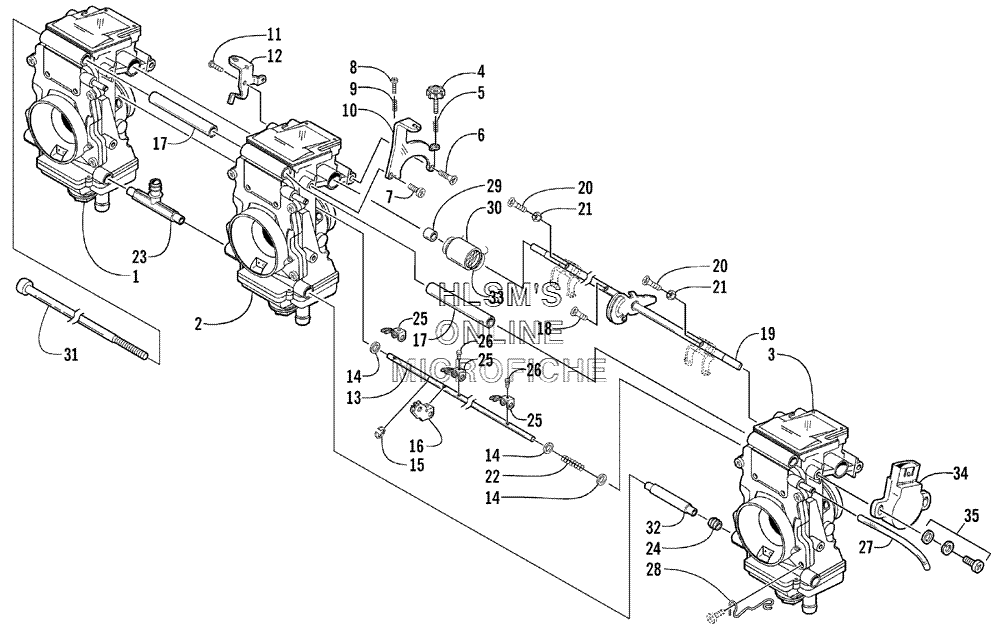

CARBURETOR - EXTERNAL PARTS для Arctic Cat ZRT 800 LE - 2001 года выпуска
-
№АртикулНазвание
-
16506-243 CARBURETOR ASSY. (LEFT)CARBURETOR ASSY. (LEFT)
-
26506-244 CARBURETOR ASSY. (CENTER) (INC. 4, 12)CARBURETOR ASSY. (CENTER) (INC. 4, 12)
-
36506-242 CARBURETOR ASSY. (RIGHT) (INC. 34, 35)CARBURETOR ASSY. (RIGHT) (INC. 34, 35)
-
46506-061 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
56506-062 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
66506-063 SCREWSCREW
-
76506-064 SCREWSCREW
-
86506-134 SCREWSCREW
-
96506-056 SPRINGSPRING
-
106506-058 BRACKETBRACKET
-
116506-085 SCREWSCREW
-
126506-086 BRACKETBRACKET
-
136506-083 SHAFTSHAFT
-
146506-081 WASHERWASHER
-
156506-084 E, RINGE, RING
-
166506-087 LEVERLEVER
-
176506-152 SPACERSPACER
-
186506-046 SCREWSCREW
-
196506-206 ASSY., THROTTLE LEVER SHAFTASSY., THROTTLE LEVER SHAFT
-
206506-042 SCREW, LEVER RINGSCREW, LEVER RING
-
216506-041 RING, LEVERRING, LEVER
-
226506-082 SPRING, SHAFTSPRING, SHAFT
-
236506-127 T, FITTINGT, FITTING
-
246506-090 SEALSEAL
-
256506-067 LEVER, PLUNGERLEVER, PLUNGER
-
266506-066 SCREW, MACHINESCREW, MACHINE
-
276506-133 HOSEHOSE
-
286506-131 CLIPCLIP
-
296506-048 SPACERSPACER
-
306506-049 SLEEVE, SPRINGSLEEVE, SPRING
-
316506-065 BOLTBOLT
-
326506-122 SPACERSPACER
-
336506-135 SPRING, THROTTLESPRING, THROTTLE
-
346506-074 SENSOR ASSY.SENSOR ASSY.
-
356506-075 SCREW W/WASHERSSCREW W/WASHERS
