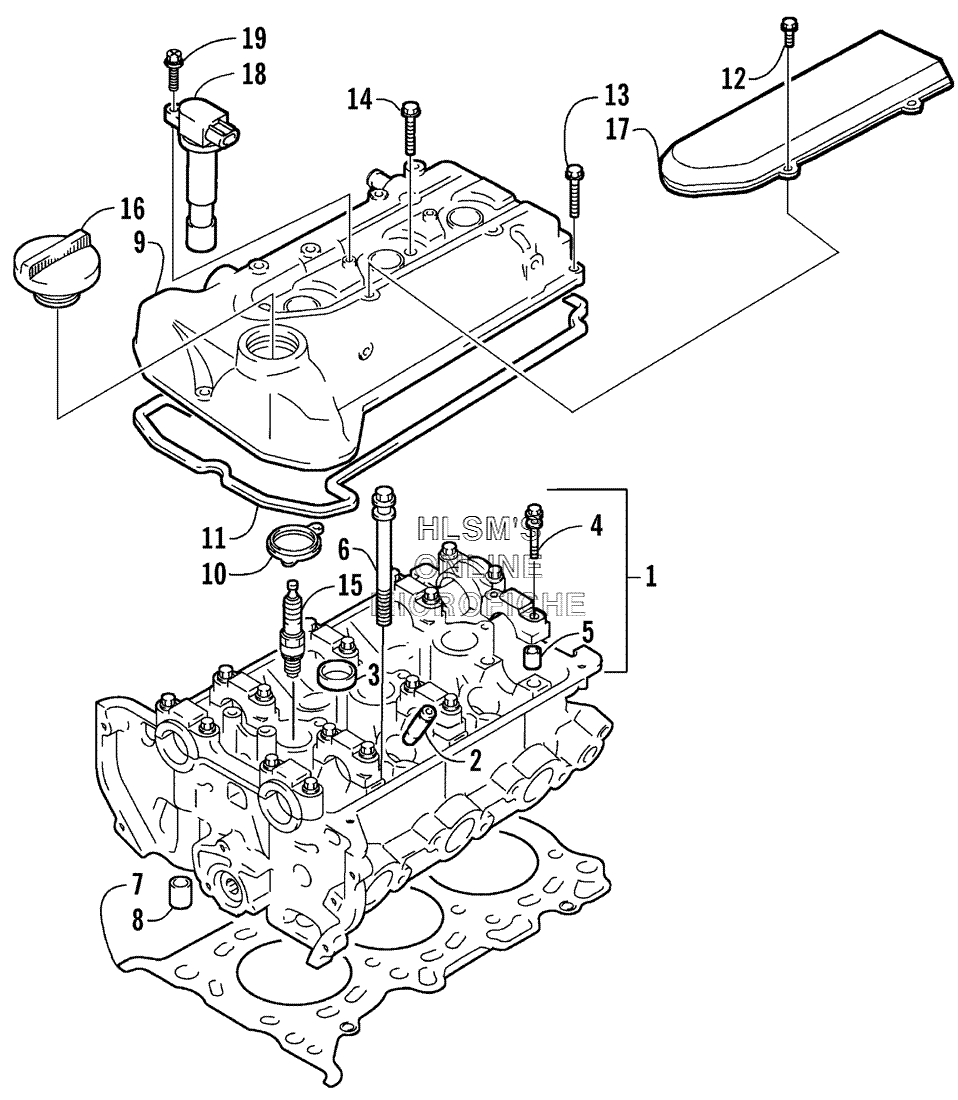

CYLINDER HEAD ASSY. для Arctic Cat 4-STROKE TOURING (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
13006-130 CYLINDER HEAD ASSY. (INC. 2, 5)CYLINDER HEAD ASSY. (INC. 2, 5)
-
23006-132 GUIDE, VALVEGUIDE, VALVE
-
33004-782 PLUGPLUG
-
43006-134 BOLT, CAMSHAFT CAPBOLT, CAMSHAFT CAP
-
53423-043 PIN, CAMSHAFT CAP DOWELPIN, CAMSHAFT CAP DOWEL
-
63006-133 BOLTBOLT
-
73006-135 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
83006-115 PIN, DOWELPIN, DOWEL
-
93006-136 COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
103006-137 GASKET, SPARK PLUG HOLEGASKET, SPARK PLUG HOLE
-
113006-138 GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
123006-101 BOLT, COIL COVERBOLT, COIL COVER
-
133004-756 BOLT, CYLINDER HEAD COVERBOLT, CYLINDER HEAD COVER
-
143423-119 BOLT, CYLINDER HEAD COVERBOLT, CYLINDER HEAD COVER
-
150217-717 SPARK PLUG (NGK DCPR7E)SPARK PLUG (NGK DCPR7E)
-
163006-225 CAP, OIL FILLERCAP, OIL FILLER
-
170708-159 COVER, COILCOVER, COIL
-
183006-280 COIL, IGNITION, ASSY.COIL, IGNITION, ASSY.
-
193004-341 BOLTBOLT
