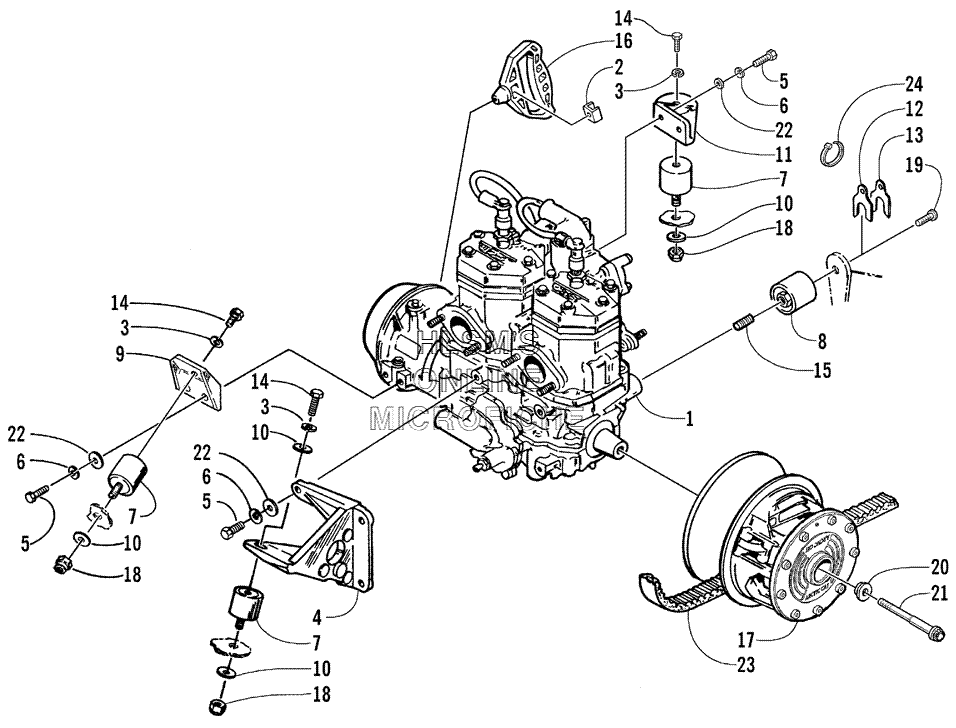

ENGINE AND RELATED PARTS для Arctic Cat BEARCAT WIDE TRACK (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
10662-311 ENGINE ACB55L3ENGINE ACB55L3
-
20606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
38051-277 WASHER, LOCKWASHER, LOCK
-
40745-079 BRACKET, ENGINE MOUNT (LEFT) FRONTBRACKET, ENGINE MOUNT (LEFT) FRONT
-
58013-132 SCREW, CAPSCREW, CAP
-
68051-242 WASHER, LOCKWASHER, LOCK
-
70608-061 MOUNT, ENGINEMOUNT, ENGINE
-
80608-054 MOUNT, ENGINE (LEFT) REARMOUNT, ENGINE (LEFT) REAR
-
90608-045 BRACKET, ENGINE MOUNT (RIGHT) FRONTBRACKET, ENGINE MOUNT (RIGHT) FRONT
-
108050-277 WASHERWASHER
-
110708-028 BRACKET, ENGINE MOUNT (RIGHT) REARBRACKET, ENGINE MOUNT (RIGHT) REAR
-
120608-055 SHIM, ENGINE MOUNT, 1/32 IN.SHIM, ENGINE MOUNT, 1/32 IN.
-
130608-056 SHIM, ENGINE MOUNT, 1/16 IN.SHIM, ENGINE MOUNT, 1/16 IN.
-
148002-222 SCREW, CAPSCREW, CAP
-
150623-281 STUD, ENGINE MOUNTSTUD, ENGINE MOUNT
-
160636-363 HANDLE, RECOILHANDLE, RECOIL
-
170725-296 CLUTCH, DRIVECLUTCH, DRIVE
-
170725-305 CLUTCH, DRIVE (INTERNATIONAL)CLUTCH, DRIVE (INTERNATIONAL)
-
188040-486 NUT, LOCKNUT, LOCK
-
190623-295 SCREW, CAPSCREW, CAP
-
200623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
210623-804 BOLT, CLUTCHBOLT, CLUTCH
-
228050-242 WASHERWASHER
-
230627-014 BELT, DRIVEBELT, DRIVE
-
240123-903 CABLE TIE, 11.5 IN.CABLE TIE, 11.5 IN.
