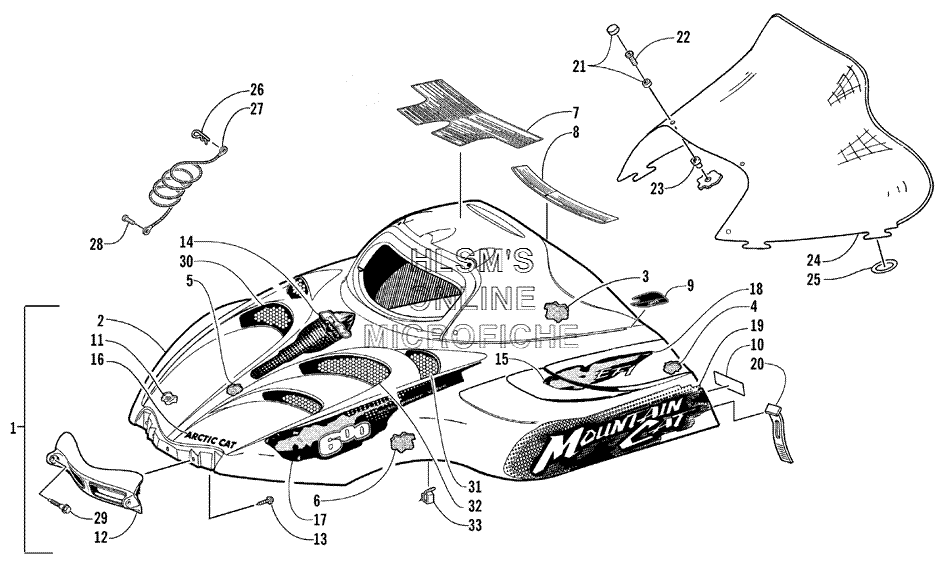

HOOD AND WINDSHIELD ASSY. для Arctic Cat MOUNTAIN CAT 600 EFI - 2002 года выпуска
-
№АртикулНазвание
-
11718-049 HOOD W/DECALS (INC. 2, 19)HOOD W/DECALS (INC. 2, 19)
-
21718-048 HOOD W/O DECALS (INC. 3, 13)HOOD W/O DECALS (INC. 3, 13)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-322 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40617-323 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
60617-327 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
94611-335 DECAL, "ACT", HOOD (LEFT)DECAL, "ACT", HOOD (LEFT)
-
130623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
154611-068 DECAL, HOOD, VENT (FRONT) (RIGHT)DECAL, HOOD, VENT (FRONT) (RIGHT)
-
154611-069 DECAL, HOOD, VENT (FRONT) (LEFT)DECAL, HOOD, VENT (FRONT) (LEFT)
-
242606-471 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 32 2606-325SCREEN, VENT, HOOD (LEFT) 45.95 120 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 32 2606-325SCREEN, VENT, HOOD (LEFT) 45.95 1
