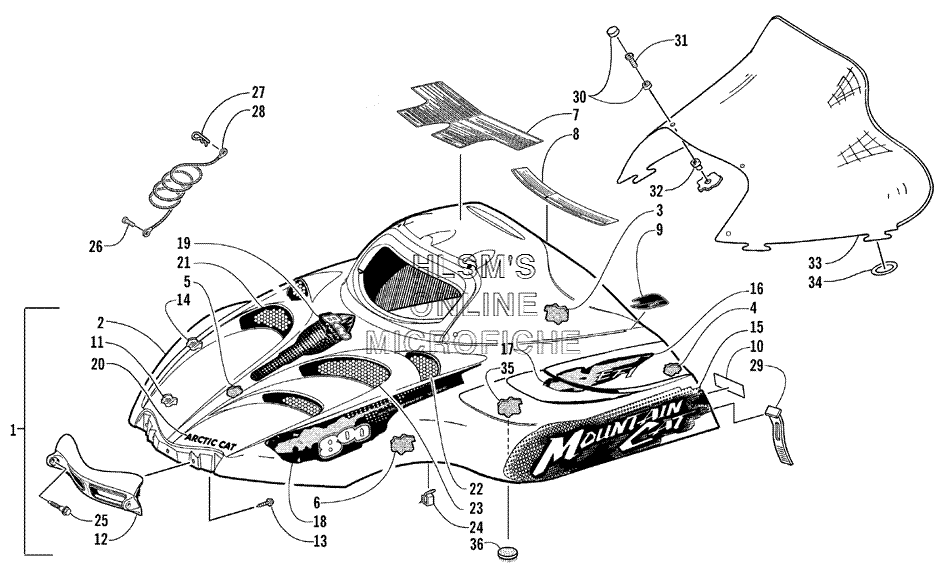

HOOD AND WINDSHIELD ASSY. для Arctic Cat MOUNTAIN CAT 800 EFI (LE BLACK-ORANGE 151) - 2002 года выпуска
-
№АртикулНазвание
-
11718-142 HOOD W/DECALS (INC. 2, 20)HOOD W/DECALS (INC. 2, 20)
-
21718-139 HOOD W/O DECALS (INC. 3, 14)HOOD W/O DECALS (INC. 3, 14)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-164 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40617-323 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60717-162 FOAM, HOOD (FRONT) (RIGHT)FOAM, HOOD (FRONT) (RIGHT)
-
60617-327 FOAM, HOOD (FRONT) (LEFT)FOAM, HOOD (FRONT) (LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
94611-334 DECAL, "ACT", HOOD (RIGHT)DECAL, "ACT", HOOD (RIGHT)
-
94611-335 DECAL, "ACT", HOOD (LEFT)DECAL, "ACT", HOOD (LEFT)
-
103611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
111606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
111606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
122606-454 HINGE, HOOD (SILVER)HINGE, HOOD (SILVER)
-
130623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
142606-233 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
154611-426 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
154611-425 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
164611-430 DECAL, HOOD, VENT (REAR) (RIGHT)DECAL, HOOD, VENT (REAR) (RIGHT)
-
164611-429 DECAL, HOOD, VENT (REAR) (LEFT)DECAL, HOOD, VENT (REAR) (LEFT)
-
174611-068 DECAL, HOOD, VENT (FRONT) (RIGHT)DECAL, HOOD, VENT (FRONT) (RIGHT)
-
174611-069 DECAL, HOOD, VENT (FRONT) (LEFT)DECAL, HOOD, VENT (FRONT) (LEFT)
-
184611-436 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
184611-437 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
194611-435 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
204611-062 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
212606-322 SCREEN, VENT, HOOD (RIGHT)SCREEN, VENT, HOOD (RIGHT)
-
222606-323 SCREEN, VENT, HOOD (LEFT)SCREEN, VENT, HOOD (LEFT)
-
232606-325 SCREEN, VENT, HOOD (CENTER)SCREEN, VENT, HOOD (CENTER)
-
240123-394 CLIP, RETAININGCLIP, RETAINING
-
250623-690 SCREW, MACHINESCREW, MACHINE
-
260623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
270623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
282606-247 CABLE, HOODCABLE, HOOD
-
291606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
300124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
310623-902 SCREW, MACHINESCREW, MACHINE
-
320623-845 NUT, EXPANSIONNUT, EXPANSION
-
332606-471 WINDSHIELDWINDSHIELD
-
340616-032 O-RINGO-RING
-
350617-426 FOAM, VENT, HOODFOAM, VENT, HOOD
-
360623-078 DISC, VELCRODISC, VELCRO
