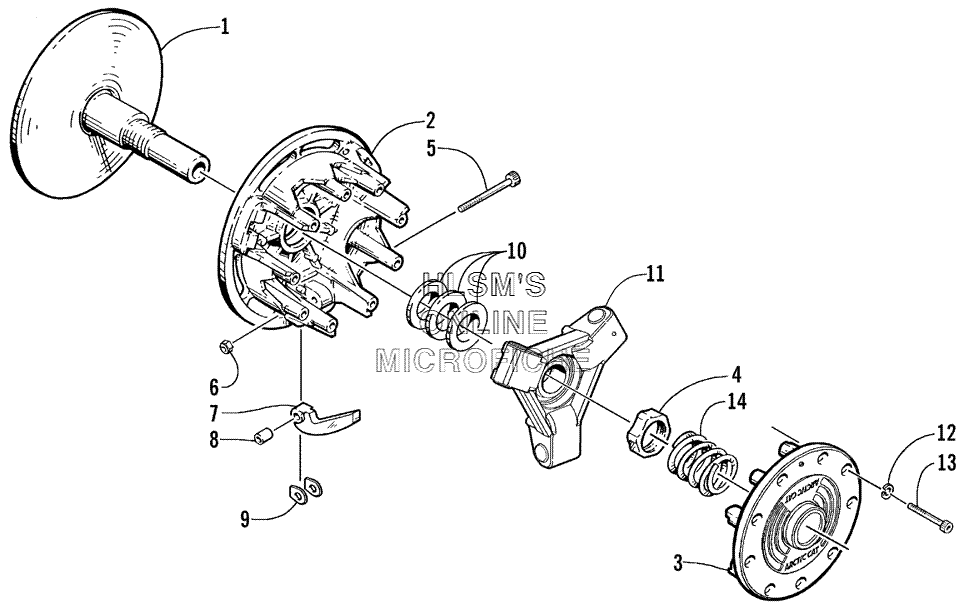

DRIVE CLUTCH для Arctic Cat PANTERA 550 (INTERNATIONAL) - 2002 года выпуска

№

Артикул

Название
-

0725-301 CLUTCH, DRIVE ASSY.

CLUTCH, DRIVE ASSY.

127 080 ₽
-

1639-030 CAM ARM KIT (INC. 5, 6, 8, AND 9)

CAM ARM KIT (INC. 5, 6, 8, AND 9)

12 060 ₽
-

0746-103 UNCALIBRATED DRIVE CLUTCH

UNCALIBRATED DRIVE CLUTCH

127 080 ₽
1

0646-325 SHEAVE, STATIONARY

SHEAVE, STATIONARY

33 690 ₽
2

0746-074 SHEAVE, MOVABLE

SHEAVE, MOVABLE

34 940 ₽
3

0746-086 COVER

COVER

17 880 ₽
4

0646-140 NUT

NUT

2 700 ₽
5

0646-295 PIN, CAM ARM

PIN, CAM ARM

2 280 ₽
6

0623-392 NUT, LOCK

NUT, LOCK

230 ₽
7

0746-527 ARM, CAM (INC. 8)

ARM, CAM (INC. 8)

2 490 ₽
7

0746-538 ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)

ARM, CAM (INC. 8) (5, 9, 000 FT ALT.)

2 490 ₽
7

0746-523 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

2 490 ₽
8

0646-160 BEARING, CAM ARM

BEARING, CAM ARM

2 280 ₽
9

0646-101 WASHER, CAM ARM

WASHER, CAM ARM

150 ₽
10

0646-265 WASHER, SPACER

WASHER, SPACER

480 ₽
11

0746-098 SPIDER ASSY.

SPIDER ASSY.

42 220 ₽
12

8051-212 WASHER, LOCK

WASHER, LOCK

20 ₽
13

0623-596 SCREW, MACHINE

SCREW, MACHINE

650 ₽
14

0646-149 SPRING, DRIVE CLUTCH (RED)

SPRING, DRIVE CLUTCH (RED)

8 520 ₽
14

0646-147 SPRING, DRIVE CLUTCH (YELLOW/GREEN) (OVER 5, 000 FT ALT.)

SPRING, DRIVE CLUTCH (YELLOW/GREEN) (OVER 5, 000 FT ALT.)

8 110 ₽
