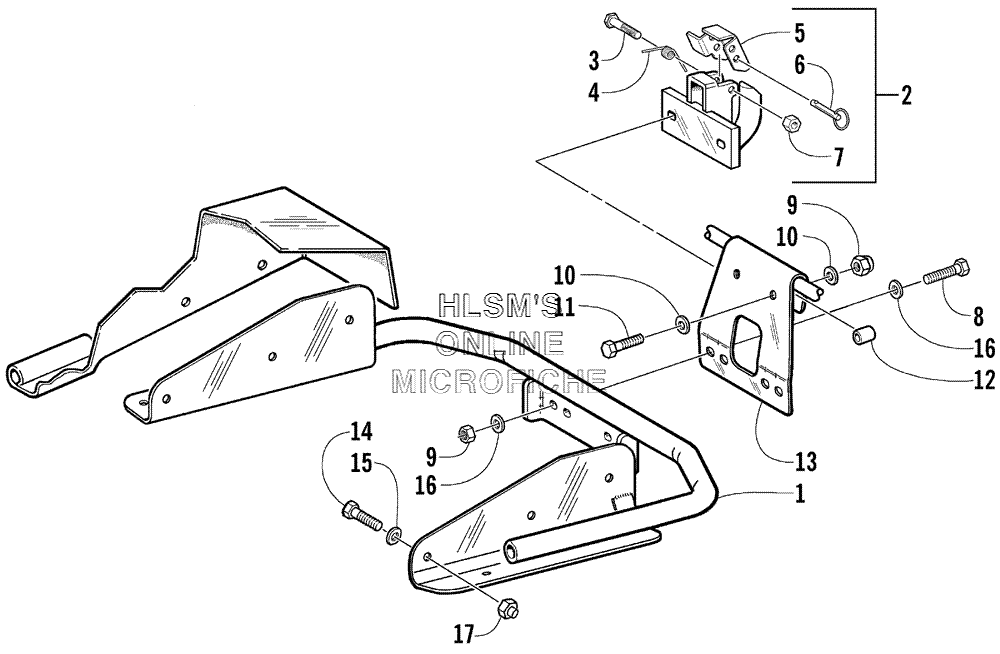

HITCH ASSY. (INTERNATIONAL) для Arctic Cat PANTERA 600 EFI ESR (INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
11706-093 SUPPORT, HITCHSUPPORT, HITCH
-
20706-727 HITCH, PINTLE, ASSY. (INC. 3, 7)HITCH, PINTLE, ASSY. (INC. 3, 7)
-
38002-046 SCREW, CAPSCREW, CAP
-
40623-335 SPRING, HITCHSPRING, HITCH
-
50606-997 LATCH, HITCHLATCH, HITCH
-
60623-213 PIN, HITCHPIN, HITCH
-
78040-366 NUT, LOCKNUT, LOCK
-
88002-134 SCREW, CAPSCREW, CAP
-
98040-426 NUT, LOCKNUT, LOCK
-
108050-247 WASHERWASHER
-
118002-135 SCREW, CAPSCREW, CAP
-
120605-066 AXLE, SPACERAXLE, SPACER
-
132606-098 BRACKET, MOUNTING, HITCHBRACKET, MOUNTING, HITCH
-
148002-039 SCREW, CAPSCREW, CAP
-
158050-222 WASHERWASHER
-
168050-252 WASHERWASHER
-
170123-108 NUT, CAPNUT, CAP
