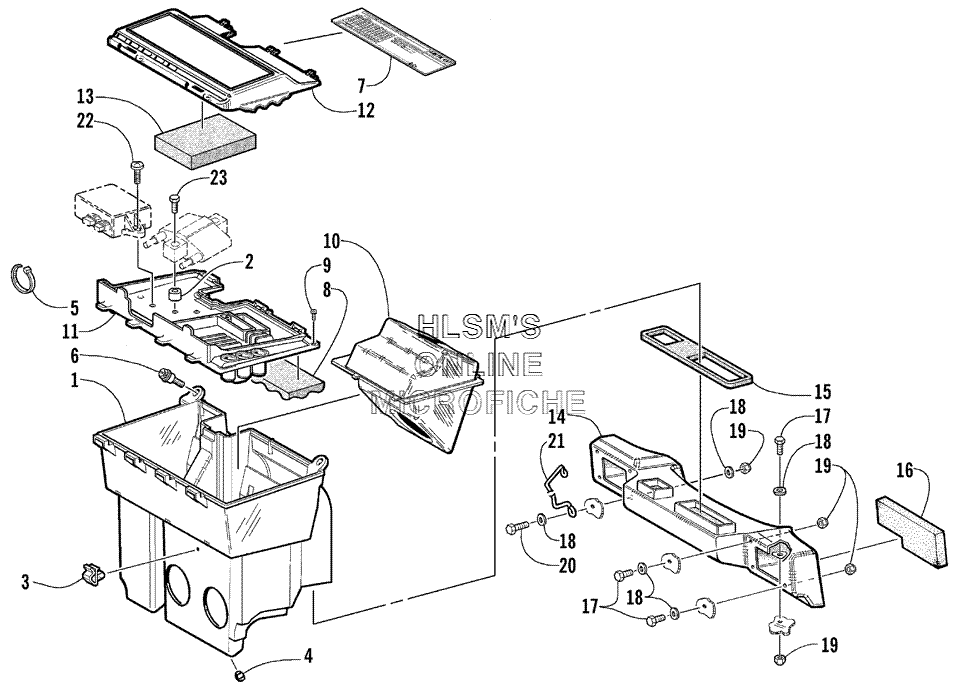

AIR SILENCER ASSY. для Arctic Cat Z 570 (ESR) - 2002 года выпуска
-
№АртикулНазвание
-
10770-579 SILENCER, AIR, ASSY.SILENCER, AIR, ASSY.
-
20107-630 SPACERSPACER
-
30623-403 CLAMP, PUSH MOUNTCLAMP, PUSH MOUNT
-
41606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
50123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
60623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
74611-567 DECAL, JET CHARTDECAL, JET CHART
-
80617-393 FOAM, COVER, AIR SILENCERFOAM, COVER, AIR SILENCER
-
90623-882 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
101670-061 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
111670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
121670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
130617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
141670-195 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
150617-245 SEAL, PLENUM/AIR SILENCERSEAL, PLENUM/AIR SILENCER
-
160617-270 FOAM, PLENUM, INTAKEFOAM, PLENUM, INTAKE
-
178002-040 SCREW, CAPSCREW, CAP
-
188050-222 WASHERWASHER
-
198040-366 NUT, LOCKNUT, LOCK
-
208002-042 SCREW, CAPSCREW, CAP
-
210607-669 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
220623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
230623-835 SCREW, MACHINESCREW, MACHINE
