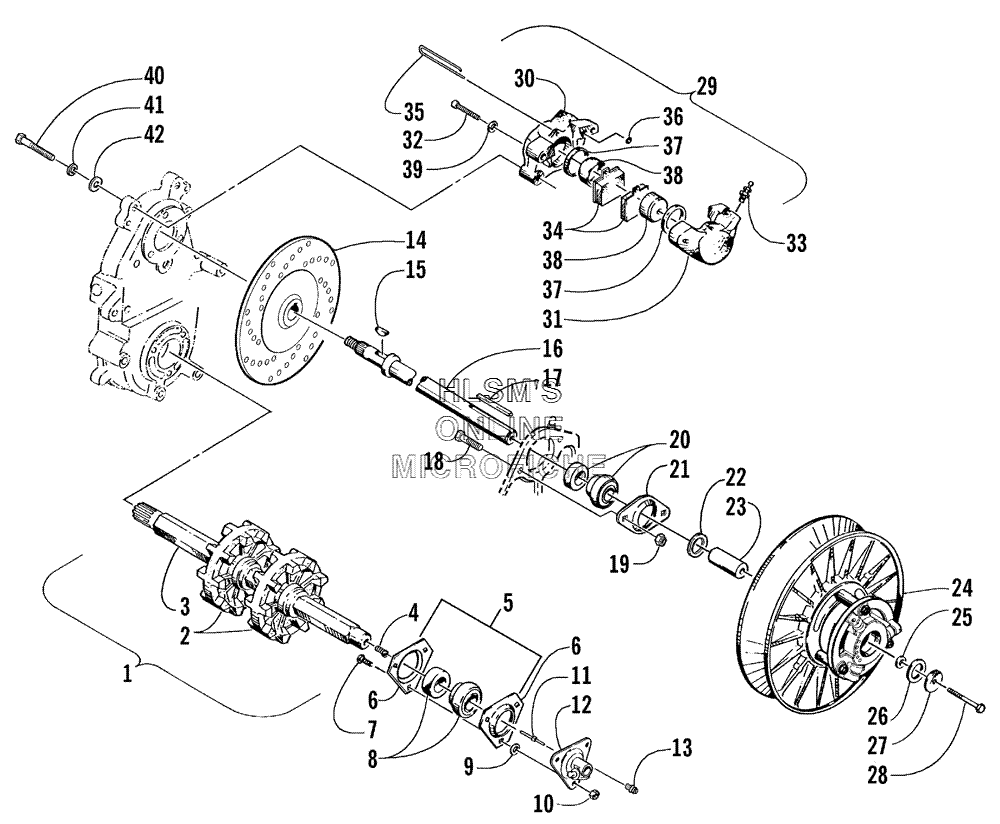

DRIVE TRAIN SHAFTS AND BRAKE ASSY. для Arctic Cat Z 570 SS - 2002 года выпуска
-
№АртикулНазвание
-
-0736-743 DRIVE, CLUTCHDRIVE, CLUTCH
-
10702-417 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUTNUT
-
88040-426 NUT, LOCKNUT, LOCK
-
98050-252 WASHERWASHER
-
108011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
118011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
128050-247 WASHERWASHER
-
138051-247 WASHER, LOCKWASHER, LOCK
-
148002-136 SCREW, CAPSCREW, CAP
-
151602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
160123-150 NUTNUT
-
170623-905 SEAL, ADJUSTER SCREWSEAL, ADJUSTER SCREW
-
188050-272 WASHERWASHER
-
190602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
201602-051 BEARING, 1 IN.BEARING, 1 IN.
-
210107-003 SEAL, O-RINGSEAL, O-RING
-
220602-198 PLATE, FLANGEPLATE, FLANGE
-
231602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
241670-237 SEAL, O-RINGSEAL, O-RING
-
258041-426 NUT, LOCKNUT, LOCK
-
260602-456 SPROCKET (20 TEETH)SPROCKET (20 TEETH)
-
260602-444 SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)
-
270623-231 WASHER, SPRINGWASHER, SPRING
-
280623-465 NUT, LOCKNUT, LOCK
-
291602-041 CHAIN, 70PCHAIN, 70P
-
300602-451 SPROCKET (39 TEETH)SPROCKET (39 TEETH)
-
300602-453 SPROCKET (40 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (40 TEETH) (OVER 5, 000 FT ALT.)
-
310602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
320702-324 ARM, TIGHTENER, ASSY.ARM, TIGHTENER, ASSY.
-
338050-217 WASHERWASHER
-
340623-122 NUT, LOCKNUT, LOCK
-
350702-115 ARM, TIGHTENERARM, TIGHTENER
-
360623-283 WASHERWASHER
-
370702-129 ROLLER, TIGHTENER (INC. 38)ROLLER, TIGHTENER (INC. 38)
-
380602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
390623-284 WASHERWASHER
-
408050-212 WASHERWASHER
-
410702-130 SPRING ASSY.SPRING ASSY.
-
420123-082 PIN, COTTERPIN, COTTER
-
430602-437 SEAL, DROPCASESEAL, DROPCASE
-
440602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
450670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
468002-134 SCREW, CAPSCREW, CAP
-
478053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
487996-561 COVER, DROPCASE, ASSY. (INC. 49, 50 AND ONE NO. 51, 52)COVER, DROPCASE, ASSY. (INC. 49, 50 AND ONE NO. 51, 52)
-
491602-152 COVER, OIL VENTCOVER, OIL VENT
-
500623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
510623-293 PLUG, DROPCASEPLUG, DROPCASE
-
521602-213 O-RINGO-RING
-
538002-222 SCREW, CAPSCREW, CAP
-
540124-091 WASHER, PYRAMIDALWASHER, PYRAMIDAL
-
558050-242 WASHERWASHER
-
560616-964 GUARD, DROPCASEGUARD, DROPCASE
-
578011-137 BOLT, CARRIAGEBOLT, CARRIAGE
