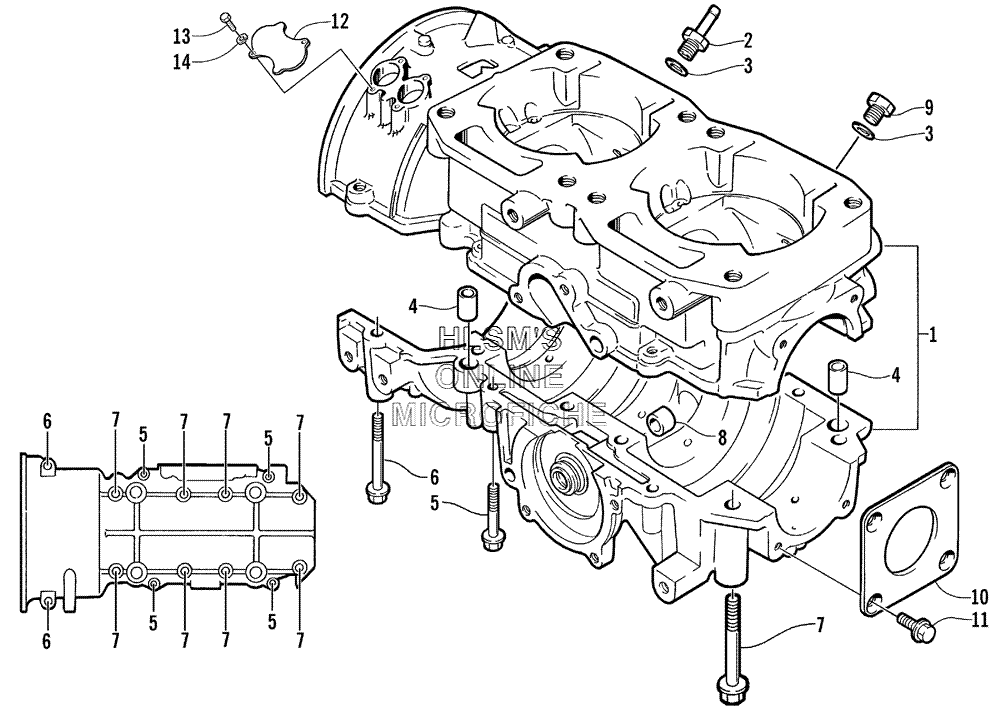

CRANKCASE ASSY. для Arctic Cat ZL 550 (ESR) - 2002 года выпуска
-
№АртикулНазвание
-
13005-406 CRANKCASE ASSY. (INC. 4, 8)CRANKCASE ASSY. (INC. 4, 8)
-
23002-040 UNION, HOSEUNION, HOSE
-
33002-276 GASKETGASKET
-
43003-646 PIN, DOWELPIN, DOWEL
-
53004-442 BOLTBOLT
-
63004-444 BOLTBOLT
-
73004-881 BOLTBOLT
-
83003-647 BUSHING, OIL PUMP SHAFTBUSHING, OIL PUMP SHAFT
-
93002-028 PLUG, CRANKCASEPLUG, CRANKCASE
-
103004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
113004-377 BOLTBOLT
-
123003-948 COVER, SENSOR OPENINGCOVER, SENSOR OPENING
-
130623-352 SCREW, CAPSCREW, CAP
-
148051-152 WASHER, LOCKWASHER, LOCK
