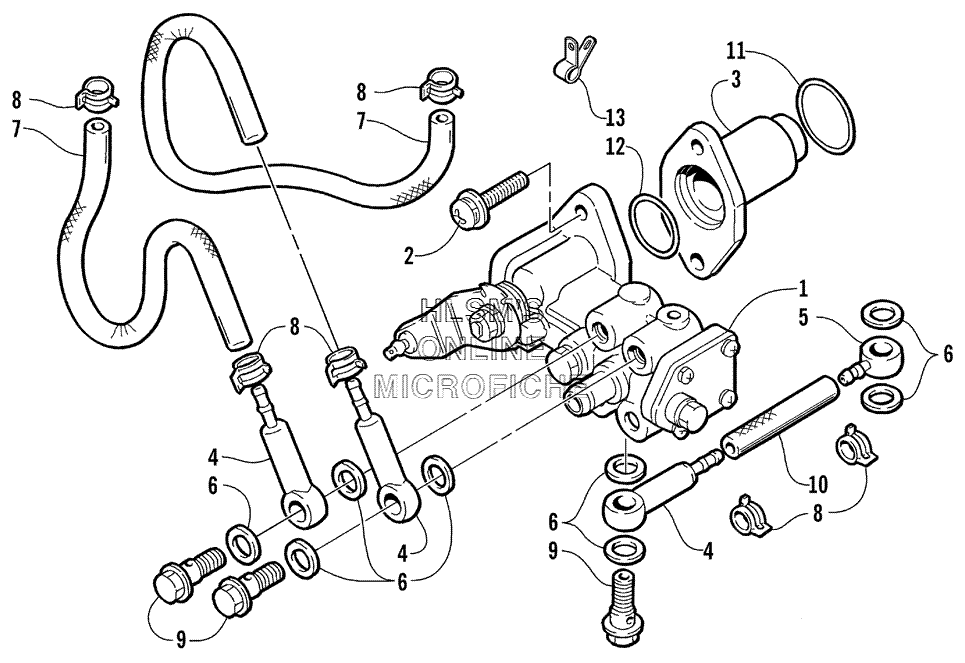

OIL PUMP для Arctic Cat ZL 600 EFI SS (BLACK ESR) - 2002 года выпуска
-
№АртикулНазвание
-
13005-818 OIL PUMP ASSY.OIL PUMP ASSY.
-
23004-373 SCREW, OIL PUMPSCREW, OIL PUMP
-
33004-804 RETAINER, OIL PUMPRETAINER, OIL PUMP
-
43003-217 VALVE, CHECKVALVE, CHECK
-
53003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
63402-009 GASKET, CHECK VALVEGASKET, CHECK VALVE
-
73008-035 HOSE, OIL PUMPHOSE, OIL PUMP
-
83008-037 CLAMP, HOSECLAMP, HOSE
-
93004-346 BOLT, UNIONBOLT, UNION
-
103005-357 HOSE, OIL PUMPHOSE, OIL PUMP
-
113008-030 O-RINGO-RING
-
123005-126 O-RINGO-RING
-
133005-696 CLAMPCLAMP
