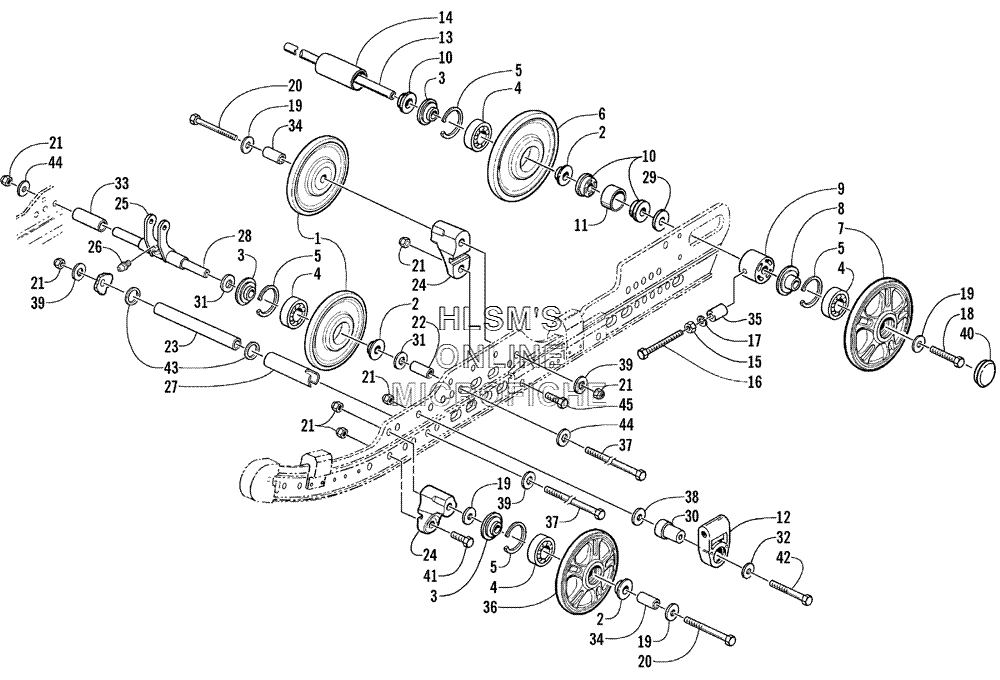

IDLER WHEEL ASSY. для Arctic Cat ZL 600 EFI SS (ORANGE ESR) - 2002 года выпуска
-
№АртикулНазвание
-
11604-684 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
21604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
31604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
40107-598 BEARINGBEARING
-
50123-798 RING, RETAININGRING, RETAINING
-
61604-685 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
71604-694 WHEEL, IDLER (INC. 4, 5 AND 8)WHEEL, IDLER (INC. 4, 5 AND 8)
-
81604-774 INSERT, WHEELINSERT, WHEEL
-
90604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
100604-968 BUSHING, SPACERBUSHING, SPACER
-
110604-937 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
121604-143 SLIDE, SPRINGSLIDE, SPRING
-
130604-208 AXLE (REAR)AXLE (REAR)
-
141604-107 SPACER WHEEL (REAR)SPACER WHEEL (REAR)
-
158042-486 NUTNUT
-
160623-123 SCREW, CAPSCREW, CAP
-
178051-277 WASHER, LOCKWASHER, LOCK
-
188002-223 SCREW, CAPSCREW, CAP
-
190123-570 WASHERWASHER
-
208002-233 SCREW, CAPSCREW, CAP
-
218040-486 NUT, LOCKNUT, LOCK
-
221604-213 SPACERSPACER
-
231604-792 AXLEAXLE
-
241604-612 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
250704-589 PIVOT REAR SHOCK (INC. 26)PIVOT REAR SHOCK (INC. 26)
-
260623-922 FITTING, GREASEFITTING, GREASE
-
271604-793 SPACER, SHOCK ARM (FRONT)SPACER, SHOCK ARM (FRONT)
-
281604-209 AXLEAXLE
-
290623-220 WASHERWASHER
-
300604-912 BLOCK, SLIDEBLOCK, SLIDE
-
310623-675 WASHERWASHER
-
328050-282 WASHERWASHER
-
330603-105 SPACERSPACER
-
340603-030 AXLE, SERRATEDAXLE, SERRATED
-
350604-298 SPACERSPACER
-
361604-693 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
370623-907 SCREW, CAPSCREW, CAP
-
380623-664 WASHERWASHER
-
390623-044 WASHERWASHER
-
400604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
418002-224 SCREW, CAPSCREW, CAP
-
428002-229 SCREW, CAPSCREW, CAP
-
430623-912 WASHERWASHER
-
448050-277 WASHERWASHER
-
458002-226 SCREW, CAPSCREW, CAP
