HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZL 800 EFI ESR - 2002 года выпуска
-
№АртикулНазвание
-
11718-040 HOOD W/DECALS (SILVER) (INC. 2, 19)HOOD W/DECALS (SILVER) (INC. 2, 19)
-
21718-110 HOOD W/O DECALS (SILVER) (INC. 3, 15)HOOD W/O DECALS (SILVER) (INC. 3, 15)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-322 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40617-323 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (FRONT) (RIGHT)FOAM, HOOD (FRONT) (RIGHT)
-
60617-327 FOAM, HOOD (FRONT) (LEFT)FOAM, HOOD (FRONT) (LEFT)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
103611-580 DECAL REVERSEDECAL REVERSE
-
111606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
111606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
122606-233 FOIL, HOOD (UPPER/RIGHT)FOIL, HOOD (UPPER/RIGHT)
-
131606-720 HINGE, HOODHINGE, HOOD
-
140623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
154611-334 DECAL, "ACT", HOOD (RIGHT)DECAL, "ACT", HOOD (RIGHT)
-
154611-335 DECAL, "ACT", HOOD (LEFT)DECAL, "ACT", HOOD (LEFT)
-
164611-174 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
164611-175 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
174611-176 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
174611-177 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
183611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
194611-389 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
202606-247 CABLE, HOODCABLE, HOOD
-
210623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
220623-690 SCREW, MACHINESCREW, MACHINE
-
231606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
242606-366 WINDSHIELDWINDSHIELD
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
-
260124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
270623-902 SCREW, MACHINESCREW, MACHINE
-
280616-032 O-RINGO-RING
-
292639-477 MIRROR, KIT (INC. SIX NO. 25, 27)MIRROR, KIT (INC. SIX NO. 25, 27)
-
300623-805 CLIP, HAIRPINCLIP, HAIRPIN
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BATTERY- SOLENOID- AND CABLES
- BELLY PAN AND FRONT BUMPER ASSEMBLY
- BELT GUARD ASSEMBLY
- CONSOLE AND SWITCH ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/REVERSE DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- DROPCASE AND CHAIN TENSION ASSEMBLY
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FLEX-DRIVE STARTER MOTOR ASSEMBLY

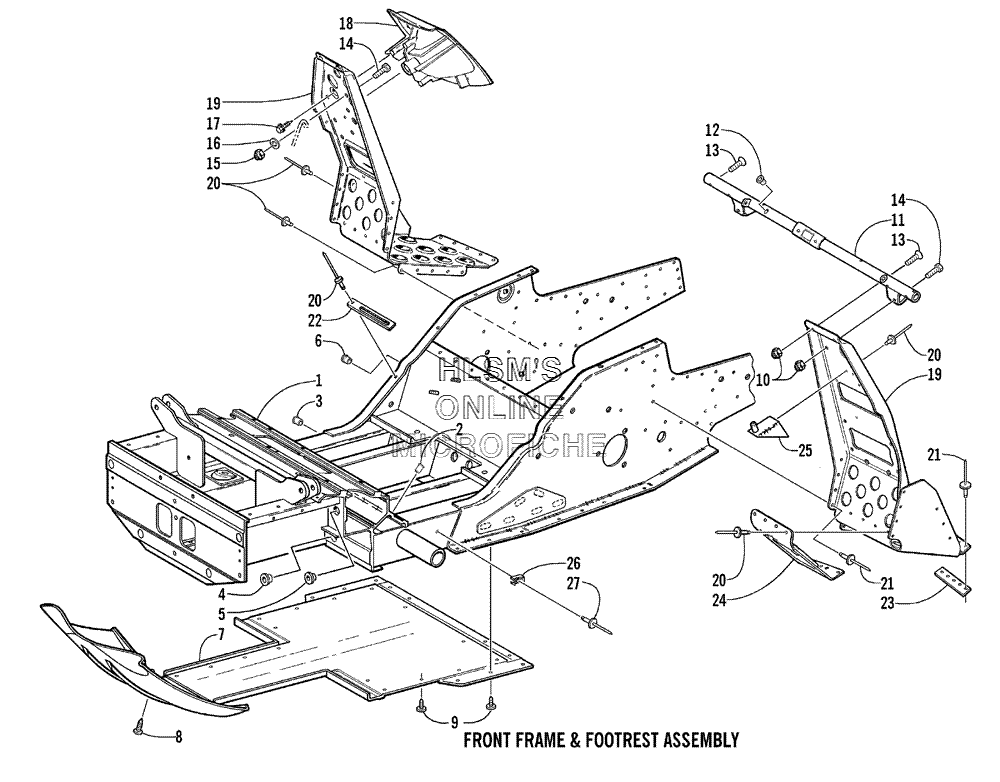

- FRONT FRAME AND FOOTREST ASSEMBLY
