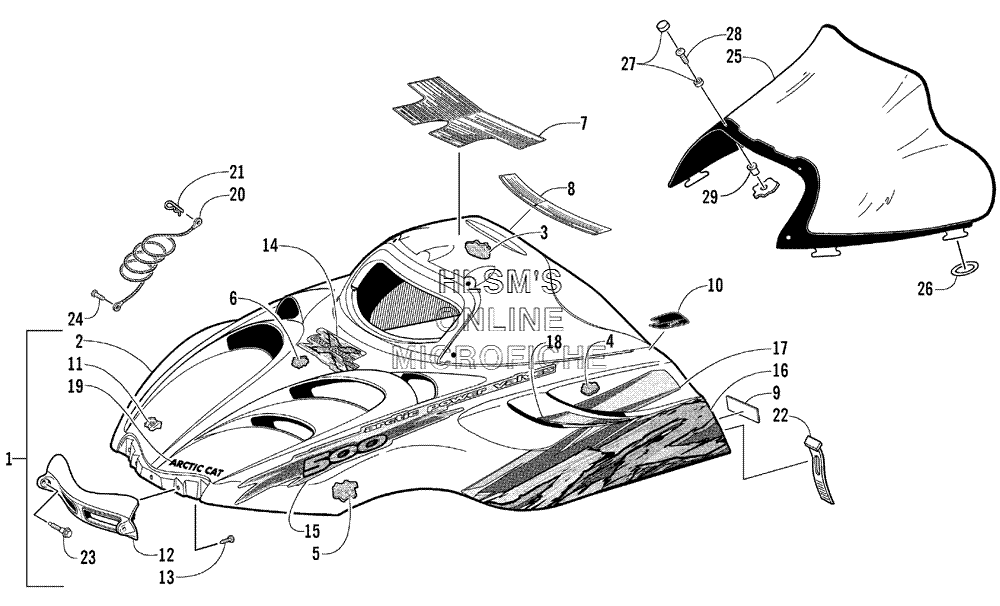

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat ZR 500 CC (CC INTERNATIONAL) - 2002 года выпуска
-
№АртикулНазвание
-
11718-149 HOOD W/DECALS (INC. 2, 19)HOOD W/DECALS (INC. 2, 19)
-
21718-032 HOOD W/O DECALS (INC. 3, 13)HOOD W/O DECALS (INC. 3, 13)
-
30617-324 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-325 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-322 FOAM, HOOD (REAR) (RIGHT)FOAM, HOOD (REAR) (RIGHT)
-
40617-323 FOAM, HOOD (REAR) (LEFT)FOAM, HOOD (REAR) (LEFT)
-
50617-326 FOAM, HOOD (FRONT) (RIGHT)FOAM, HOOD (FRONT) (RIGHT)
-
50617-327 FOAM, HOOD (FRONT) (LEFT)FOAM, HOOD (FRONT) (LEFT)
-
60617-328 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
104611-334 DECAL, "ACT", HOOD (RIGHT)DECAL, "ACT", HOOD (RIGHT)
-
104611-335 DECAL, "ACT", HOOD (LEFT)DECAL, "ACT", HOOD (LEFT)
-
111606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
111606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
121606-720 HINGE, HOODHINGE, HOOD
-
130623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
144611-466 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
154611-472 DECAL, "500", HOOD (RIGHT)DECAL, "500", HOOD (RIGHT)
-
154611-471 DECAL, "500", HOOD (LEFT)DECAL, "500", HOOD (LEFT)
-
164611-452 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
164611-453 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
174611-462 DECAL, HOOD, VENT (REAR) (RIGHT)DECAL, HOOD, VENT (REAR) (RIGHT)
-
174611-463 DECAL, HOOD, VENT (REAR) (LEFT)DECAL, HOOD, VENT (REAR) (LEFT)
-
184611-464 DECAL, HOOD, VENT (FRONT) (RIGHT)DECAL, HOOD, VENT (FRONT) (RIGHT)
-
184611-465 DECAL, HOOD, VENT (FRONT) (LEFT)DECAL, HOOD, VENT (FRONT) (LEFT)
-
193611-187 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
202606-247 CABLE, HOODCABLE, HOOD
-
210623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
221606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
230623-690 SCREW, MACHINESCREW, MACHINE
-
240623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
252606-470 WINDSHIELDWINDSHIELD
-
260616-032 O-RINGO-RING
-
270124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
280623-902 SCREW, MACHINESCREW, MACHINE
-
290623-845 NUT, EXPANSIONNUT, EXPANSION
