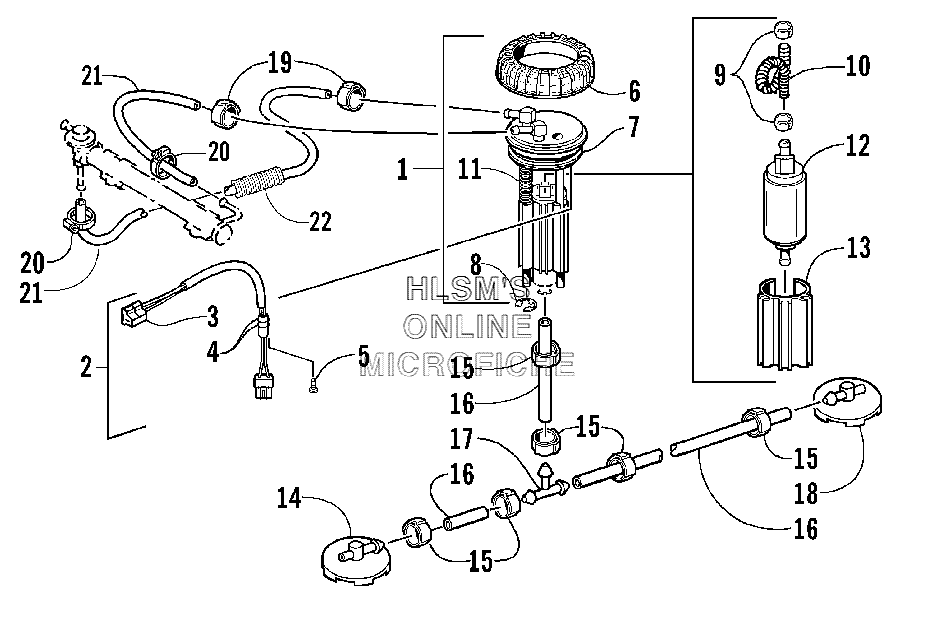

FUEL PUMP ASSEMBLY для Arctic Cat ZR 600 EFI CC (CC GREEN) - 2002 года выпуска
-
№АртикулНазвание
-
11670-200 PUMP, FUEL, ASSEMBLY (INC. 2, 13)PUMP, FUEL, ASSEMBLY (INC. 2, 13)
-
21670-117 HARNESS, FUEL PUMP (INC. 3, 4)HARNESS, FUEL PUMP (INC. 3, 4)
-
30670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
40670-381 O-RINGO-RING
-
51670-155 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
61670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
71670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
81670-244 RING, RETAININGRING, RETAINING
-
91670-159 CLAMP, HOSECLAMP, HOSE
-
101670-154 HOSE, FUEL PUMP, TOPHOSE, FUEL PUMP, TOP
-
111670-156 SPRING, FUEL PUMP ASSEMBLYSPRING, FUEL PUMP ASSEMBLY
-
121670-153 PUMP, FUELPUMP, FUEL
-
131670-158 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
141670-140 PICKUP, FUELPICKUP, FUEL
-
150610-415 CLAMP, HOSECLAMP, HOSE
-
160610-011 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
170670-235 T, FITTINGT, FITTING
-
181670-088 PICKUP, FUELPICKUP, FUEL
-
190610-419 CLAMP, HOSECLAMP, HOSE
-
200623-373 CLAMP, HOSECLAMP, HOSE
-
210610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
220716-507 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
