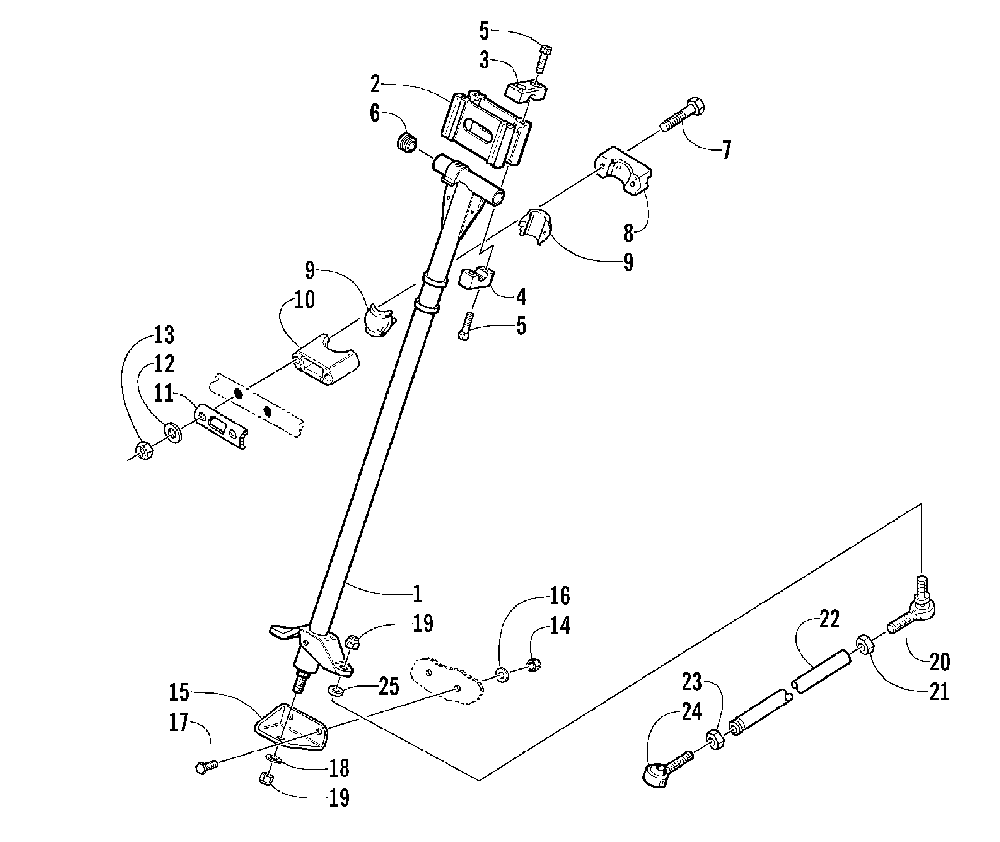

STEERING POST ASSEMBLY для Arctic Cat ZR 800 CC (CC BLACK) - 2002 года выпуска
-
№АртикулНазвание
-
10705-408 POST, STEERINGPOST, STEERING
-
20605-513 RISER, HANDLEBAR, 4.44 IN.RISER, HANDLEBAR, 4.44 IN.
-
20605-491 RISER, HANDLEBAR, 5.44 IN.RISER, HANDLEBAR, 5.44 IN.
-
20605-512 RISER, HANDLEBAR, 6.44 IN.RISER, HANDLEBAR, 6.44 IN.
-
20605-514 RISER, HANDLEBAR, 2.44 IN.RISER, HANDLEBAR, 2.44 IN.
-
30705-355 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
40605-495 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
50623-872 SCREW, CAPSCREW, CAP
-
61606-079 CLOSURE, TUBECLOSURE, TUBE
-
70623-814 SCREW, CAPSCREW, CAP
-
80605-406 CAP, BEARING HOUSINGCAP, BEARING HOUSING
-
90405-020 BEARING, HALFBEARING, HALF
-
100605-147 HOUSING, BEARINGHOUSING, BEARING
-
110605-331 PLATE, BACKING, STEERING SUPPORTPLATE, BACKING, STEERING SUPPORT
-
128050-217 WASHERWASHER
-
138040-366 NUT, LOCKNUT, LOCK
-
148040-426 NUT, LOCKNUT, LOCK
-
150705-407 PLATE, STEERING POSTPLATE, STEERING POST
-
168050-247 WASHERWASHER
-
178002-132 SCREW, CAPSCREW, CAP
-
180623-044 WASHERWASHER
-
190623-025 NUT, LOCKNUT, LOCK
-
200605-423 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
210123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
220605-404 TUBE, TIE RODTUBE, TIE ROD
-
230623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
240605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
250623-985 WASHERWASHER
