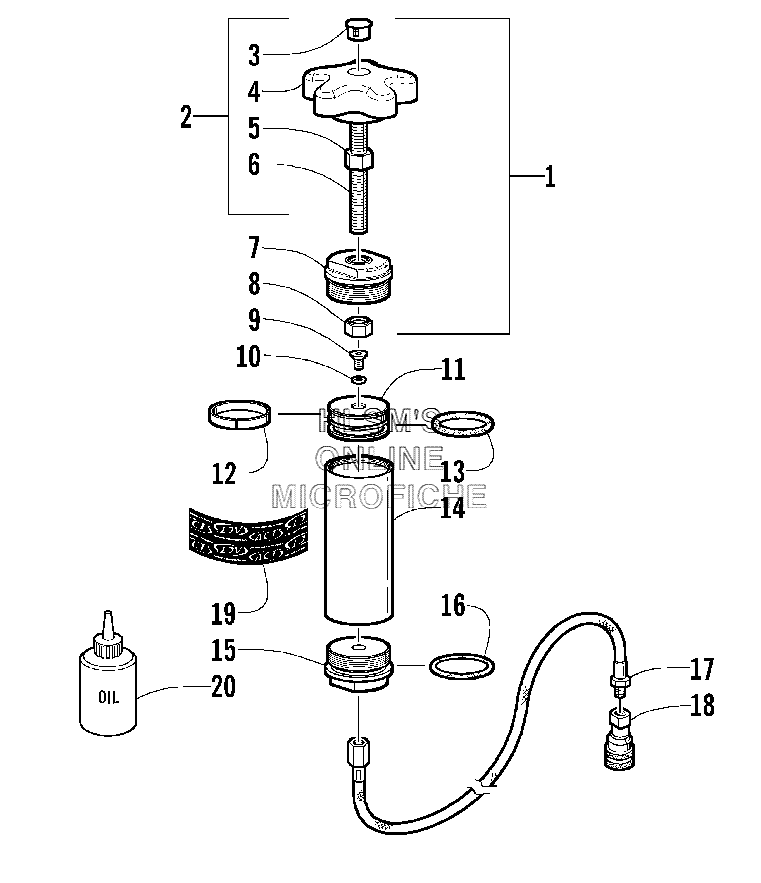

REMOTE SHOCK LIMITER ASSEMBLY (CC GREEN/CC BLACK) для Arctic Cat ZR 800 EFI CC (CC BLACK) - 2002 года выпуска
-
№АртикулНазвание
-
-0704-646 COMPLETE ASSYCOMPLETE ASSY
-
10704-645 END CAP/ADJUSTER KNOB ASSY (INC. 2, 8)END CAP/ADJUSTER KNOB ASSY (INC. 2, 8)
-
20704-647 KNOB, END CAP, ASSY (INC. 3, 6)KNOB, END CAP, ASSY (INC. 3, 6)
-
30623-537 PLUG, HOLEPLUG, HOLE
-
41604-526 KNOB, ADJUSTERKNOB, ADJUSTER
-
58042-486 NUTNUT
-
61604-831 STUDSTUD
-
70704-602 END CAPEND CAP
-
81604-832 NUT, STOP, ADJUSTER KNOBNUT, STOP, ADJUSTER KNOB
-
90623-697 SCREW, RELIEFSCREW, RELIEF
-
100423-182 O-RINGO-RING
-
111604-833 PISTON, FLOATINGPISTON, FLOATING
-
121604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
131604-277 O-RINGO-RING
-
141604-835 BODY, ADJUSTER, RESERVOIRBODY, ADJUSTER, RESERVOIR
-
151604-836 END CAP, RESERVOIREND CAP, RESERVOIR
-
161604-271 O-RINGO-RING
-
171604-531 HOSE, ADJUSTER/COUPLER, 38 IN.HOSE, ADJUSTER/COUPLER, 38 IN.
-
181604-537 COUPLERCOUPLER
-
194611-332 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
201639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
