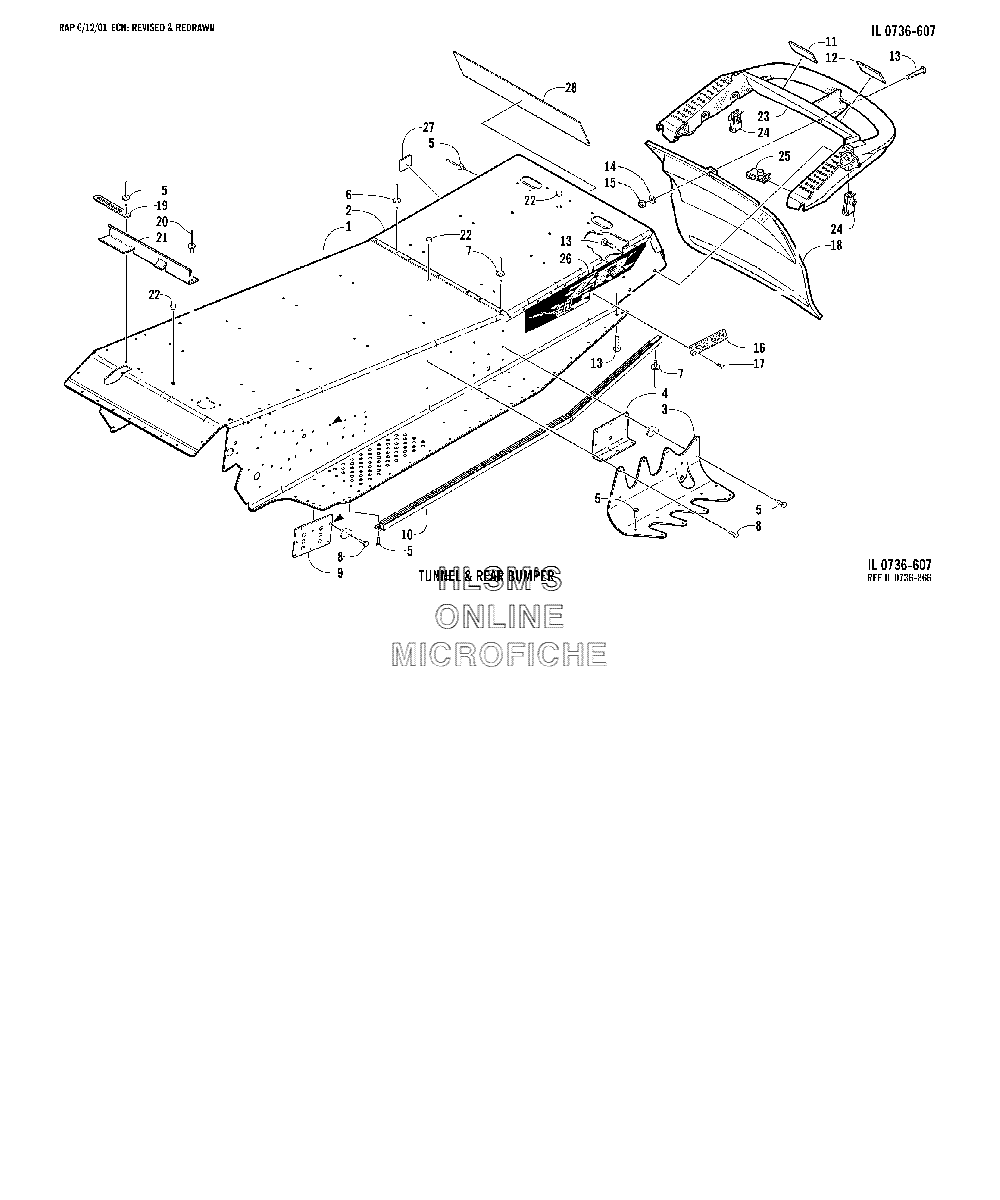

TUNNEL AND REAR BUMPER для Arctic Cat ZR 800 EFI - 2002 года выпуска
-
№АртикулНазвание
-
11718-160 TUNNEL ASSY (INC. 2, 8)TUNNEL ASSY (INC. 2, 8)
-
21606-486 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
31706-855 BRACKET, MOUNTING SUSPENSION (REAR) (RIGHT) (BLACK)BRACKET, MOUNTING SUSPENSION (REAR) (RIGHT) (BLACK)
-
31706-856 BRACKET, MOUNTING SUSPENSION (REAR) (LEFT) (BLACK)BRACKET, MOUNTING SUSPENSION (REAR) (LEFT) (BLACK)
-
41706-854 PLATE, BACKING SUSPENSION (REAR) (BLACK)PLATE, BACKING SUSPENSION (REAR) (BLACK)
-
50623-806 RIVETRIVET
-
50123-418 RIVETRIVET
-
58060-506 RIVETRIVET
-
68060-704 RIVETRIVET
-
78060-504 RIVETRIVET
-
80623-072 RIVETRIVET
-
91606-161 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
101706-840 ROLL, TUNNEL (RIGHT) (BLACK)ROLL, TUNNEL (RIGHT) (BLACK)
-
101706-841 ROLL, TUNNEL (LEFT) (BLACK)ROLL, TUNNEL (LEFT) (BLACK)
-
111611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
121611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
138017-580 SCREW, MACHINESCREW, MACHINE
-
148050-217 WASHERWASHER
-
158040-366 NUT, LOCKNUT, LOCK
-
160606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
170623-269 CLIP, RETAININGCLIP, RETAINING
-
181606-202 SNOWFLAPSNOWFLAP
-
181606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
193002-964 CLAMP, WIRECLAMP, WIRE
-
200623-166 RIVETRIVET
-
210607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
220623-562 PLUG, HOLEPLUG, HOLE
-
231606-200 BUMPER (REAR)BUMPER (REAR)
-
240623-771 NUT, UNUT, U
-
250623-427 NUT, UNUT, U
-
264611-330 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
264611-331 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
270411-053 DECAL, CEDECAL, CE
-
284611-112 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
