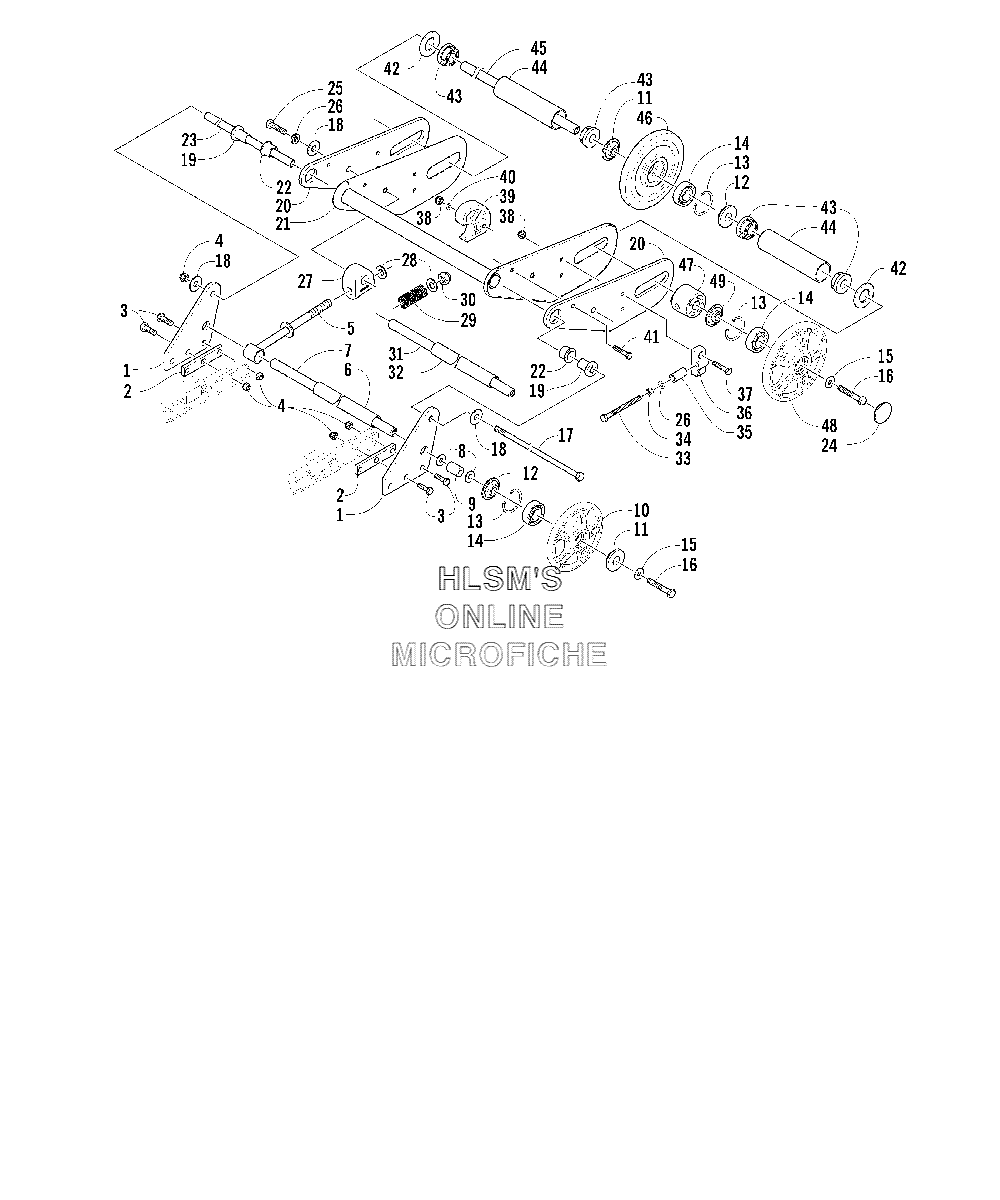

ARTICULATING SKID FRAME ASSEMBLY для Arctic Cat BEARCAT WIDE TRACK - 2003 года выпуска
-
№АртикулНазвание
-
12604-418 BRACKET, MOUNTING, ARTICULATING SKID FRAMEBRACKET, MOUNTING, ARTICULATING SKID FRAME
-
22604-417 SPACERSPACER
-
38002-224 SCREW, CAPSCREW, CAP
-
48040-486 NUT, LOCKNUT, LOCK
-
50704-262 BRACKET, SPRINGBRACKET, SPRING
-
60604-963 TUBE, AXLETUBE, AXLE
-
70604-952 AXLEAXLE
-
80123-439 WASHERWASHER
-
90604-901 AXLE, IDLER WHEEL (OUTER)AXLE, IDLER WHEEL (OUTER)
-
101604-693 WHEEL, IDLER (INC. 11, 14)WHEEL, IDLER (INC. 11, 14)
-
111604-773 INSERT, WHEEL (OUTSIDE)INSERT, WHEEL (OUTSIDE)
-
121604-772 INSERT, WHEEL (INSIDE)INSERT, WHEEL (INSIDE)
-
130123-798 RING, RETAININGRING, RETAINING
-
140107-598 BEARINGBEARING
-
150123-570 WASHERWASHER
-
168002-222 SCREW, CAPSCREW, CAP
-
170623-971 SCREW, CAPSCREW, CAP
-
188050-277 WASHERWASHER
-
190603-061 AXLE, SERRATEDAXLE, SERRATED
-
201604-004 BRACKET, MOUNTING AXLE (REAR)BRACKET, MOUNTING AXLE (REAR)
-
210704-288 ARM, SWING (INC. 22)ARM, SWING (INC. 22)
-
220104-386 BUSHING ARM (REAR)BUSHING ARM (REAR)
-
230604-962 AXLE, SWING ARMAXLE, SWING ARM
-
240604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
258002-223 SCREW, CAPSCREW, CAP
-
268051-277 WASHER, LOCKWASHER, LOCK
-
270604-839 BLOCK, SLIDEBLOCK, SLIDE
-
288050-342 WASHERWASHER
-
291704-027 SPRINGSPRING
-
308040-606 NUT, LOCKNUT, LOCK
-
310604-964 AXLE, SLIDE BLOCKAXLE, SLIDE BLOCK
-
320604-966 SPACER, ARTICULATING SKID FRAMESPACER, ARTICULATING SKID FRAME
-
330623-123 SCREW, CAPSCREW, CAP
-
348042-486 NUTNUT
-
350704-854 SPACER, TRACK ADJUSTERSPACER, TRACK ADJUSTER
-
360704-352 ADJUSTER, TRACKADJUSTER, TRACK
-
378002-042 SCREW, CAPSCREW, CAP
-
388040-366 NUT, LOCKNUT, LOCK
-
390604-863 BUMPER, TRACK GUIDEBUMPER, TRACK GUIDE
-
408050-217 WASHERWASHER
-
418002-045 SCREW, CAPSCREW, CAP
-
420623-220 WASHERWASHER
-
430604-968 BUSHING, SPACERBUSHING, SPACER
-
440604-965 SPACER (CENTER)SPACER (CENTER)
-
451604-682 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
461604-685 WHEEL, IDLER (INC. 11, 14)WHEEL, IDLER (INC. 11, 14)
-
470604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
481604-694 WHEEL, IDLER (INC. 13, 14 AND 49)WHEEL, IDLER (INC. 13, 14 AND 49)
-
491604-774 INSERT, IDLER WHEELINSERT, IDLER WHEEL
