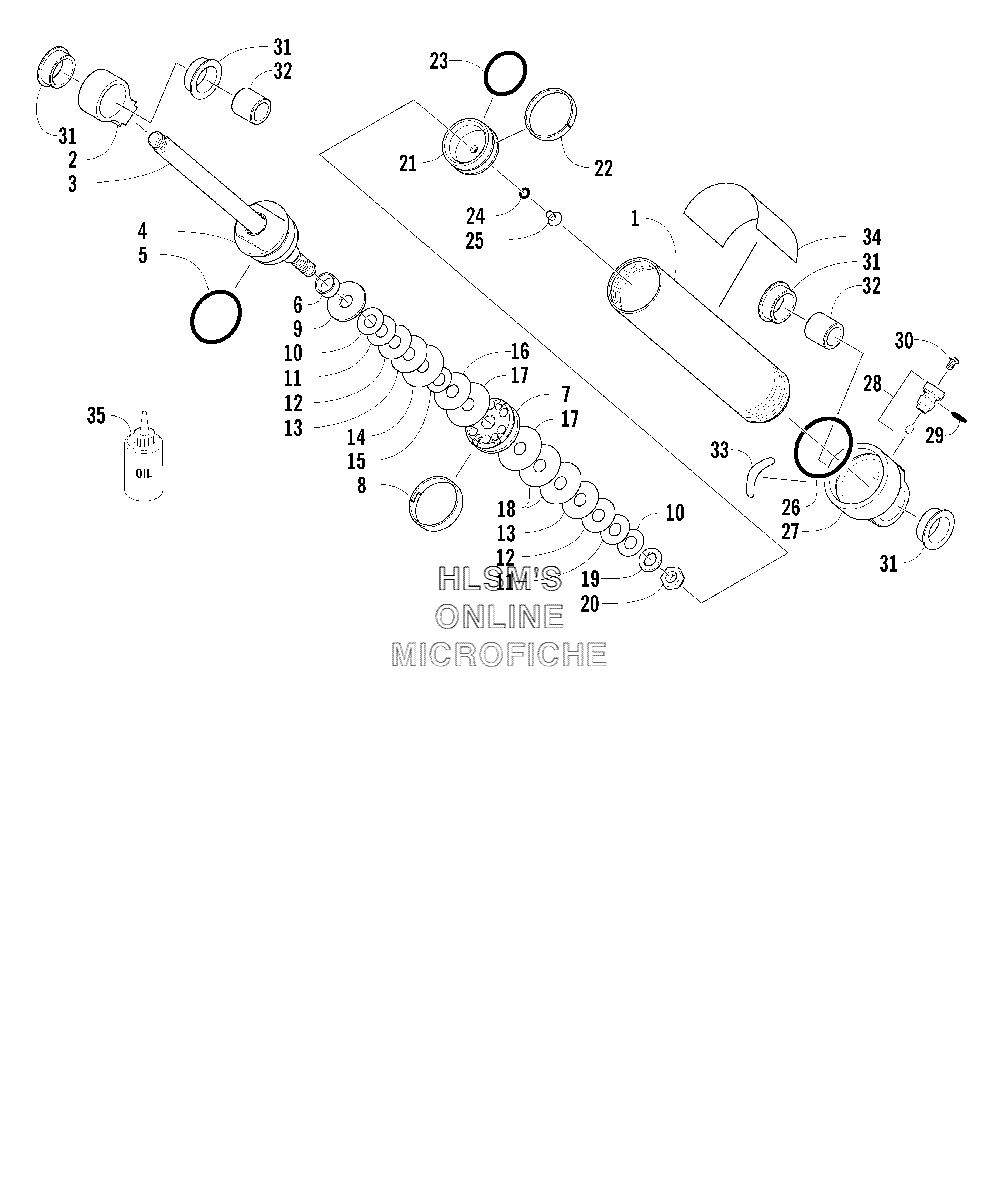

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat FIRECAT 500 (BLACK) - 2003 года выпуска
-
№АртикулНазвание
-
-0704-906 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-362 BODY, SHOCKBODY, SHOCK
-
21603-503 EYELET, SHOCKEYELET, SHOCK
-
32604-364 ROD, SHOCKROD, SHOCK
-
40704-382 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
62604-168 SPACER, SHAFTSPACER, SHAFT
-
71603-189 PISTON, 0.046 IN., ORIFICEPISTON, 0.046 IN., ORIFICE
-
81604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
102603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
112603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
122603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
132603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
142603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
152603-047 VALVE, 0.700 X 0.015 IN.VALVE, 0.700 X 0.015 IN.
-
162603-092 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
172603-132 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
182603-126 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
191604-273 WASHER, BACKUPWASHER, BACKUP
-
200623-696 NUT, LOCKNUT, LOCK
-
211604-276 PISTON, FLOATINGPISTON, FLOATING
-
221604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
231604-277 O-RINGO-RING
-
240423-182 O-RINGO-RING
-
250623-697 SCREW, RELIEFSCREW, RELIEF
-
261604-280 O-RING, END CAPO-RING, END CAP
-
271603-426 END CAP, SHOCKEND CAP, SHOCK
-
280704-383 VALVE, PRESSURE (INC. 29)VALVE, PRESSURE (INC. 29)
-
291604-284 O-RINGO-RING
-
300624-433 SCREW, VALVESCREW, VALVE
-
311604-262 BUSHING, SHOCKBUSHING, SHOCK
-
321604-397 SLEEVE, EYELETSLEEVE, EYELET
-
333611-007 DECAL, WARNINGDECAL, WARNING
-
344611-332 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
352639-151 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
