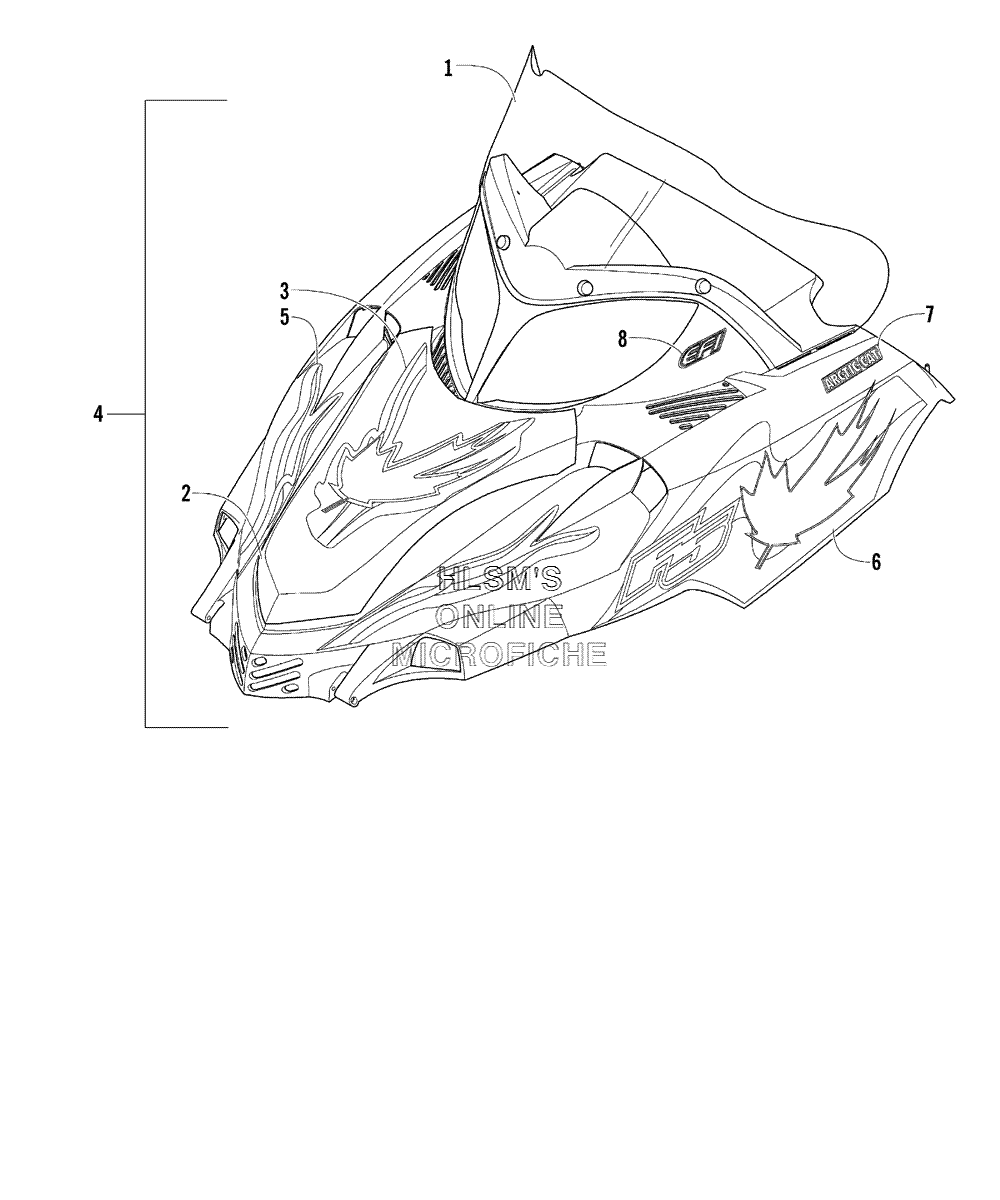

HOOD AND WINDSHIELD ASSEMBLY (CANADIAN) для Arctic Cat FIRECAT 500 SNO PRO (INTERNATIONAL RED) - 2003 года выпуска
-
№АртикулНазвание
-
12606-834 WINDSHIELDWINDSHIELD
-
21718-327 COVER, HOOD (RED) (INC. 3)COVER, HOOD (RED) (INC. 3)
-
35611-063 DECAL, HOOD (CENTER) (RED)DECAL, HOOD (CENTER) (RED)
-
41718-292 HOOD W/DECALS (RED) (INC. 5, 7)HOOD W/DECALS (RED) (INC. 5, 7)
-
55611-054 DECAL, HOOD (FRONT) (RIGHT) (RED)DECAL, HOOD (FRONT) (RIGHT) (RED)
-
55611-055 DECAL, HOOD (FRONT) (LEFT) (RED)DECAL, HOOD (FRONT) (LEFT) (RED)
-
65611-032 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
65611-033 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
75611-042 DECAL, HOOD, VENT (RED)DECAL, HOOD, VENT (RED)
-
85611-050 DECAL, "EFI" (700 EFI RED)DECAL, "EFI" (700 EFI RED)
