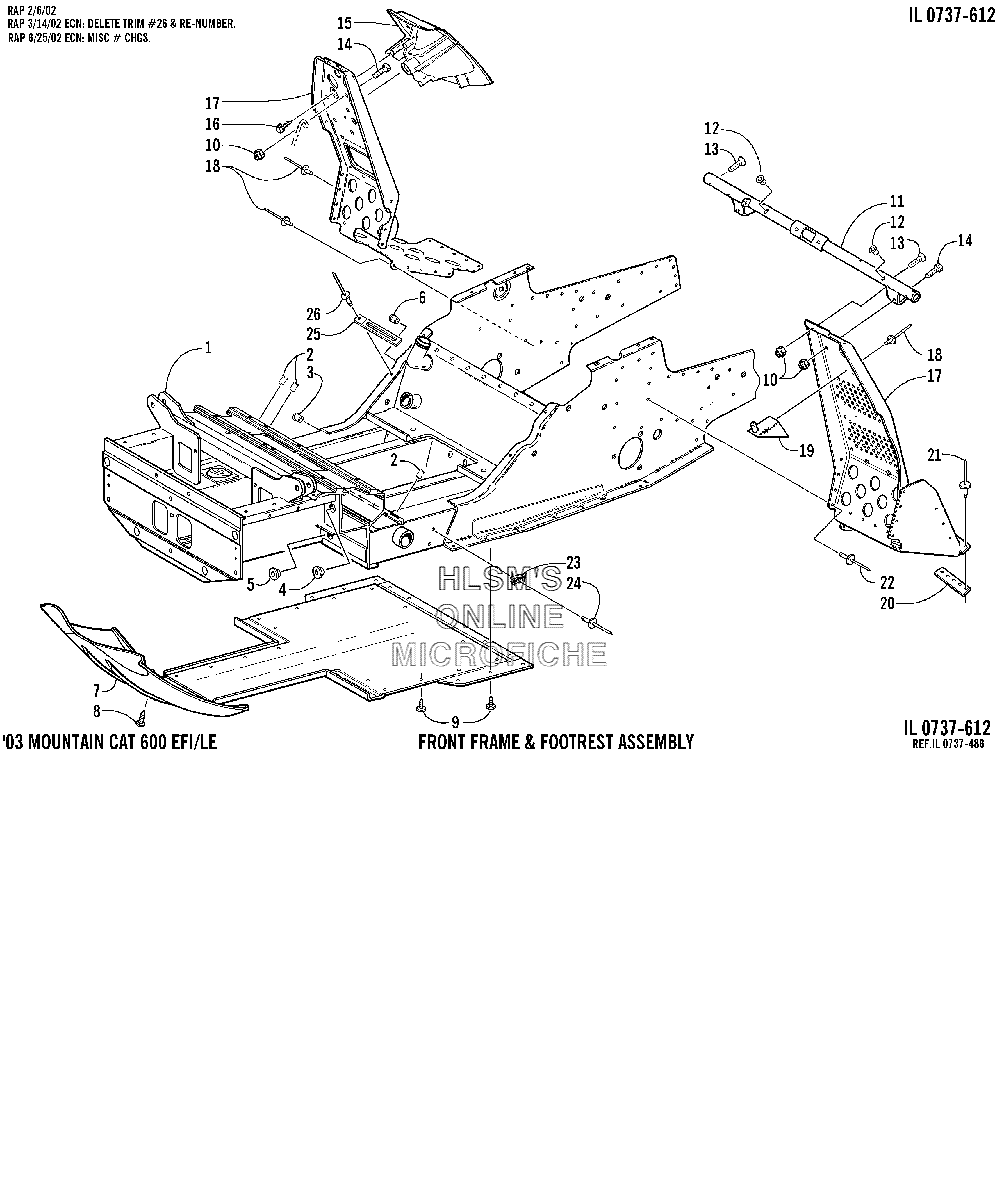

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 EFI (BLACK-GREEN 136) - 2003 года выпуска
-
№АртикулНазвание
-
10707-703 CHASSIS ASSY (INC. 2, 6)CHASSIS ASSY (INC. 2, 6)
-
20623-699 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
50607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
60623-581 INSERTINSERT
-
72606-732 BELLY PAN (CENTER) (PEWTER)BELLY PAN (CENTER) (PEWTER)
-
80623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
108041-366 NUT, LOCKNUT, LOCK
-
110705-866 SUPPORT, STEERING (INC. 12)SUPPORT, STEERING (INC. 12)
-
120623-779 INSERTINSERT
-
138019-614 SCREW, MACHINESCREW, MACHINE
-
148002-039 SCREW, CAPSCREW, CAP
-
151606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
160623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
172606-800 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
172606-733 FOOTREST (LEFT)FOOTREST (LEFT)
-
180623-166 RIVETRIVET
-
190705-173 BRACKET, MOUNTING, GUARDBRACKET, MOUNTING, GUARD
-
202706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
210623-282 RIVETRIVET
-
220623-341 RIVETRIVET
-
230623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
248060-428 RIVETRIVET
-
253002-964 CLAMP, WIRECLAMP, WIRE
-
268060-504 RIVETRIVET
