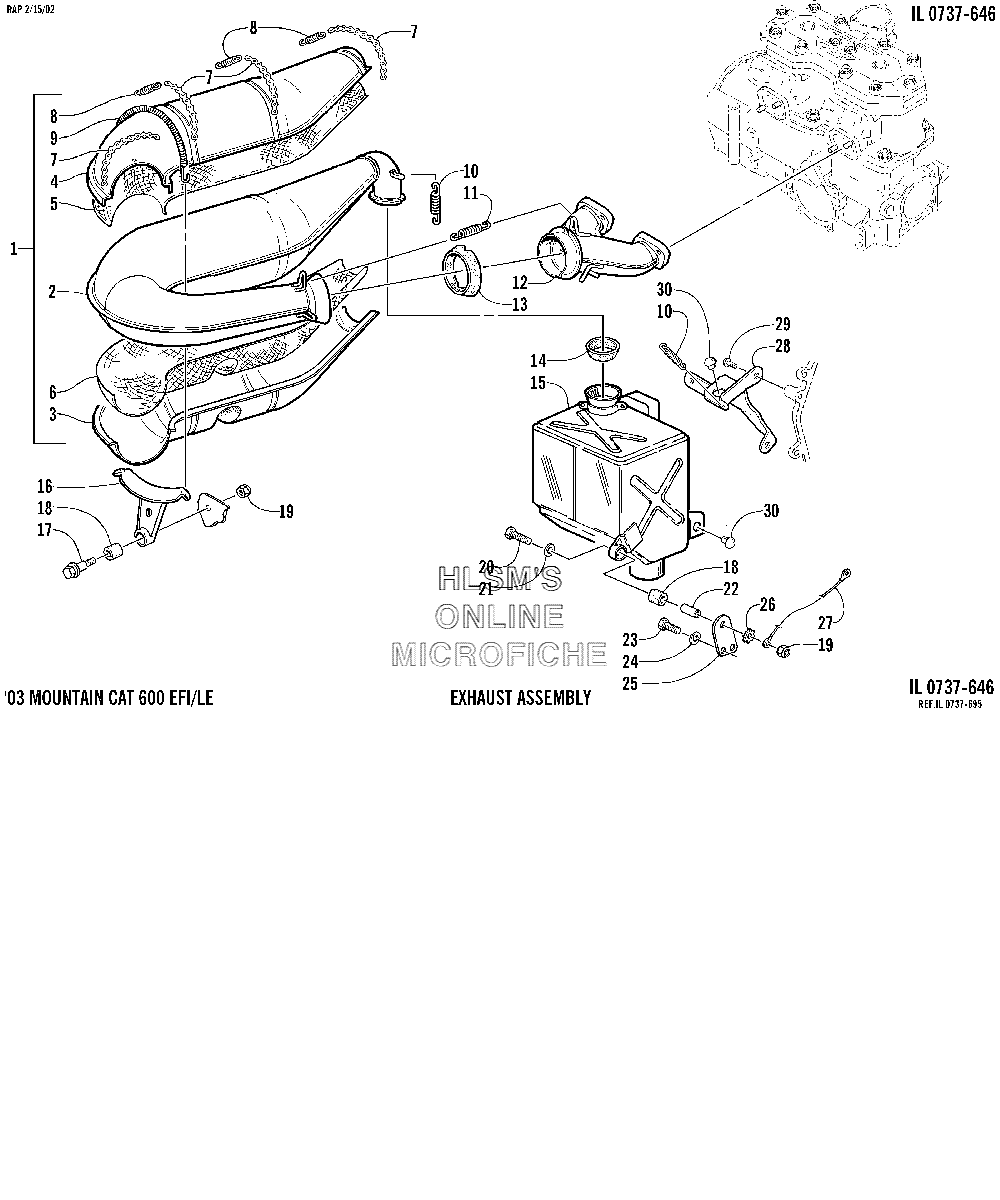

EXHAUST ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 EFI (BLACK-GREEN 144) - 2003 года выпуска
-
№АртикулНазвание
-
10712-833 EXPANSION CHAMBER ASSY (INC. 2, 8)EXPANSION CHAMBER ASSY (INC. 2, 8)
-
20712-831 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
31612-144 COVER (LOWER)COVER (LOWER)
-
41612-143 COVER (UPPER)COVER (UPPER)
-
51612-008 INSULATION (UPPER)INSULATION (UPPER)
-
61612-104 INSULATION (LOWER)INSULATION (LOWER)
-
70624-526 TIE, PERFORATED BAND (5 FT)TIE, PERFORATED BAND (5 FT)
-
70624-541 TIE, PERFORATED BAND (25 FT)TIE, PERFORATED BAND (25 FT)
-
81612-178 SPRING, EXTENSIONSPRING, EXTENSION
-
90612-027 SPRING, EXTENSIONSPRING, EXTENSION
-
100612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
110612-820 SPRING, EXTENSIONSPRING, EXTENSION
-
120712-713 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
131612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
141612-323 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
150712-747 RESONATORRESONATOR
-
160712-743 BRACKET, SUPPORTBRACKET, SUPPORT
-
170623-856 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
180612-107 BUSHING, RESONATOR, RUBBERBUSHING, RESONATOR, RUBBER
-
198040-366 NUT, LOCKNUT, LOCK
-
208002-044 SCREW, CAPSCREW, CAP
-
210623-184 WASHERWASHER
-
220612-108 SPACER, RESONATORSPACER, RESONATOR
-
238002-040 SCREW, CAPSCREW, CAP
-
248051-217 WASHER, LOCKWASHER, LOCK
-
250712-883 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
268053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
270686-126 WIRE, GROUNDWIRE, GROUND
-
280712-863 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
290623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
300612-111 BUMPER, MOLDED, RUBBERBUMPER, MOLDED, RUBBER
