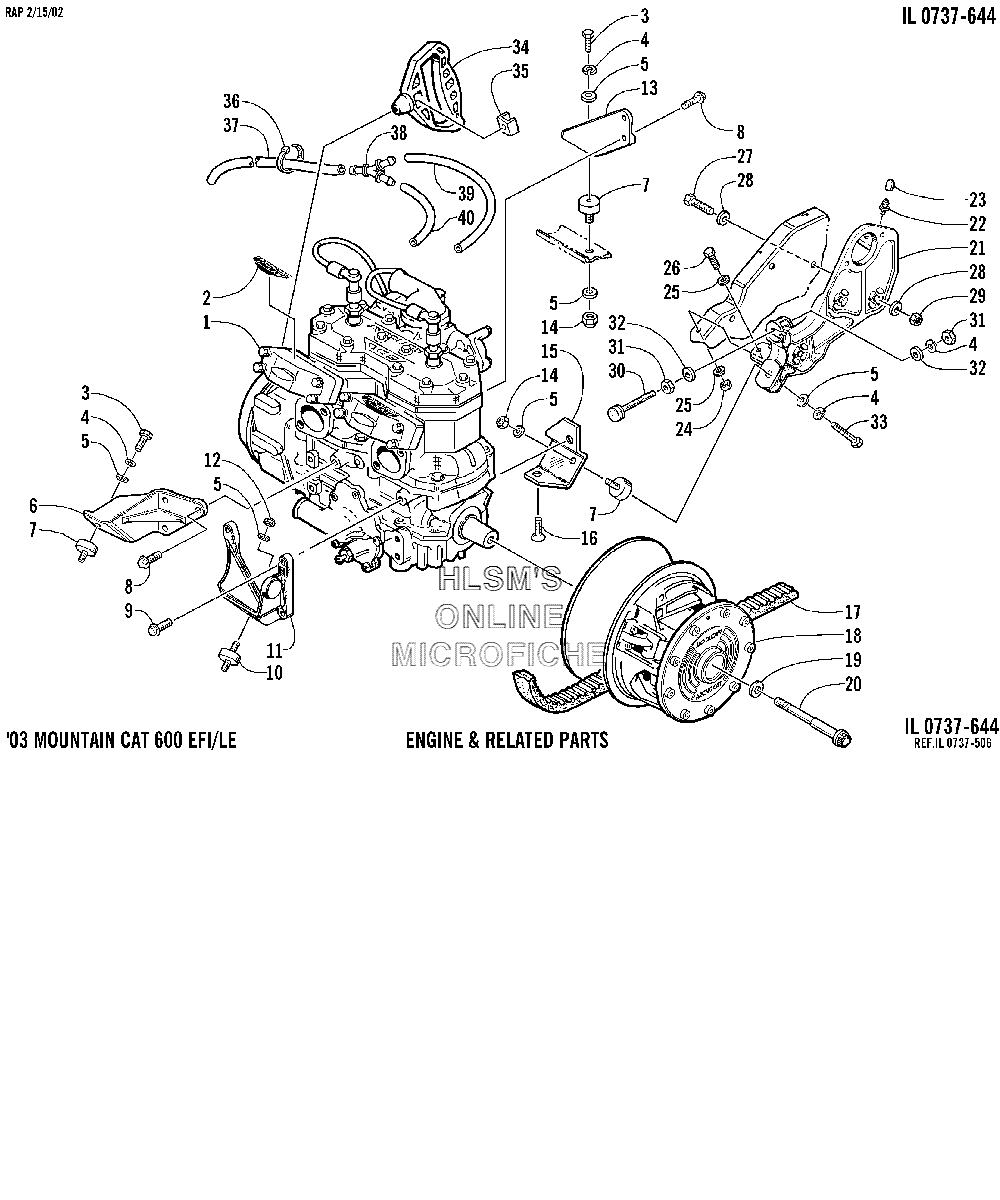

ENGINE AND RELATED PARTS для Arctic Cat MOUNTAIN CAT 600 EFI (BLACK-RED 136) - 2003 года выпуска
-
№АртикулНазвание
-
10662-339 ENGINE, AD60L7 W/O EFI COMPONENTSENGINE, AD60L7 W/O EFI COMPONENTS
-
23611-967 DECAL, "APV"DECAL, "APV"
-
38002-222 SCREW, CAPSCREW, CAP
-
48051-277 WASHER, LOCKWASHER, LOCK
-
58050-277 WASHERWASHER
-
60708-102 BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)BRACKET, ENGINE MOUNTING (RIGHT) (FRONT)
-
70608-217 MOUNT, ENGINEMOUNT, ENGINE
-
88020-130 SCREW, CAPSCREW, CAP
-
98020-132 SCREW, CAPSCREW, CAP
-
100608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
110708-103 BRACKET, ENGINE MOUNTING (LEFT) (FRONT)BRACKET, ENGINE MOUNTING (LEFT) (FRONT)
-
128041-486 NUT, LOCKNUT, LOCK
-
130708-104 BRACKET, ENGINE MOUNTING (RIGHT) (REAR)BRACKET, ENGINE MOUNTING (RIGHT) (REAR)
-
148040-486 NUT, LOCKNUT, LOCK
-
150708-120 BRACKET, ENGINE MOUNTING (LEFT) (REAR)BRACKET, ENGINE MOUNTING (LEFT) (REAR)
-
160623-095 SCREW, MACHINESCREW, MACHINE
-
170627-020 BELT, DRIVEBELT, DRIVE
-
180725-366 CLUTCH, DRIVECLUTCH, DRIVE
-
180725-323 CLUTCH, DRIVE (INTERNATIONAL)CLUTCH, DRIVE (INTERNATIONAL)
-
190623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
200623-804 BOLT, CLUTCHBOLT, CLUTCH
-
210708-404 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 22, 23)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 22, 23)
-
220623-899 FITTING, GREASEFITTING, GREASE
-
230623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
248040-366 NUT, LOCKNUT, LOCK
-
258050-217 WASHERWASHER
-
268002-041 SCREW, CAPSCREW, CAP
-
278002-225 SCREW, CAPSCREW, CAP
-
280623-044 WASHERWASHER
-
290623-026 NUT, LOCKNUT, LOCK
-
300608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
318042-516 NUTNUT
-
328050-282 WASHERWASHER
-
338002-226 SCREW, CAPSCREW, CAP
-
340636-363 HANDLE, RECOILHANDLE, RECOIL
-
350606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
360123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
370610-365 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
380670-875 Y, FITTINGY, FITTING
-
390610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
400610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
