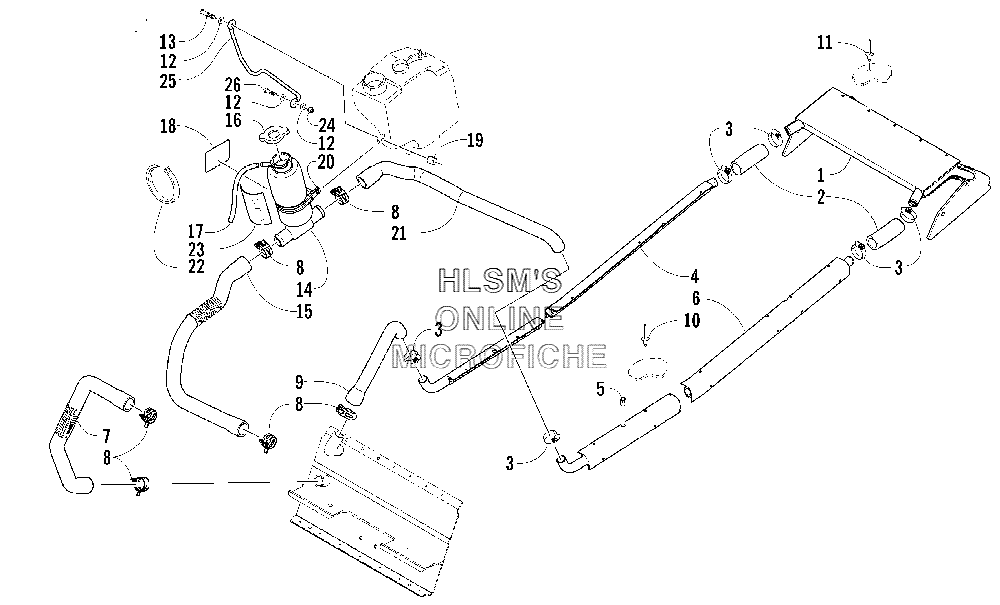

COOLING ASSEMBLY для Arctic Cat MOUNTAIN CAT 900 (BLACK-RED 151) - 2003 года выпуска
-
№АртикулНазвание
-
11706-915 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
20610-506 HOSE, COOLANT, HEAT EXCHANGERHOSE, COOLANT, HEAT EXCHANGER
-
31623-091 CLAMP, HOSECLAMP, HOSE
-
42706-100 HEAT EXCHANGER (RIGHT) (INC. ONE NO. 5) (151)HEAT EXCHANGER (RIGHT) (INC. ONE NO. 5) (151)
-
50623-627 INSERTINSERT
-
62706-101 HEAT EXCHANGER (LEFT) (INC. ONE NO. 5) (151)HEAT EXCHANGER (LEFT) (INC. ONE NO. 5) (151)
-
70610-475 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
80623-736 CLAMP, HOSECLAMP, HOSE
-
90610-504 HOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGER
-
108060-484 RIVETRIVET
-
118060-686 RIVETRIVET
-
128050-217 WASHERWASHER
-
138002-046 SCREW, CAPSCREW, CAP
-
141606-396 TANK, COOLANTTANK, COOLANT
-
150610-474 HOSE, COOLANT TANK/ENGINEHOSE, COOLANT TANK/ENGINE
-
160606-268 CAP, FILLER NECKCAP, FILLER NECK
-
170610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
170610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
182611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
191623-045 SPACERSPACER
-
200623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
210610-505 HOSE, COOLANT TANK/LEFT HEAT EXCHANGERHOSE, COOLANT TANK/LEFT HEAT EXCHANGER
-
220123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
230706-548 TAPE, FOILTAPE, FOIL
-
248041-366 NUT, LOCKNUT, LOCK
-
250707-716 GUIDE, ROPEGUIDE, ROPE
-
268002-045 SCREW, CAPSCREW, CAP
