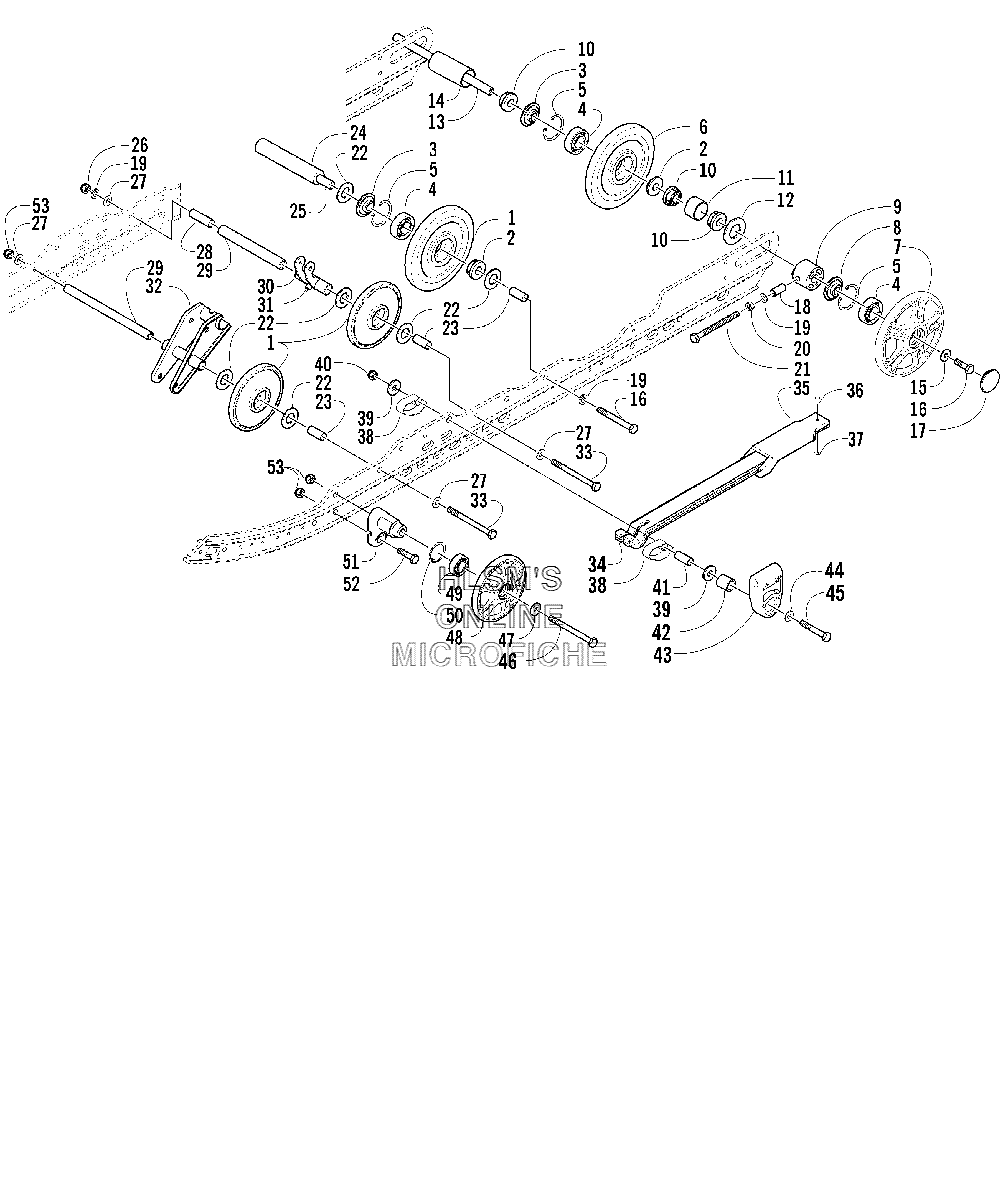

IDLER WHEEL ASSEMBLY для Arctic Cat PANTERA 800 EFI ESR - 2003 года выпуска
-
№АртикулНазвание
-
11604-684 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
21604-773 INSERT, WHEEL, OUTSIDEINSERT, WHEEL, OUTSIDE
-
31604-772 INSERT, WHEEL, INSIDEINSERT, WHEEL, INSIDE
-
40107-598 BEARINGBEARING
-
50123-798 RING, RETAININGRING, RETAINING
-
61604-685 WHEEL, IDLER (INC. 2, 5)WHEEL, IDLER (INC. 2, 5)
-
71604-694 WHEEL, IDLER (INC. 4, 5 AND 8)WHEEL, IDLER (INC. 4, 5 AND 8)
-
81604-774 INSERT, WHEELINSERT, WHEEL
-
90604-936 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
100604-968 BUSHING, SPACERBUSHING, SPACER
-
110604-937 SPACERSPACER
-
120623-220 WASHERWASHER
-
130604-208 AXLE WHEEL (REAR)AXLE WHEEL (REAR)
-
141604-107 SPACERSPACER
-
150123-570 WASHERWASHER
-
168002-223 SCREW, CAPSCREW, CAP
-
170604-246 CAP, IDLER WHEELCAP, IDLER WHEEL
-
180704-854 SPACERSPACER
-
198051-277 WASHER, LOCKWASHER, LOCK
-
208042-486 NUTNUT
-
210623-123 SCREW, CAPSCREW, CAP
-
220623-675 WASHERWASHER
-
231604-213 SPACERSPACER
-
241604-214 SPACERSPACER
-
250604-930 AXLEAXLE
-
260623-026 NUT, LOCKNUT, LOCK
-
270623-044 WASHERWASHER
-
280603-105 SPACERSPACER
-
291604-209 AXLE, STEELAXLE, STEEL
-
300704-589 PIVOT, SHOCK (INC. 31)PIVOT, SHOCK (INC. 31)
-
310623-922 FITTING, GREASEFITTING, GREASE
-
320704-396 BRACKET, MOUNTING FRONT SHOCKBRACKET, MOUNTING FRONT SHOCK
-
330623-907 SCREW, CAPSCREW, CAP
-
341604-457 SPO-RINGVERLOAD ASSEMBLY (INC. 35, 38)SPO-RINGVERLOAD ASSEMBLY (INC. 35, 38)
-
351604-378 BLOCK, WEARBLOCK, WEAR
-
368060-411 RIVETRIVET
-
370123-149 WASHERWASHER
-
381604-412 CLIP, RETAININGCLIP, RETAINING
-
390623-746 WASHERWASHER
-
408041-486 NUT, LOCKNUT, LOCK
-
410604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
421604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
-
431604-143 SLIDE, SPRINGSLIDE, SPRING
-
448050-282 WASHERWASHER
-
458002-231 SCREW, CAPSCREW, CAP
-
468002-232 SCREW, CAPSCREW, CAP
-
470623-664 WASHERWASHER
-
482604-196 WHEEL, IDLER (INC. 49, 50)WHEEL, IDLER (INC. 49, 50)
-
491604-847 BEARINGBEARING
-
500623-946 RING, RETAININGRING, RETAINING
-
511604-795 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
528002-224 SCREW, CAPSCREW, CAP
-
538040-486 NUT, LOCKNUT, LOCK
