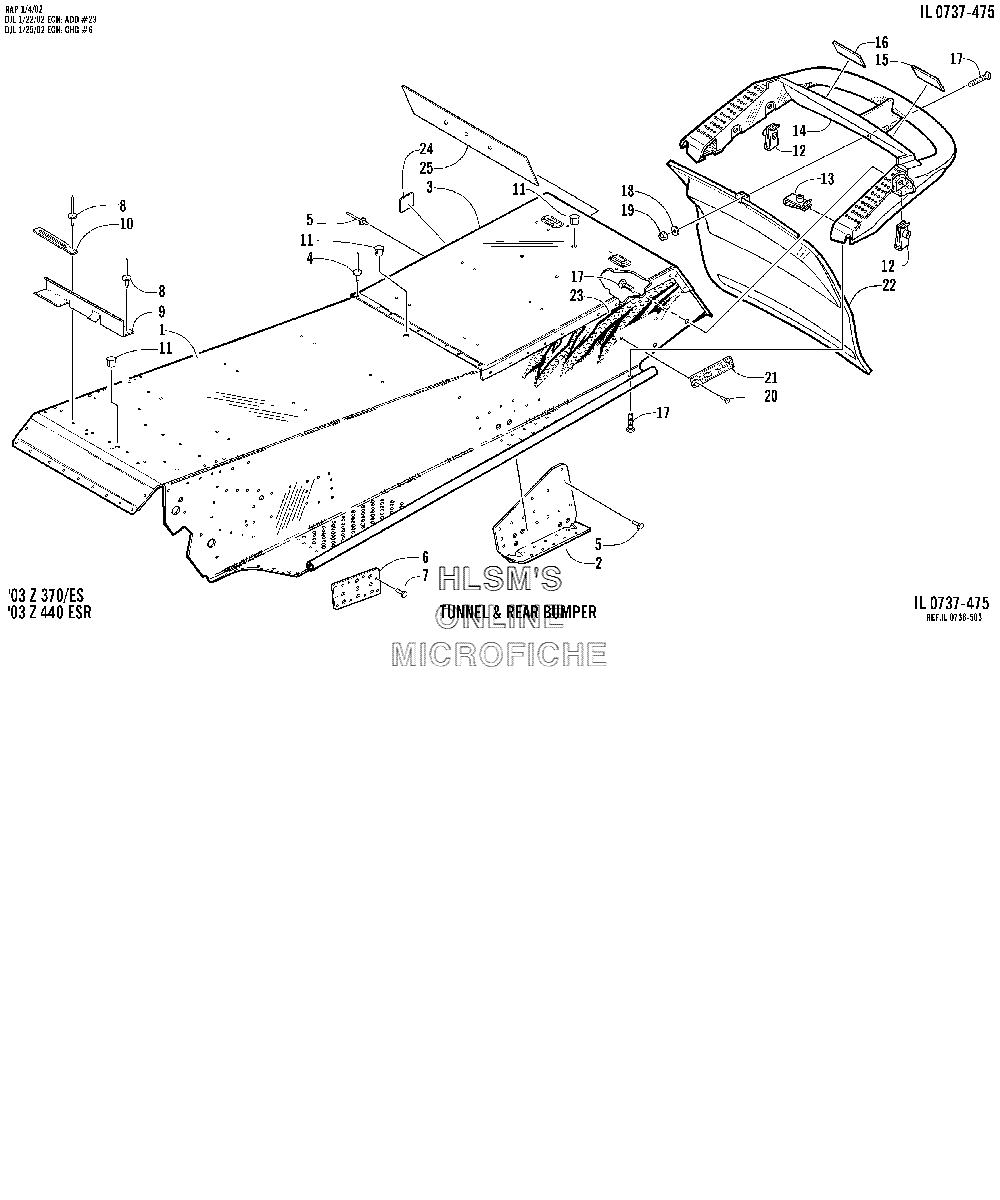

TUNNEL AND REAR BUMPER для Arctic Cat Z 440 ESR - 2003 года выпуска
-
№АртикулНазвание
-
11718-306 TUNNEL ASSEMBLY (INC. 2, 5)TUNNEL ASSEMBLY (INC. 2, 5)
-
21706-078 BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)BRACKET, SUSPENSION MOUNTING (RIGHT) (REAR)
-
21706-079 BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)BRACKET, SUSPENSION MOUNTING (LEFT) (REAR)
-
31606-497 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
48060-704 RIVETRIVET
-
50123-418 RIVET, SOLIDRIVET, SOLID
-
58060-506 RIVETRIVET
-
62706-111 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
70623-072 RIVET, SOLIDRIVET, SOLID
-
88060-486 RIVETRIVET
-
90607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
110623-562 PLUG, HOLEPLUG, HOLE
-
120623-771 NUT, UNUT, U
-
130623-427 NUT, UNUT, U
-
141606-200 BUMPER (REAR)BUMPER (REAR)
-
151611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
161611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
178017-580 SCREW, MACHINESCREW, MACHINE
-
188050-217 WASHERWASHER
-
198040-366 NUT, LOCKNUT, LOCK
-
200623-269 CLIP, RETAININGCLIP, RETAINING
-
210606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
221606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
234611-698 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
234611-699 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
240411-053 DECAL, CEDECAL, CE
-
254611-112 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
