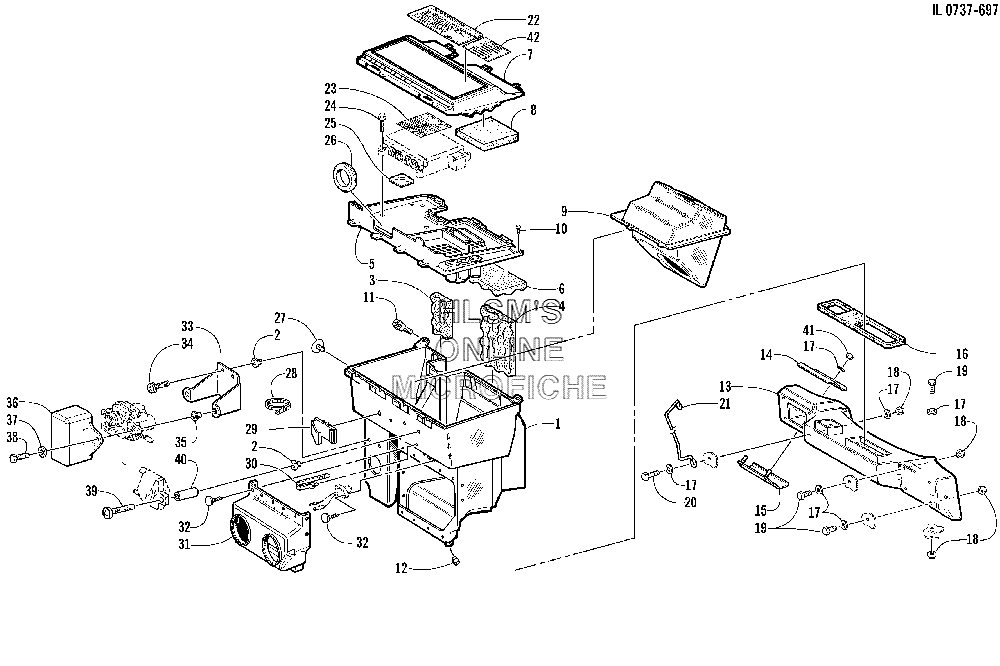

AIR SILENCER ASSEMBLY для Arctic Cat ZL 600 EFI SS (ESR BLACK) - 2003 года выпуска
-
№АртикулНазвание
-
10770-523 SILENCER, AIR, ASSY (INC. 2)SILENCER, AIR, ASSY (INC. 2)
-
20623-529 INSERTINSERT
-
30617-252 FOAM, AIR SILENCER, BACK MAGNETOFOAM, AIR SILENCER, BACK MAGNETO
-
40617-253 FOAM, AIR SILENCER, BACK PTOFOAM, AIR SILENCER, BACK PTO
-
51670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
60617-393 FOAM, AIR SILENCER, COVERFOAM, AIR SILENCER, COVER
-
71670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
80617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
90670-879 RESONATOR, Q, WAVERESONATOR, Q, WAVE
-
100623-882 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-780 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
121606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
131670-326 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
141706-898 PLATE, ADJUSTINGPLATE, ADJUSTING
-
152606-095 PLATE, BACKINGPLATE, BACKING
-
160617-245 SEAL, AIR SILENCER/PLENUMSEAL, AIR SILENCER/PLENUM
-
178050-222 WASHERWASHER
-
188041-366 NUT, LOCKNUT, LOCK
-
198002-039 SCREW, CAPSCREW, CAP
-
208002-041 SCREW, CAPSCREW, CAP
-
210707-705 BRACKET, GUARD, HARNESS/ROPEBRACKET, GUARD, HARNESS/ROPE
-
224611-616 DECAL, CLUTCHING CHARTDECAL, CLUTCHING CHART
-
233611-403 DECAL, FUEL DESIGNATIONDECAL, FUEL DESIGNATION
-
240623-785 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
252606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
261670-145 GROMMETGROMMET
-
270623-544 PLUG, HOLEPLUG, HOLE
-
280123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
290623-792 CLIP, PUSH, MOUNTCLIP, PUSH, MOUNT
-
300623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
311670-373 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
320623-165 CLIP, RETAININGCLIP, RETAINING
-
330770-618 PLATE, MOUNTINGPLATE, MOUNTING
-
340623-888 SCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHERSCREW, MACHINE W/EXTERNAL TOOTH LOCK WASHER
-
350623-582 INSERTINSERT
-
362606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
378050-212 WASHERWASHER
-
388002-044 SCREW, CAPSCREW, CAP
-
390623-835 SCREW, MACHINESCREW, MACHINE
-
400107-630 SPACERSPACER
-
418040-366 NUT, LOCKNUT, LOCK
-
425611-146 DECAL, CAUTION (ESR)DECAL, CAUTION (ESR)
