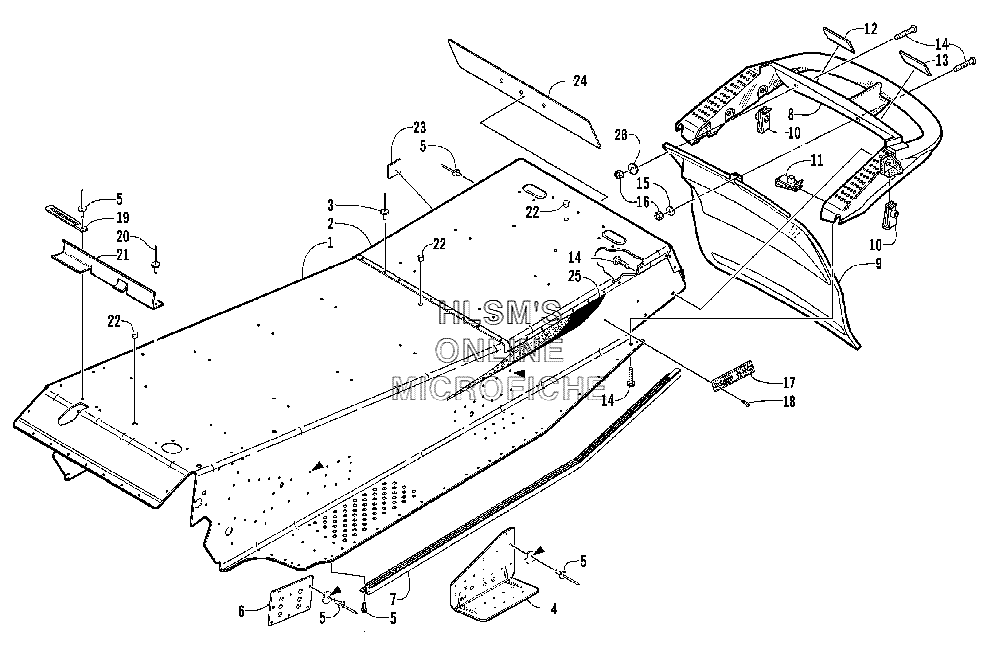

TUNNEL AND REAR BUMPER для Arctic Cat ZL 800 EFI ESR (ESR BLACK) - 2003 года выпуска
-
№АртикулНазвание
-
11718-348 TUNNEL ASSEMBLY (INC. 2, 5)TUNNEL ASSEMBLY (INC. 2, 5)
-
22606-867 PLATE, END TUNNEL (REAR)PLATE, END TUNNEL (REAR)
-
38060-704 RIVETRIVET
-
38060-484 RIVETRIVET
-
41706-902 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
41706-903 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
50123-418 RIVETRIVET
-
50623-072 RIVETRIVET
-
58060-506 RIVETRIVET
-
62706-116 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
72606-792 ROLL, TUNNEL (RIGHT)ROLL, TUNNEL (RIGHT)
-
72606-791 ROLL, TUNNEL (LEFT)ROLL, TUNNEL (LEFT)
-
81606-200 BUMPER (REAR)BUMPER (REAR)
-
91606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
100623-771 NUT, UNUT, U
-
110623-427 NUT, UNUT, U
-
121611-567 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
131611-566 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
148017-580 SCREW, MACHINESCREW, MACHINE
-
158050-217 WASHERWASHER
-
168040-366 NUT, LOCKNUT, LOCK
-
170606-029 REFLECTOR (REAR/RED)REFLECTOR (REAR/RED)
-
180623-269 CLIP, RETAININGCLIP, RETAINING
-
193002-964 CLAMP, WIRECLAMP, WIRE
-
200623-166 RIVETRIVET
-
210607-635 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
220623-562 PLUG, HOLEPLUG, HOLE
-
230411-053 DECAL, CEDECAL, CE
-
244611-112 DECAL, TUNNEL (REAR)DECAL, TUNNEL (REAR)
-
254611-580 DECAL, "ARCTIC CAT", TUNNEL (RIGHT)DECAL, "ARCTIC CAT", TUNNEL (RIGHT)
-
254611-579 DECAL, "ARCTIC CAT", TUNNEL (LEFT)DECAL, "ARCTIC CAT", TUNNEL (LEFT)
-
260623-184 WASHERWASHER
