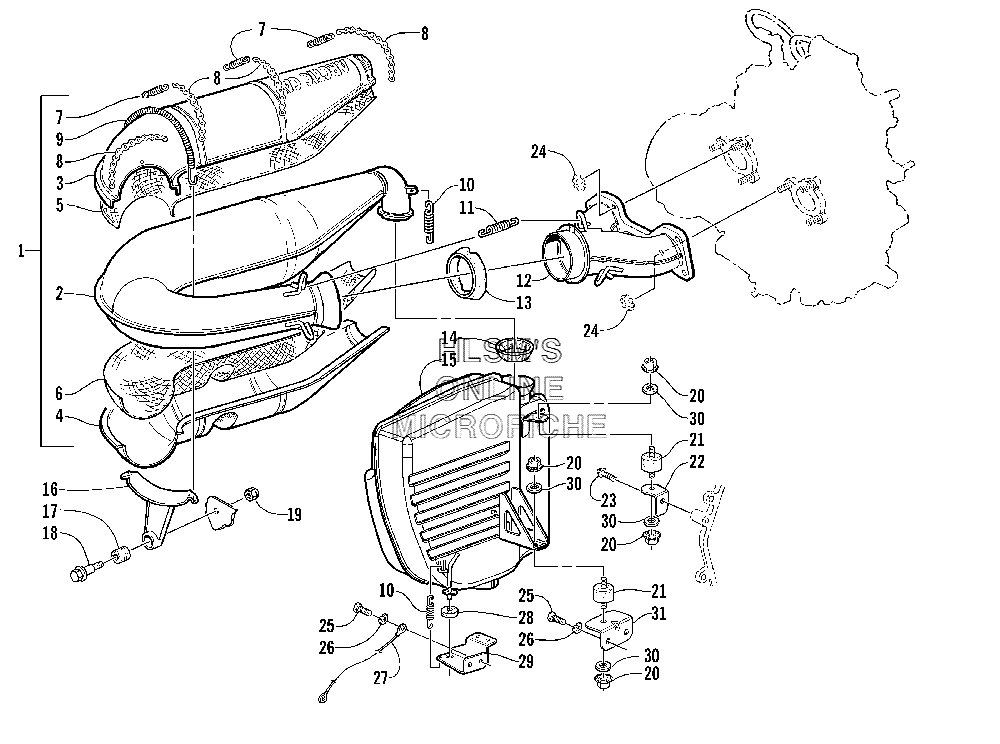

EXHAUST ASSEMBLY для Arctic Cat ZL 800 EFI ESR (ESR SILVER) - 2003 года выпуска
-
№АртикулНазвание
-
10712-424 EXPANSION CHAMBER ASSEMBLY (INC. 2, 8)EXPANSION CHAMBER ASSEMBLY (INC. 2, 8)
-
20712-387 CHAMBER, EXPANSIONCHAMBER, EXPANSION
-
31612-254 COVER (UPPER)COVER (UPPER)
-
41612-255 COVER (LOWER)COVER (LOWER)
-
51612-256 INSULATION (UPPER)INSULATION (UPPER)
-
61612-257 INSULATION (LOWER)INSULATION (LOWER)
-
71612-178 SPRING, EXTENSIONSPRING, EXTENSION
-
80624-526 TIE, PERFORATED BAND (5 FT)TIE, PERFORATED BAND (5 FT)
-
80624-541 TIE, PERFORATED BAND (25 FT)TIE, PERFORATED BAND (25 FT)
-
90612-027 SPRING, EXTENSIONSPRING, EXTENSION
-
100612-471 SPRING, EXHAUSTSPRING, EXHAUST
-
110612-820 SPRING, EXTENSIONSPRING, EXTENSION
-
120712-740 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
131612-014 GASKET, EXHAUSTGASKET, EXHAUST
-
140612-993 GASKET, EXHAUST, TAILPIPEGASKET, EXHAUST, TAILPIPE
-
150712-746 RESONATORRESONATOR
-
160712-845 BRACKET, SUPPORTBRACKET, SUPPORT
-
170612-107 BUSHING, RESONATOR, RUBBERBUSHING, RESONATOR, RUBBER
-
180623-856 SCREW, MACHINE, HEX SHOULDERSCREW, MACHINE, HEX SHOULDER
-
198040-366 NUT, LOCKNUT, LOCK
-
200623-961 NUT, HEX W/WASHERNUT, HEX W/WASHER
-
211612-321 SUPPORT, RESONATORSUPPORT, RESONATOR
-
220712-938 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
238020-134 SCREW, CAPSCREW, CAP
-
248053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
258002-040 SCREW, CAPSCREW, CAP
-
268051-217 WASHER, LOCKWASHER, LOCK
-
270686-126 WIRE, GROUNDWIRE, GROUND
-
281612-319 BUSHING, STEM, RESONATOR MOUNTINGBUSHING, STEM, RESONATOR MOUNTING
-
290712-834 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
-
308050-242 WASHERWASHER
-
310712-916 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
