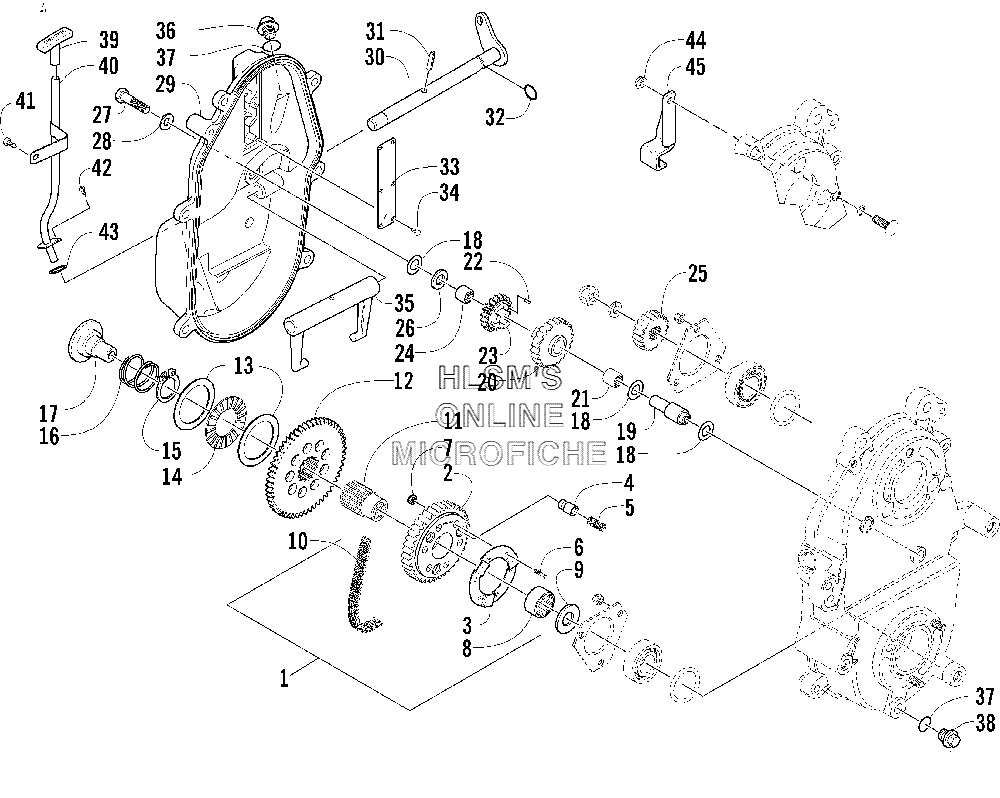

DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL) для Arctic Cat ZR 800 EFI (GREEN) - 2003 года выпуска

№

Артикул

Название
-

1639-926 REVERSE - 23:40/15W OPTIONAL KIT, HIGH ALT.

REVERSE - 23:40/15W OPTIONAL KIT, HIGH ALT.

0 ₽
1

0702-370 SPROCKET ASSEMBLY (39 TEETH) (INC. 2, 8)

SPROCKET ASSEMBLY (39 TEETH) (INC. 2, 8)

32 860 ₽
1

0702-394 SPROCKET ASSEMBLY (40 TEETH) (INC. 2, 8) (OVER 5, 000 FT ALT.)

SPROCKET ASSEMBLY (40 TEETH) (INC. 2, 8) (OVER 5, 000 FT ALT.)

54 490 ₽
3

0602-144 RETAINER, SPRING

RETAINER, SPRING

2 070 ₽
4

0602-133 PIN, SLIP

PIN, SLIP

2 700 ₽
5

0602-138 SPRING, COMPRESSION

SPRING, COMPRESSION

460 ₽
6

0623-182 SCREW, CAP

SCREW, CAP

40 ₽
7

0123-430 NUT, LOCK

NUT, LOCK

400 ₽
8

0602-016 BEARING

BEARING

3 530 ₽
9

0602-012 SPACER, SHAFT

SPACER, SHAFT

2 910 ₽
10

0602-972 CHAIN, 72P (15 WIDE)

CHAIN, 72P (15 WIDE)

21 210 ₽
11

1602-048 EXTENSION, DRIVESHAFT

EXTENSION, DRIVESHAFT

19 340 ₽
12

0702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)

GEAR, REVERSE (55 TEETH) (INC. 13, 15)

64 060 ₽
13

0602-023 WASHER, THRUST

WASHER, THRUST

2 280 ₽
14

0602-022 BEARING, THRUST

BEARING, THRUST

3 530 ₽
15

0602-024 RING, RETAINING

RING, RETAINING

610 ₽
16

0602-028 SPRING, RETURN

SPRING, RETURN

3 320 ₽
17

0638-881 RETAINER, SHAFT EXTENSION

RETAINER, SHAFT EXTENSION

8 310 ₽
18

0602-215 SPACER, REVERSE IDLER

SPACER, REVERSE IDLER

580 ₽
19

0602-872 SHAFT, REVERSE

SHAFT, REVERSE

16 840 ₽
20

0702-323 SPROCKET, IDLER (22 TEETH) (INC. 21)

SPROCKET, IDLER (22 TEETH) (INC. 21)

30 570 ₽
21

0602-205 BEARING, CAGED

BEARING, CAGED

5 610 ₽
22

0602-366 ALIGNER, IDLER, PIN

ALIGNER, IDLER, PIN

210 ₽
23

0702-365 IDLER, REVERSE ASSEMBLY (19 TEETH) (INC. 24)

IDLER, REVERSE ASSEMBLY (19 TEETH) (INC. 24)

26 620 ₽
24

1602-045 BEARING

BEARING

2 910 ₽
25

0602-974 SPROCKET (24 TEETH) (15 WIDE)

SPROCKET (24 TEETH) (15 WIDE)

13 930 ₽
25

1602-118 SPROCKET (23 TEETH) (15 WIDE) (OVER 5, 000 FT ALT.)

SPROCKET (23 TEETH) (15 WIDE) (OVER 5, 000 FT ALT.)

12 680 ₽
26

1602-044 WASHER, THRUST

WASHER, THRUST

2 070 ₽
27

8002-130 SCREW, CAP

SCREW, CAP

110 ₽
28

8050-242 WASHER

WASHER

310 ₽
29

1602-222 COVER, DROPCASE

COVER, DROPCASE

23 710 ₽
30

0702-350 SHAFT, SHIFT FORK

SHAFT, SHIFT FORK

12 680 ₽
31

0623-542 PIN, SPRING

PIN, SPRING

290 ₽
32

0602-021 SEAL, O-RING

SEAL, O-RING

90 ₽
33

1602-151 COVER, OIL VENT

COVER, OIL VENT

5 610 ₽
34

0623-081 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING

40 ₽
35

0602-085 FORK, SHIFT

FORK, SHIFT

14 350 ₽
36

0623-293 PLUG, DRAIN (ONE INCLUDED IN KIT)

PLUG, DRAIN (ONE INCLUDED IN KIT)

400 ₽
37

1602-213 O-RING

O-RING

60 ₽
38

0602-479 PLUG, DRAIN, MAGNETIC

PLUG, DRAIN, MAGNETIC

3 320 ₽
39

1602-107 STICK, OIL LEVEL

STICK, OIL LEVEL

7 690 ₽
40

1602-106 TUBE, OIL LEVEL STICK

TUBE, OIL LEVEL STICK

5 190 ₽
41

0623-640 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING

170 ₽
42

0623-786 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING

270 ₽
43

0605-014 O, O-RINGIL LEVEL STICK TUBE

O, O-RINGIL LEVEL STICK TUBE

40 ₽
44

0623-122 NUT, LOCK

NUT, LOCK

230 ₽
45

0602-900 BRACKET, CHAIN BACKING

BRACKET, CHAIN BACKING

16 430 ₽
