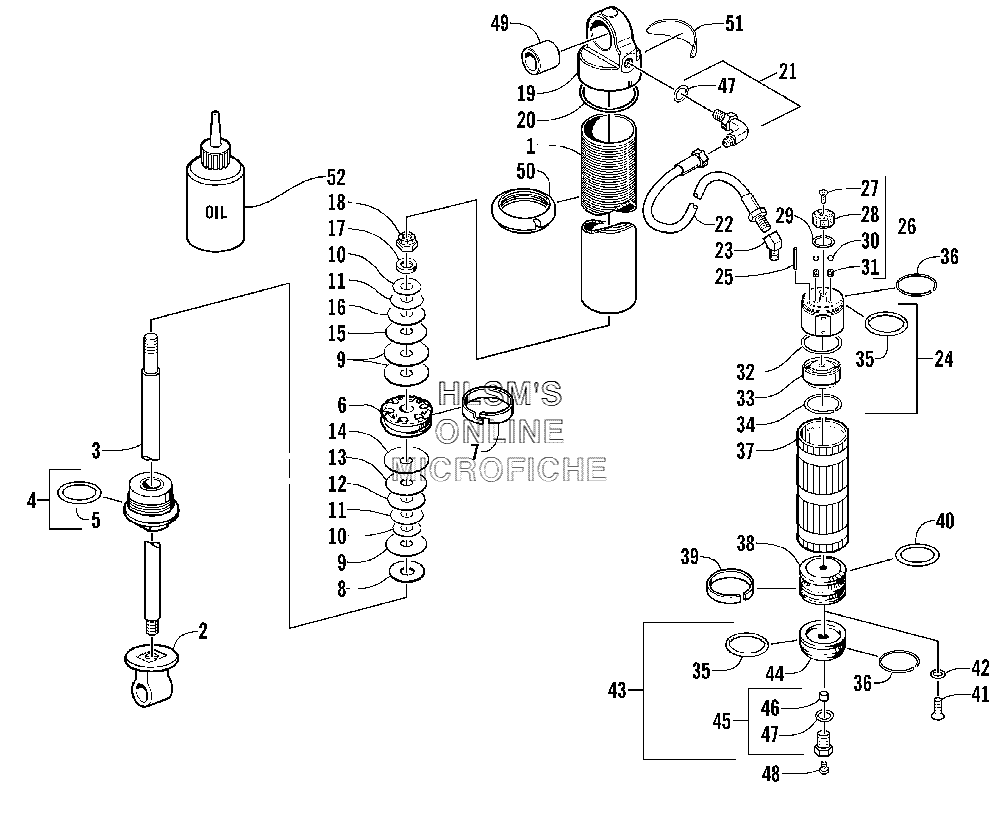

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 800 EFI SNO PRO (BLACK) - 2003 года выпуска
-
№АртикулНазвание
-
-0704-635 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11603-318 BODY, SHOCKBODY, SHOCK
-
21604-796 EYELET, SHOCKEYELET, SHOCK
-
31603-319 ROD, SHOCKROD, SHOCK
-
40704-386 END CAP, SHOCK (INC. 5)END CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
60603-952 PISTON, 0.059 IN., ORIFICEPISTON, 0.059 IN., ORIFICE
-
71604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
81604-272 WASHER, TOP OUTWASHER, TOP OUT
-
91603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
101603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
111603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
121603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
131603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
141603-136 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
151603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
161603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
171604-273 WASHER, BACKUPWASHER, BACKUP
-
180623-696 NUT, LOCKNUT, LOCK
-
191604-294 END CAP, SHOCKEND CAP, SHOCK
-
201604-280 O-RINGO-RING
-
211604-533 FITTING, ELBOW (INC. ONE NO. 47)FITTING, ELBOW (INC. ONE NO. 47)
-
221604-532 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
231604-534 FITTING, ELBOW, 45FITTING, ELBOW, 45
-
240703-541 END CAP, RESERVOIR BODY (INC. 25, 34 AND ONE NO. 35)END CAP, RESERVOIR BODY (INC. 25, 34 AND ONE NO. 35)
-
251603-406 PIN, INNERDICATOR KNOBPIN, INNERDICATOR KNOB
-
261703-001 KNOB, ADJUSTER, ASSEMBLY (INC. 27, 31)KNOB, ADJUSTER, ASSEMBLY (INC. 27, 31)
-
270603-977 SCREW, MACHINESCREW, MACHINE
-
280603-976 KNOB, ADJUSTERKNOB, ADJUSTER
-
290603-975 O-RINGO-RING
-
300603-974 BALL, DETENTBALL, DETENT
-
310603-973 SPRINGSPRING
-
320603-970 O-RINGO-RING
-
330703-542 OIL RELIEF, 2, PORT, ASSEMBLYOIL RELIEF, 2, PORT, ASSEMBLY
-
340603-984 RETAINERRETAINER
-
350603-968 O-RINGO-RING
-
360603-985 RETAINER, END CAPRETAINER, END CAP
-
371603-315 BODY, RESERVOIRBODY, RESERVOIR
-
380603-986 PISTON, RESERVOIRPISTON, RESERVOIR
-
390603-988 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
400603-987 O-RINGO-RING
-
410623-697 SCREW, PISTONSCREW, PISTON
-
420423-182 O-RINGO-RING
-
430703-540 END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 35 AND 44, 47)END CAP, RESERVOIR, ASSEMBLY (INC. ONE NO. 35 AND 44, 47)
-
440603-989 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
450704-383 VALVE, PRESSURE, ASSEMBLY (INC. 46 AND ONE NO. 47)VALVE, PRESSURE, ASSEMBLY (INC. 46 AND ONE NO. 47)
-
471604-284 O-RING, VALVEO-RING, VALVE
-
480624-433 SCREW, MACHINESCREW, MACHINE
-
491604-791 BUSHING, SHOCKBUSHING, SHOCK
-
500603-960 NUT, ADJUSTER, SHOCKNUT, ADJUSTER, SHOCK
-
513611-007 DECAL, WARNINGDECAL, WARNING
-
521639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
