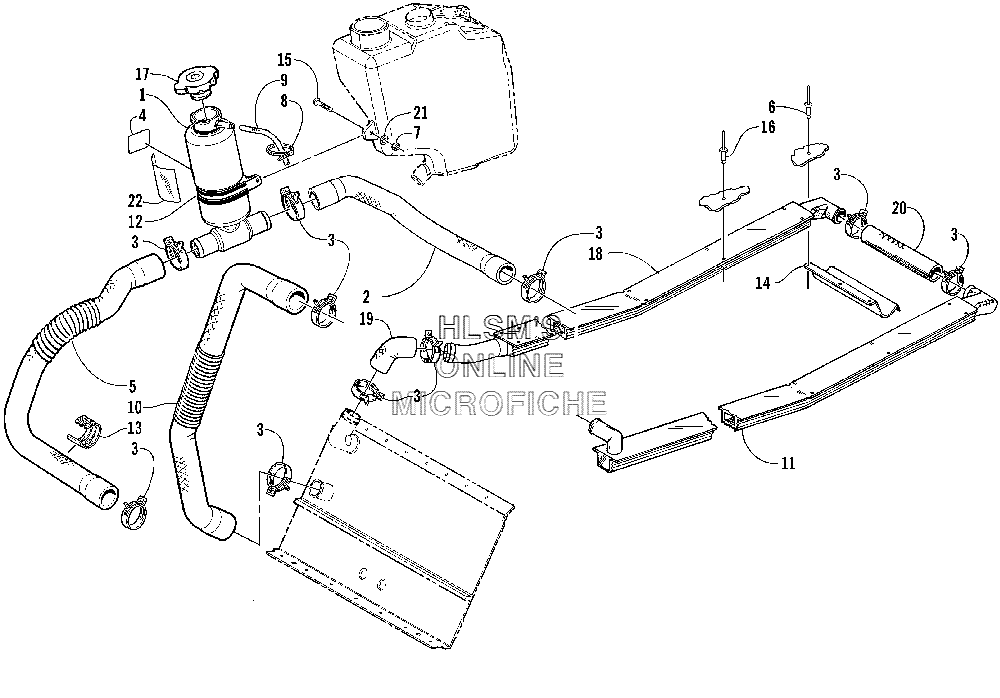

COOLING ASSEMBLY для Arctic Cat ZR 900 (BLACK) - 2003 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/LEFT HEAT EXCHANGERHOSE, COOLANT TANK/LEFT HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
50610-427 HOSE, ENGINE/COOLANT TANKHOSE, ENGINE/COOLANT TANK
-
68060-484 RIVETRIVET
-
78040-366 NUT, LOCKNUT, LOCK
-
80123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
90610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
90610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
100610-426 HOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT, ENGINE/FRONT HEAT EXCHANGER
-
110716-921 HEAT EXCHANGER TUBE (LEFT)HEAT EXCHANGER TUBE (LEFT)
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
140616-810 GUARD, COOLANT HOSEGUARD, COOLANT HOSE
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168060-706 RIVETRIVET
-
170606-268 CAP, FILLER NECKCAP, FILLER NECK
-
180716-920 HEAT EXCHANGER TUBE (RIGHT)HEAT EXCHANGER TUBE (RIGHT)
-
190610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/RIGHT HEAT EXCHANGER
-
200610-215 HOSE, COOLANT (REAR)HOSE, COOLANT (REAR)
-
218050-217 WASHERWASHER
-
220706-548 TAPE, FOILTAPE, FOIL
