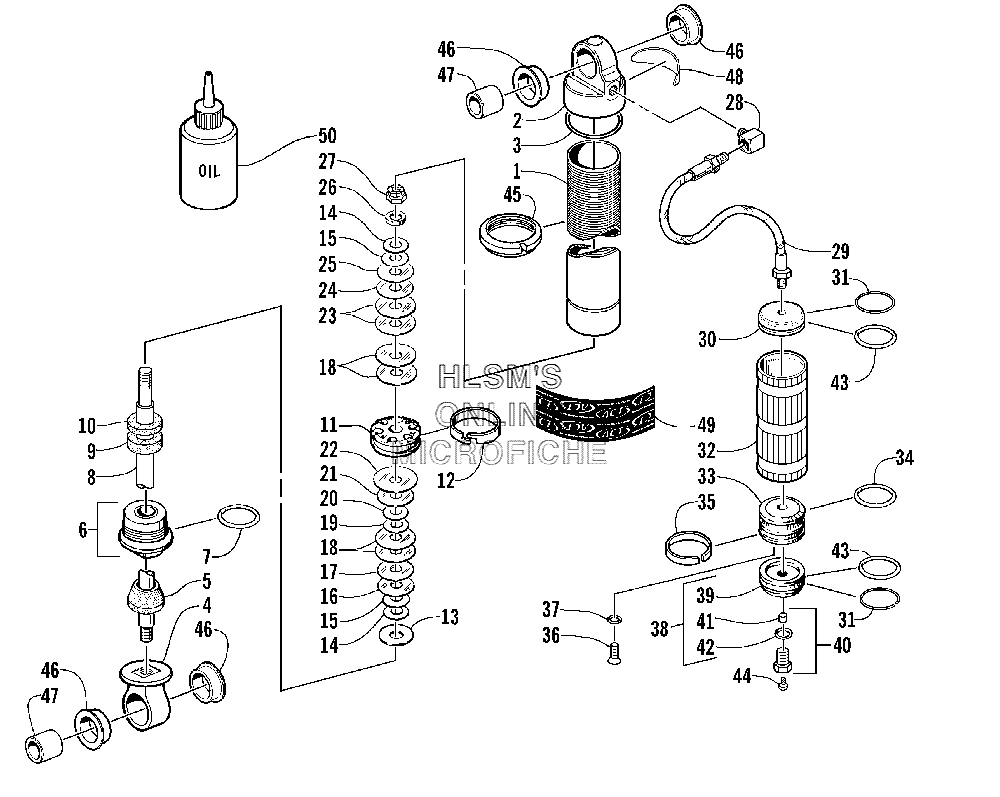

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 900 SNO PRO (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
-0703-996 COMPLETE SHOCK ABSORBER (RIGHT)COMPLETE SHOCK ABSORBER (RIGHT)
-
-0703-997 COMPLETE SHOCK ABSORBER (LEFT)COMPLETE SHOCK ABSORBER (LEFT)
-
11603-308 BODY, SHOCKBODY, SHOCK
-
20603-963 END CAP, SHOCKEND CAP, SHOCK
-
31604-280 O-RING, END CAPO-RING, END CAP
-
41603-615 EYELET, SHOCKEYELET, SHOCK
-
50603-991 BUMPER, SHOCKBUMPER, SHOCK
-
60704-382 END CAP, SHOCK (INC. 7)END CAP, SHOCK (INC. 7)
-
71604-271 O-RINGO-RING
-
81603-305 ROD, SHOCKROD, SHOCK
-
91604-364 SPACER, SHAFTSPACER, SHAFT
-
101604-511 SPACER, SHAFTSPACER, SHAFT
-
111603-875 PISTON, 0.081 IN., ORIFICEPISTON, 0.081 IN., ORIFICE
-
121604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
131604-272 WASHER, TOP OUTWASHER, TOP OUT
-
142603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
152603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
162603-074 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
172603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
182603-122 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
192603-044 VALVE, 0.700 X 0.008 IN.VALVE, 0.700 X 0.008 IN.
-
202603-062 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
212603-092 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
222603-132 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
232603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
242603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
252603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
261604-273 WASHER, BACKUPWASHER, BACKUP
-
270623-696 NUT, LOCKNUT, LOCK
-
280603-964 FITTING, ELBOWFITTING, ELBOW
-
290603-965 HOSE, RESERVOIR/SHOCKHOSE, RESERVOIR/SHOCK
-
301604-728 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
310603-985 RETAINER, END CAPRETAINER, END CAP
-
321603-315 BODY, RESERVOIRBODY, RESERVOIR
-
330603-986 PISTON, RESERVOIRPISTON, RESERVOIR
-
340603-987 O-RINGO-RING
-
350603-988 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
360623-697 SCREW, PISTONSCREW, PISTON
-
370423-182 O-RINGO-RING
-
380703-540 END CAP, RESERVOIR, ASSEMBLY (INC. 39, 42 AND ONE NO. 43)END CAP, RESERVOIR, ASSEMBLY (INC. 39, 42 AND ONE NO. 43)
-
390603-989 END CAP, RESERVOIR BODYEND CAP, RESERVOIR BODY
-
400704-383 VALVE, PRESSURE (INC. 41, 42)VALVE, PRESSURE (INC. 41, 42)
-
421604-284 O-RING, VALVEO-RING, VALVE
-
430603-968 O-RINGO-RING
-
440624-433 SCREW, MACHINESCREW, MACHINE
-
450603-960 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
460603-955 BUSHING, SHOCKBUSHING, SHOCK
-
471603-209 SLEEVE, EYELETSLEEVE, EYELET
-
483611-007 DECAL, WARNINGDECAL, WARNING
-
494611-332 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
501639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
