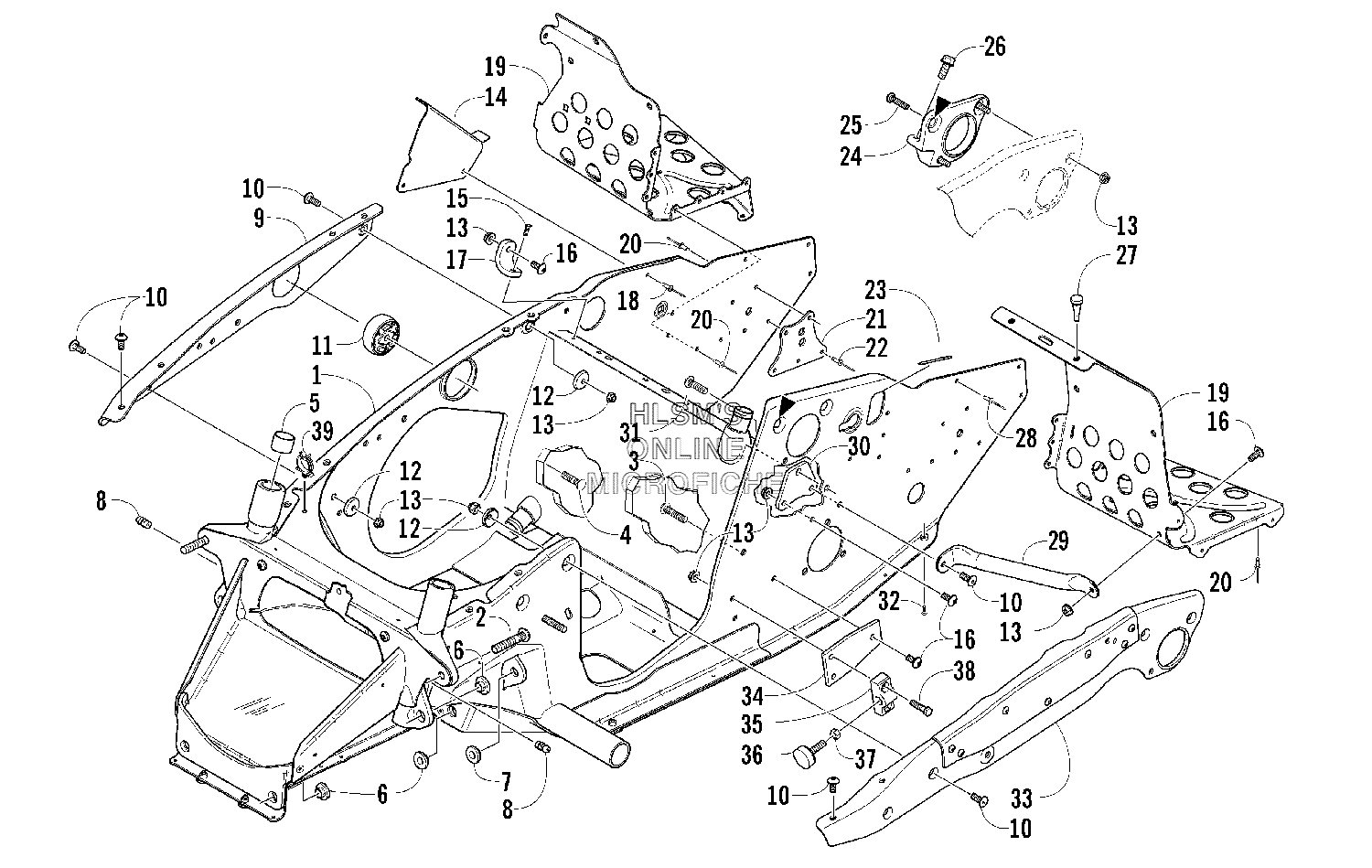

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Firecat 600 (Black) - 2004 года выпуска
-
№АртикулНазвание
-
10707-818 CHASSIS, ASSEMBLY (INC. 2, 8)CHASSIS, ASSEMBLY (INC. 2, 8)
-
21623-019 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31623-020 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
41623-212 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
50675-161 BEARINGBEARING
-
60607-657 BUSHING A, ARM MOUNT (LOWER)BUSHING A, ARM MOUNT (LOWER)
-
70607-656 BUSHING A, ARM MOUNT (UPPER)BUSHING A, ARM MOUNT (UPPER)
-
81623-010 FITTING, GREASEFITTING, GREASE
-
93606-106 BRACE, SIDE PLATEBRACE, SIDE PLATE
-
108017-580 SCREW, MACHINESCREW, MACHINE
-
110608-364 MOUNT, ENGINEMOUNT, ENGINE
-
120623-943 WASHER, CUPWASHER, CUP
-
138048-366 NUT, LOCKNUT, LOCK
-
142606-906 GUARD, HOSEGUARD, HOSE
-
151623-115 SCREWSCREW
-
168017-579 SCREW, MACHINESCREW, MACHINE
-
172606-908 SUPPORT, SIDE PLATESUPPORT, SIDE PLATE
-
188060-684 RIVETRIVET
-
192606-958 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
192606-959 FOOTREST (LEFT)FOOTREST (LEFT)
-
200623-282 RIVETRIVET
-
212706-151 PLATE, BACKINGPLATE, BACKING
-
220623-341 RIVETRIVET
-
230706-371 TRIMTRIM
-
240708-433 BRACKET, BEARING SUPPORT (INC. 25)BRACKET, BEARING SUPPORT (INC. 25)
-
250623-117 BOLT, STUD, RIBBEDBOLT, STUD, RIBBED
-
260623-190 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
273606-178 BUMPERBUMPER
-
281623-130 RIVETRIVET
-
292706-517 TUBE, BELT GUARDTUBE, BELT GUARD
-
300607-725 PLATE, BACKINGPLATE, BACKING
-
311623-167 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
321623-018 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
332706-560 BRACE, SIDE PLATEBRACE, SIDE PLATE
-
342606-939 PLATE, MOUNTING, TORQUE BUMPER, ENGINEPLATE, MOUNTING, TORQUE BUMPER, ENGINE
-
350704-352 MOUNT, TORQUE BUMPER, ENGINEMOUNT, TORQUE BUMPER, ENGINE
-
360608-396 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
378042-486 NUTNUT
-
388002-042 SCREW, CAPSCREW, CAP
-
391623-171 CLIPCLIP
