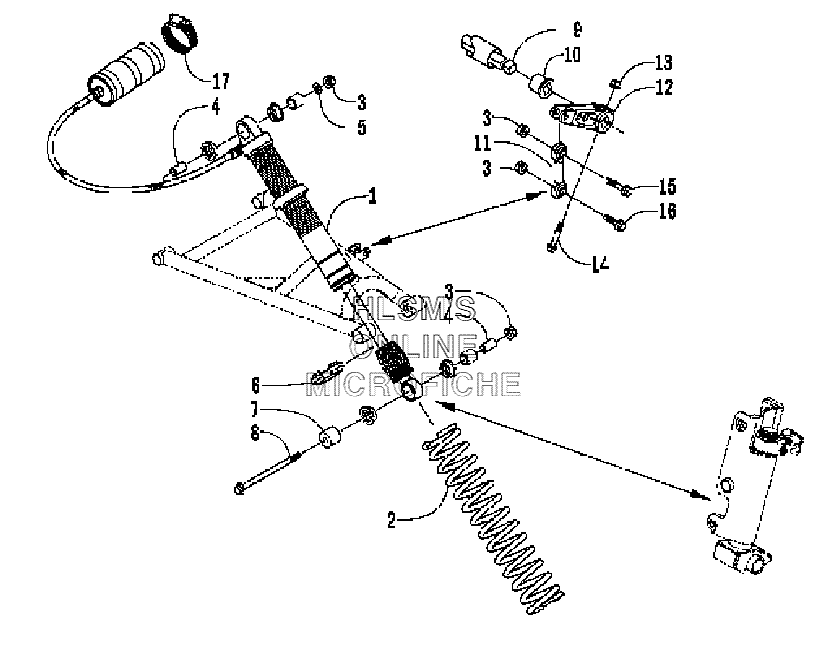

SHOCK ABSORBER AND SWAY BAR ASSEMBLY для Arctic Cat Firecat 600 EFI Sno Pro 1'' International (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11703-484 SHOCK, SKI (RIGHT)SHOCK, SKI (RIGHT)
-
11703-485 SHOCK, SKI (LEFT)SHOCK, SKI (LEFT)
-
21703-556 SPRING, COMPRESSIONSPRING, COMPRESSION
-
38048-486 NUT, LOCKNUT, LOCK
-
41603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
50623-991 WASHERWASHER
-
61603-890 RETAINER, SPRINGRETAINER, SPRING
-
70603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
88020-232 SCREW, CAPSCREW, CAP
-
91703-144 SWAY BARSWAY BAR
-
101603-211 BEARINGBEARING
-
111603-002 LINK, SWAY BARLINK, SWAY BAR
-
120603-558 ARM, SWAY BARARM, SWAY BAR
-
138048-426 NUT, LOCKNUT, LOCK
-
148020-137 SCREW, CAPSCREW, CAP
-
158020-225 SCREW, CAPSCREW, CAP
-
168020-224 SCREW, CAPSCREW, CAP
-
170214-025 CLAMP, RESERVOIRCLAMP, RESERVOIR
